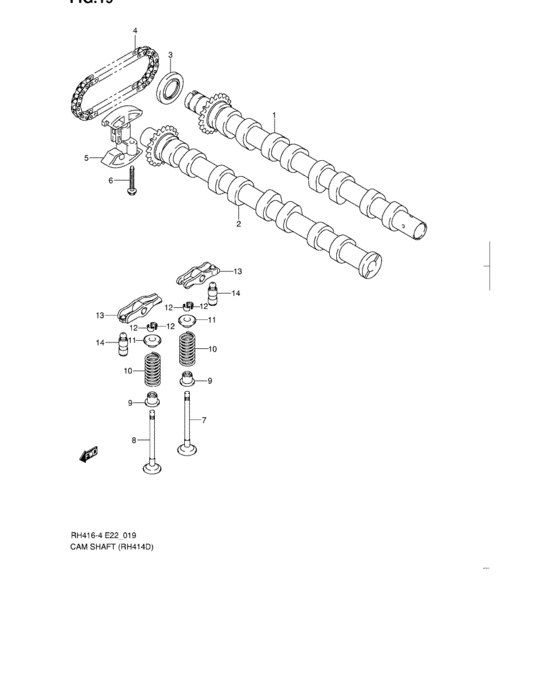

Cam shaft/valve (RH414D)
14
| # | OEM | Part name |
|---|
| 1 |
12711-73J00-000 |
Camshaft, intake |
| 2 |
12721-73J00-000 |
Camshaft, exhaust |
| 3 |
12746-73J00-000 |
Seal, camshaft oil |
| 4 |
12762-73J00-000 |
Chain, camshaft |
| 5 |
12832-73J00-000 |
Tensioner, Timing Chain |
| 6 |
11164-67G00-000 |
BOLT,6X36 |
| 7 |
12911-73J00-000 |
Valve, Intake |
| 8 |
12915-73J00-000 |
Valve, Exhaust |
| 9 |
12919-73J00-000 |
Seal, valve stem |
| 10 |
12921-73J00-000 |
Spring, valve |
| 11 |
12931-73J00-000 |
Retainer, spring |
| 12 |
12932-73J00-000 |
Cotter, valve |
| 13 |
12841-73J00-000 |
Arm set, valve rocker |
| 14 |
12891-67G01-000 |
ADJUSTER,HYDR VALVE |
| OEM |
Part name |
Category |
| 11164-67G00-000 |
BOLT,6X36 |
Cam shaft/valve (RH414D) |
| 12711-73J00-000 |
Camshaft, intake |
Cam shaft/valve (RH414D) |
| 12721-73J00-000 |
Camshaft, exhaust |
Cam shaft/valve (RH414D) |
| 12746-73J00-000 |
Seal, camshaft oil |
Cam shaft/valve (RH414D) |
| 12762-73J00-000 |
Chain, camshaft |
Cam shaft/valve (RH414D) |
| 12832-73J00-000 |
Tensioner, Timing Chain |
Cam shaft/valve (RH414D) |
| 12841-73J00-000 |
Arm set, valve rocker |
Cam shaft/valve (RH414D) |
| 12891-67G01-000 |
ADJUSTER,HYDR VALVE |
Cam shaft/valve (RH414D) |
| 12911-73J00-000 |
Valve, Intake |
Cam shaft/valve (RH414D) |
| 12915-73J00-000 |
Valve, Exhaust |
Cam shaft/valve (RH414D) |
| 12919-73J00-000 |
Seal, valve stem |
Cam shaft/valve (RH414D) |
| 12921-73J00-000 |
Spring, valve |
Cam shaft/valve (RH414D) |
| 12931-73J00-000 |
Retainer, spring |
Cam shaft/valve (RH414D) |
| 12932-73J00-000 |
Cotter, valve |
Cam shaft/valve (RH414D) |
