Search › Model › RH413
RH413

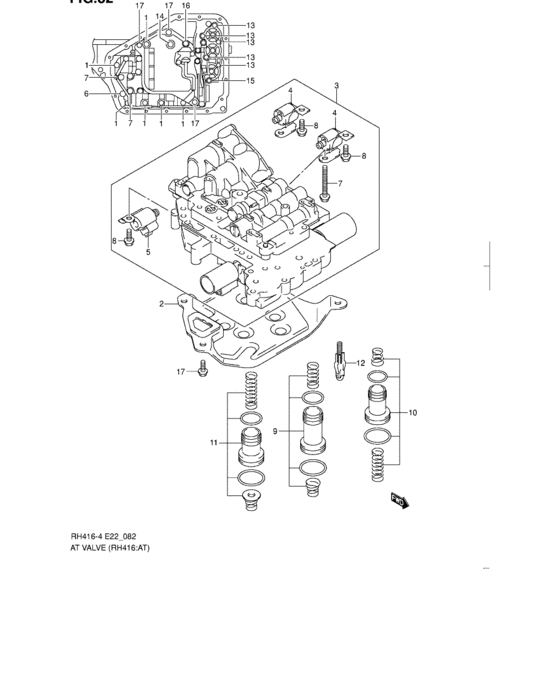

At valve (RH416:AT) 15
| # | OEM | Part name |
|---|---|---|
| 1 | 26443-60G10-000 | Bolt |
| 2 | 26445-79C10-000 | STRAINER ASSY,OIL |
| 3 | 26500-68J10-000 | Body assy,t/m valve |
| 3 | 26500-68J11-000 | BODY ASSY,T/M VALVE |
| 4 | 26523-55G10-000 | SOLENOID ASSY,SHIFT NO.1&2 |
| 5 | 26525-55G10-000 | SOLENOID ASSY,TIMING |
| 6 | 29971-65D10-000 | Bolt |
| 7 | 29972-79C10-000 | BOLT,VALVE BODY |
| 9 | 26541-55GT0-000 | PISTON SET,C-1 ACC |
| 10 | 26542-79CT0-000 | PISTON SET,B-1 ACC |
| 11 | 26543-55GT0-000 | PISTON SET,C-2 ACC |
| 12 | 26547-55GT0-000 | VALVE SET,COOLER CHECK |
| 13 | 29971-57B00-000 | Bolt |
| 15 | 29971-79C10-000 | BOLT,VALVE BODY |
| 17 | 26449-65G10-000 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 26443-60G10-000 | Bolt | At valve (RH416:AT) |
| 26445-79C10-000 | STRAINER ASSY,OIL | At valve (RH416:AT) |
| 26449-65G10-000 | Bolt | At valve (RH416:AT) |
| 26500-68J10-000 | Body assy,t/m valve | At valve (RH416:AT) |
| 26500-68J11-000 | BODY ASSY,T/M VALVE | At valve (RH416:AT) |
| 26523-55G10-000 | SOLENOID ASSY,SHIFT NO.1&2 | At valve (RH416:AT) |
| 26525-55G10-000 | SOLENOID ASSY,TIMING | At valve (RH416:AT) |
| 26541-55GT0-000 | PISTON SET,C-1 ACC | At valve (RH416:AT) |
| 26542-79CT0-000 | PISTON SET,B-1 ACC | At valve (RH416:AT) |
| 26543-55GT0-000 | PISTON SET,C-2 ACC | At valve (RH416:AT) |
| 26547-55GT0-000 | VALVE SET,COOLER CHECK | At valve (RH416:AT) |
| 29971-57B00-000 | Bolt | At valve (RH416:AT) |
| 29971-65D10-000 | Bolt | At valve (RH416:AT) |
| 29971-79C10-000 | BOLT,VALVE BODY | At valve (RH416:AT) |
| 29972-79C10-000 | BOLT,VALVE BODY | At valve (RH416:AT) |
