Search › Model › RH413
RH413

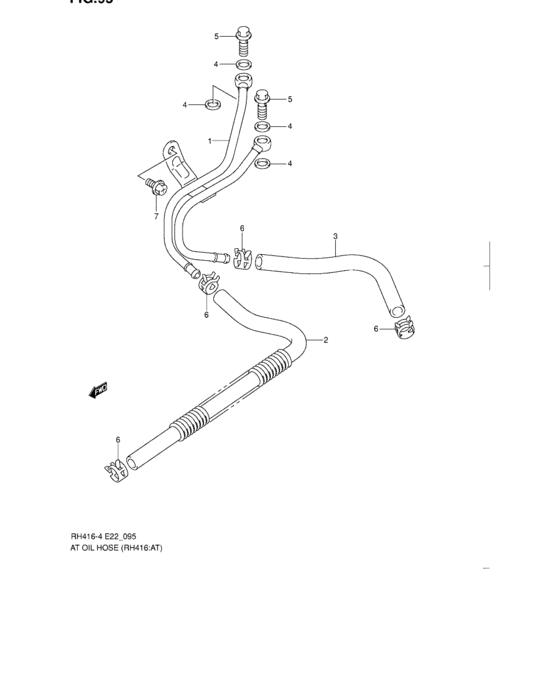

At oil hose (RH416:AT) 7
| # | OEM | Part name |
|---|---|---|
| 1 | 22911-55G10-000 | PIPE,OIL COOLER |
| 2 | 22931-55G10-000 | HOSE,OIL COOLER INLET |
| 3 | 22932-55G10-000 | HOSE,OIL COOLER OUTLET |
| 4 | 22913-63J10-000 | GASKET,OIL PIPE UNION BOLT |
| 5 | 09360-10055-000 | UNION - Bolt, oil pipe union |
| 6 | 09401-15408-000 | CLIP - Clip, 2nd air cleaner hose no.2 |
| 7 | 02162-0612A-000 | SCREW - Bolt, bracket |
| OEM | Part name | Category |
|---|---|---|
| 02162-0612A-000 | SCREW - Bolt, bracket | At oil hose (RH416:AT) |
| 09360-10055-000 | UNION - Bolt, oil pipe union | At oil hose (RH416:AT) |
| 09401-15408-000 | CLIP - Clip, 2nd air cleaner hose no.2 | At oil hose (RH416:AT) |
| 22911-55G10-000 | PIPE,OIL COOLER | At oil hose (RH416:AT) |
| 22913-63J10-000 | GASKET,OIL PIPE UNION BOLT | At oil hose (RH416:AT) |
| 22931-55G10-000 | HOSE,OIL COOLER INLET | At oil hose (RH416:AT) |
| 22932-55G10-000 | HOSE,OIL COOLER OUTLET | At oil hose (RH416:AT) |
