RH413

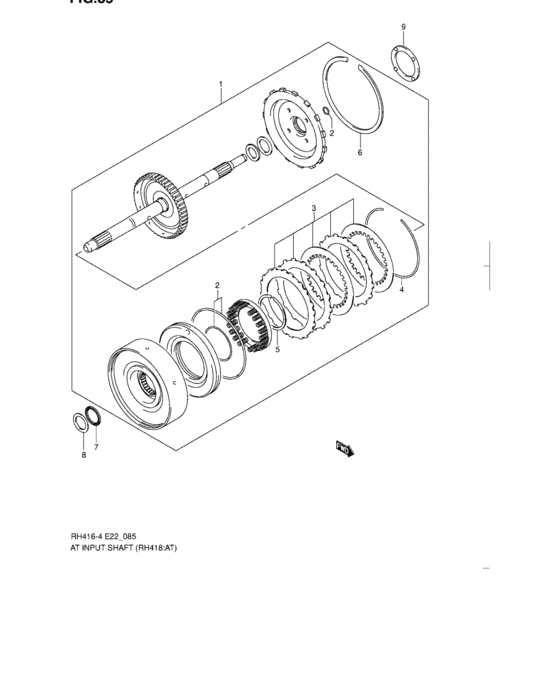

At input shaft (RH418:AT) 9
| # | OEM | Part name |
|---|---|---|
| 1 | 24111-54GT0-000 | SHAFT SET,INPUT |
| 2 | 26813-65GT0-000 | O-RING SET,REVERSE CLUTCH |
| 3 | 26819-54GT0-000 | PLATE SET,REV CLUTCH |
| 4 | 26817-60G10-000 | RING,REVERSE CLUTCH SNAP |
| 5 | 26823-65G10-000 | RING,REV CL RETAINING |
| 6 | 24192-65G10-000 | RING,SUN GEAR INPUT SNAP |
| 7 | 24174-60G10-000 | BEARING,INPUT SHAFT THRUST FR |
| 8 | 24175-54G10-000 | RACE,INPSHT FR BRG |
| 9 | 26825-60G10-000 | WASHER,REV CL THRUST RR |
| OEM | Part name | Category |
|---|---|---|
| 24111-54GT0-000 | SHAFT SET,INPUT | At input shaft (RH418:AT) |
| 24174-60G10-000 | BEARING,INPUT SHAFT THRUST FR | At input shaft (RH418:AT) |
| 24175-54G10-000 | RACE,INPSHT FR BRG | At input shaft (RH418:AT) |
| 24192-65G10-000 | RING,SUN GEAR INPUT SNAP | At input shaft (RH418:AT) |
| 26813-65GT0-000 | O-RING SET,REVERSE CLUTCH | At input shaft (RH418:AT) |
| 26817-60G10-000 | RING,REVERSE CLUTCH SNAP | At input shaft (RH418:AT) |
| 26819-54GT0-000 | PLATE SET,REV CLUTCH | At input shaft (RH418:AT) |
| 26823-65G10-000 | RING,REV CL RETAINING | At input shaft (RH418:AT) |
| 26825-60G10-000 | WASHER,REV CL THRUST RR | At input shaft (RH418:AT) |
