RH32

Toyota HIACE · 1977 · 4,113 parts · 157 categories

4,113 items

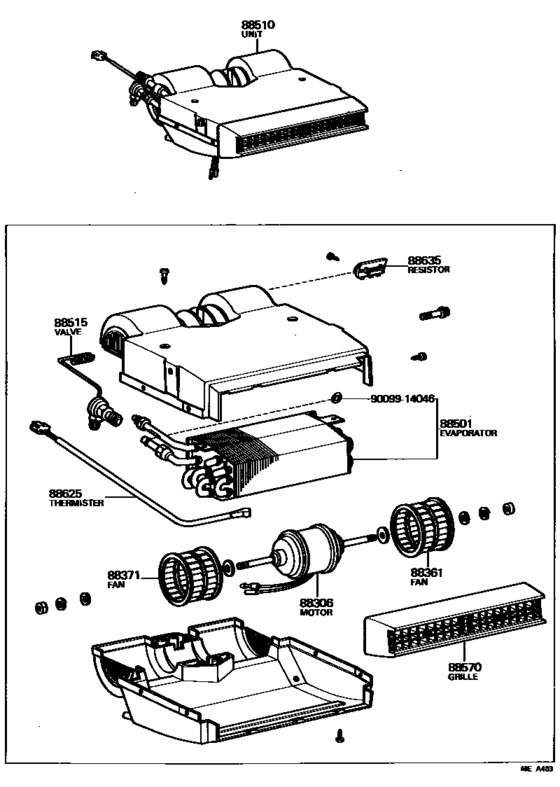

Heating & Air Conditioning - Cooler Unit ([12.1979 - ] (7912- )RH11,20,22,3#..ARL,GEN) 20

#	OEM	Part name
88306	88550-30300	Motor Sub-Assy, Cooler Blower, No.1
88306	88550-95A01	Motor Sub-Assy, Cooler Blower, No.1
88361	88541-10010	Fan, Cooler Blower, No.1
88371	88541-10020	Fan, Cooler Blower, No.2
88501	88501-30530	Evaporator Sub-Assy, Cooler, No.1
88501	88501-30531	Evaporator Sub-Assy, Cooler, No.1
88501	88501-95A00	Evaporator Sub-Assy, Cooler, No.1
88510	88510-30670	Unit Assy, Cooler
88510	88510-30671	Unit Assy, Cooler
88510	88510-95A00	Unit Assy, Cooler
88510	88510-95A01	Unit Assy, Cooler
88515	88515-10010	Valve, Cooler Expansion
88515	88515-12050	Valve, Cooler Expansion
88515	88515-12051	Valve, Cooler Expansion
88570	88570-30600	Grille Sub-Assy, Cooler Air Outlet
88625	88625-12040	Thermistor, Cooler, No.1
88625	88625-30480	Thermistor, Cooler, No.1
88635	88635-30370	Resistor, Cooler Unit Blower
88635	88635-0B010	Resistor, Cooler Unit Blower
9009914046	90099-14046	Ring, O(For Cooler Refrigerant Discharge Hose)

OEM	Part name	Category
88501-30530	Evaporator Sub-Assy, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([12.1979 - ] (7912- )RH11,20,22,3#..ARL,GEN)
88501-30531	Evaporator Sub-Assy, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([12.1979 - ] (7912- )RH11,20,22,3#..ARL,GEN)
88501-95A00	Evaporator Sub-Assy, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([12.1979 - ] (7912- )RH11,20,22,3#..ARL,GEN)
88510-30670	Unit Assy, Cooler	Heating & Air Conditioning - Cooler Unit ([12.1979 - ] (7912- )RH11,20,22,3#..ARL,GEN)
88510-30671	Unit Assy, Cooler	Heating & Air Conditioning - Cooler Unit ([12.1979 - ] (7912- )RH11,20,22,3#..ARL,GEN)
88510-95A00	Unit Assy, Cooler	Heating & Air Conditioning - Cooler Unit ([12.1979 - ] (7912- )RH11,20,22,3#..ARL,GEN)
88510-95A01	Unit Assy, Cooler	Heating & Air Conditioning - Cooler Unit ([12.1979 - ] (7912- )RH11,20,22,3#..ARL,GEN)
88515-10010	Valve, Cooler Expansion	Heating & Air Conditioning - Cooler Unit ([12.1979 - ] (7912- )RH11,20,22,3#..ARL,GEN)
88515-12050	Valve, Cooler Expansion	Heating & Air Conditioning - Cooler Unit ([12.1979 - ] (7912- )RH11,20,22,3#..ARL,GEN)
88515-12051	Valve, Cooler Expansion	Heating & Air Conditioning - Cooler Unit ([12.1979 - ] (7912- )RH11,20,22,3#..ARL,GEN)
88541-10010	Fan, Cooler Blower, No.1	Heating & Air Conditioning - Cooler Unit ([12.1979 - ] (7912- )RH11,20,22,3#..ARL,GEN)
88541-10020	Fan, Cooler Blower, No.2	Heating & Air Conditioning - Cooler Unit ([12.1979 - ] (7912- )RH11,20,22,3#..ARL,GEN)
88550-30300	Motor Sub-Assy, Cooler Blower, No.1	Heating & Air Conditioning - Cooler Unit ([12.1979 - ] (7912- )RH11,20,22,3#..ARL,GEN)
88550-95A01	Motor Sub-Assy, Cooler Blower, No.1	Heating & Air Conditioning - Cooler Unit ([12.1979 - ] (7912- )RH11,20,22,3#..ARL,GEN)
88570-30600	Grille Sub-Assy, Cooler Air Outlet	Heating & Air Conditioning - Cooler Unit ([12.1979 - ] (7912- )RH11,20,22,3#..ARL,GEN)
88625-12040	Thermistor, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([12.1979 - ] (7912- )RH11,20,22,3#..ARL,GEN)
88625-30480	Thermistor, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([12.1979 - ] (7912- )RH11,20,22,3#..ARL,GEN)
88635-0B010	Resistor, Cooler Unit Blower	Heating & Air Conditioning - Cooler Unit ([12.1979 - ] (7912- )RH11,20,22,3#..ARL,GEN)
88635-30370	Resistor, Cooler Unit Blower	Heating & Air Conditioning - Cooler Unit ([12.1979 - ] (7912- )RH11,20,22,3#..ARL,GEN)
90099-14046	Ring, O(For Cooler Refrigerant Discharge Hose)	Heating & Air Conditioning - Cooler Unit ([12.1979 - ] (7912- )RH11,20,22,3#..ARL,GEN)
