Search › Model › RH30

RH30

Toyota HIACE · 1977 · 4,005 parts · 155 categories

4,005 items

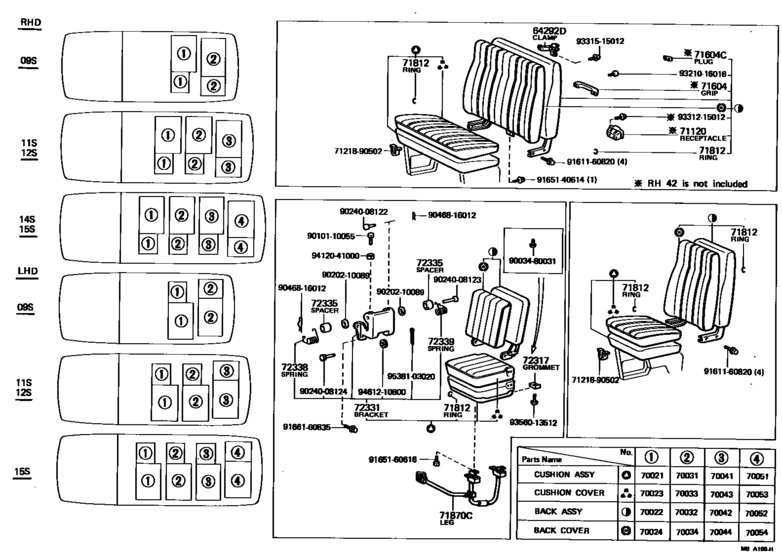

Seat & Seat Track ([02.1977 - ] (7702- )BUS) 68

#	OEM	Part name
70021	71410-95A19	Cushion Assy, No.2 Seat
70021	71810-95A04	Cushion Assy, No.2 Seat
70022	71450-95A20	Back Assy, No.2 Seat
70022	71550-95A04	Back Assy, No.2 Seat
70022	71850-95A02	Back Assy, No.2 Seat
70023	71408-95A12	Cover Assy, No.2 Seat Cushion
70023	71808-95A04	Cover Assy, No.2 Seat Cushion
70024	71409-95A06	Cover Assy, No.2 Seat Back
70024	71809-95A02	Cover Assy, No.2 Seat Back
70041	71810-95A01	Cushion Assy, No.2 Seat
70042	71550-95A19	Back Assy, No.4 Seat
70042	71850-95A01	Back Assy, No.2 Seat
70042	71650-95A23	Back Assy, No.4 Seat
70043	71808-95A01	Cover Assy, No.2 Seat Cushion
70044	71809-95A01	Cover Assy, No.2 Seat Back
70051	71410-95A04	Cushion Assy, No.2 Seat
70051	71710-95A00	Cushion Assy, No.3 Seat
70051	71710-95A04	Cushion Assy, No.3 Seat
70052	71650-95A00	Back Assy, No.3 Seat
70052	71650-95A14	Back Assy, No.3 Seat
70052	71750-95A00	Back Assy, No.3 Seat
70052	71750-95A06	Back Assy, No.3 Seat
70053	71408-95A00	Cover Assy, No.2 Seat Cushion
70053	71708-95A00	Cover Assy, No.3 Seat Cushion
70053	71708-95A02	Cover Assy, No.3 Seat Cushion
70054	71409-95A00	Cover Assy, No.2 Seat Back
70054	71709-95A00	Cover Assy, No.3 Seat Back
70054	71709-95A02	Cover Assy, No.3 Seat Back
71120	74120-90501	Receptacle Sub-Assy, Ash(For Rear Seat)
71604	74603-20010-05	Grip Sub-Assy, Assist(For Seat Back)
71604	74617-14010-A0	Plug, Assist Grip
71604	74610-20030-26	Grip Sub-Assy, Assist, Rear
71604	74603-95A03	Grip Sub-Assy, Assist(For Seat Back)
71604	74603-20010-B0	Grip Sub-Assy, Assist
71604	74617-12010-05	Plug, Hole(For Assist Grip)
71604	74617-95A03	Plug, Hole(For Assist Grip)
71812	71812-30010	Ring(For Seat Belt Cover)
71812	90468-16019	Clip (For Rear Seat Back)
71812	90468-18008	Clip (For Rear Seat Back)
71870	71880-95A00	Leg Assy, Sub Seat
72317	72317-90500	Grommet, Sub Seat Cushion
72331	72301-90500	Bracket, Sub Seat Cushion
72331	78705-90B00-B1	Bracket Sub-assy, Sub Seat Cushion
72331	90562-10106	New Genuine Part
72335	72335-90500	Spacer, Sub Seat Link
72338	72337-90500	Spring, Sub Seat Link, Rh
72339	72339-90500	Spring, Sub Seat Link, Lh
7121890502	71218-90502	Spring, Passenger Seat Lock
9003480031	90034-80031	Clip (For Assist Grip)
9010110055	90101-10055	Bolt(For Clutch Pedal Stopper)
9020210089	90202-10089	New Genuine Part
9024008122	90240-08122	New Genuine Part
9024008123	90240-08123	New Genuine Part
9024008124	90240-08124	New Genuine Part
9046816012	90468-16012	Pin, Sub Seat Cushion Pin
9161160820	91611-60820	Bolt(For Transaxle & Engine Setting)
9161160820	91611-G0820	Bolt
9165140614	91651-40614	Bolt
9165160616	91651-60616	BOLT
9166160835	91661-60835	New Genuine Part
9321016016	93210-16016	SCREW
9331215012	93312-15012	New Genuine Part
9331515012	93315-15012	SCREWWWASHER
9356013512	93560-13512	New Genuine Part
9412041000	94120-41000	Nut(For Clutch Pedal Stopper)
9412041000	90170-A0002	Nut
9461210800	94612-10800	Washer, Plate(For Repair Actuator Set)
9538103020	95381-03020	Pin, Cotter(For Reverse Shaft Restrict Pin)

OEM	Part name	Category
71218-90502	Spring, Passenger Seat Lock	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
71408-95A00	Cover Assy, No.2 Seat Cushion	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
71408-95A12	Cover Assy, No.2 Seat Cushion	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
71409-95A00	Cover Assy, No.2 Seat Back	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
71409-95A06	Cover Assy, No.2 Seat Back	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
71410-95A04	Cushion Assy, No.2 Seat	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
71410-95A19	Cushion Assy, No.2 Seat	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
71450-95A20	Back Assy, No.2 Seat	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
71550-95A04	Back Assy, No.2 Seat	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
71550-95A19	Back Assy, No.4 Seat	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
71650-95A00	Back Assy, No.3 Seat	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
71650-95A14	Back Assy, No.3 Seat	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
71650-95A23	Back Assy, No.4 Seat	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
71708-95A00	Cover Assy, No.3 Seat Cushion	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
71708-95A02	Cover Assy, No.3 Seat Cushion	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
71709-95A00	Cover Assy, No.3 Seat Back	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
71709-95A02	Cover Assy, No.3 Seat Back	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
71710-95A00	Cushion Assy, No.3 Seat	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
71710-95A04	Cushion Assy, No.3 Seat	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
71750-95A00	Back Assy, No.3 Seat	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
71750-95A06	Back Assy, No.3 Seat	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
71808-95A01	Cover Assy, No.2 Seat Cushion	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
71808-95A04	Cover Assy, No.2 Seat Cushion	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
71809-95A01	Cover Assy, No.2 Seat Back	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
71809-95A02	Cover Assy, No.2 Seat Back	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
71810-95A01	Cushion Assy, No.2 Seat	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
71810-95A04	Cushion Assy, No.2 Seat	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
71812-30010	Ring(For Seat Belt Cover)	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
71850-95A01	Back Assy, No.2 Seat	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
71850-95A02	Back Assy, No.2 Seat	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
71880-95A00	Leg Assy, Sub Seat	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
72301-90500	Bracket, Sub Seat Cushion	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
72317-90500	Grommet, Sub Seat Cushion	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
72335-90500	Spacer, Sub Seat Link	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
72337-90500	Spring, Sub Seat Link, Rh	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
72339-90500	Spring, Sub Seat Link, Lh	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
74120-90501	Receptacle Sub-Assy, Ash(For Rear Seat)	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
74603-20010-05	Grip Sub-Assy, Assist(For Seat Back)	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
74603-20010-B0	Grip Sub-Assy, Assist	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
74603-95A03	Grip Sub-Assy, Assist(For Seat Back)	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
74610-20030-26	Grip Sub-Assy, Assist, Rear	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
74617-12010-05	Plug, Hole(For Assist Grip)	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
74617-14010-A0	Plug, Assist Grip	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
74617-95A03	Plug, Hole(For Assist Grip)	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
78705-90B00-B1	Bracket Sub-assy, Sub Seat Cushion	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
90034-80031	Clip (For Assist Grip)	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
90101-10055	Bolt(For Clutch Pedal Stopper)	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
90170-A0002	Nut	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
90202-10089	New Genuine Part	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
90240-08122	New Genuine Part	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
90240-08123	New Genuine Part	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
90240-08124	New Genuine Part	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
90468-16012	Pin, Sub Seat Cushion Pin	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
90468-16019	Clip (For Rear Seat Back)	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
90468-18008	Clip (For Rear Seat Back)	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
90562-10106	New Genuine Part	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
91611-60820	Bolt(For Transaxle & Engine Setting)	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
91611-G0820	Bolt	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
91651-40614	Bolt	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
91651-60616	BOLT	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
91661-60835	New Genuine Part	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
93210-16016	SCREW	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
93312-15012	New Genuine Part	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
93315-15012	SCREWWWASHER	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
93560-13512	New Genuine Part	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
94120-41000	Nut(For Clutch Pedal Stopper)	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
94612-10800	Washer, Plate(For Repair Actuator Set)	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
95381-03020	Pin, Cotter(For Reverse Shaft Restrict Pin)	Seat & Seat Track ([02.1977 - ] (7702- )BUS)
