RH30

Toyota HIACE · 1977 · 4,005 parts · 155 categories

4,005 items

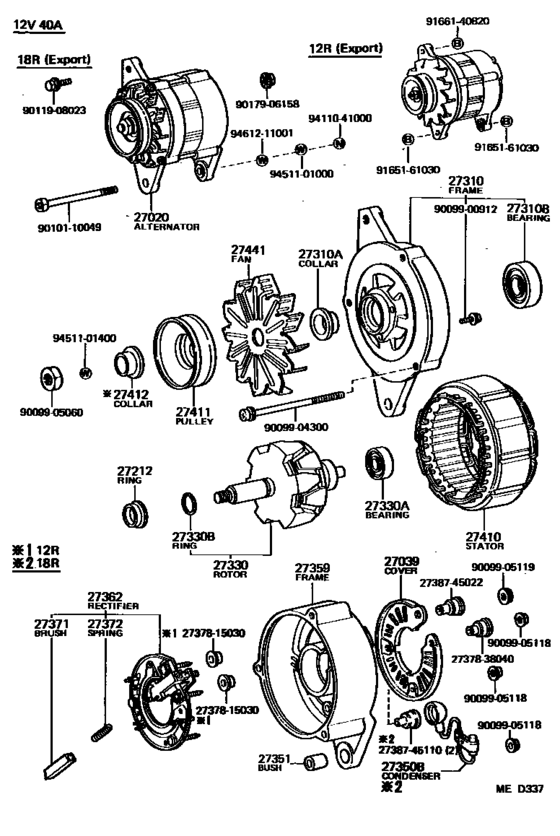

Alternator ([12.1979 - ] (7912- )12R,18R) 77

#	OEM	Part name
27020	27020-31080	Alternator Assy
27020	27020-31141	Alternator Assy
27020	27020-31090	Alternator Assy
27020	27020-31132	Alternator Assy
27039	27039-11014	Cover, Alternator Rear End
27039	27039-12030	Cover, Alternator Rear End
27039	27039-18011	Cover, Alternator Rear End
27039	27039-36070	Cover, Alternator Rear End
27039	27039-44070	Cover, Alternator Rear End
27212	27212-39050	Ring, Space(For Alternator Rotor)
27212	27412-45070	Ring, Space(For Alternator Rotor)
27212	90099-19068	Ring, Space(For Alternator Rotor)
27310	27310-15030	Frame Assy, Drive End, Alternator
27310	27310-22012	Frame Assy, Drive End, Alternator
27310	27310-45020	Frame Assy, Drive End, Alternator
27310	27310-61013	Frame Assy, Drive End, Alternator
27310	27310-61023	Frame Assy, Drive End, Alternator
27310	27412-31040	Collar Or Nut(For Alternator Drive End Frame)
27310	27412-56040	Collar Or Nut(For Alternator Drive End Frame)
27310	90099-19075	Collar Or Nut(For Alternator Drive End Frame)
27310	90099-10012	Bearing(For Alternator Drive End Frame)
27310	90099-10109	Bearing(For Alternator Drive End Frame)
27310	90099-10114	Bearing(For Alternator Drive End Frame)
27310	90099-10125	Bearing(For Alternator Drive End Frame)
27310	90099-10126	Bearing(For Alternator Drive End Frame)
27330	27330-22012	Rotor Assy, Alternator
27330	27330-26050	Rotor Assy, Alternator
27330	27330-33010	Rotor Assy, Alternator
27330	27330-45070	Rotor Assy, Alternator
27330	27330-16030	Rotor Assy, Alternator
27330	90099-10103	Bearing(For Alternator Rotor)
27330	90099-10111	Bearing(For Alternator Rotor)
27330	90099-10116	Bearing(For Alternator Rotor)
27330	97110-06201	Bearing(For Alternator Rotor)
27330	90099-07048	Ring, Snap(For Alternator Rotor)
27351	27351-24020	Bush(For Alternator Rectifier End Frame)
27351	27351-25010	Bush(For Alternator Rectifier End Frame)
27351	27351-38051	Bush(For Alternator Rectifier End Frame)
27359	27359-13050	Frame, Alternator Rectifier End
27359	27359-24100	Frame, Alternator Rectifier End
27359	27359-31090	Frame, Alternator Rectifier End
27359	27359-44032	Frame, Alternator Rectifier End
27359	27359-36061	Frame, Alternator Rectifier End
27362	27362-15021	Rectifier Assy, W/brush
27362	27362-63011	Rectifier Assy, W/brush
27362	27362-15030	Rectifier Assy, W/brush
27371	27371-31011	Brush, Alternator
27372	27372-31011	Spring, Alternator Brush
27410	27410-11014	Stator Assy, Alternator
27410	27410-15030	Stator Assy, Alternator
27410	27410-38120	Stator Assy, Alternator
27410	27410-26020	Stator Assy, Alternator
27410	27410-26030	Stator Assy, Alternator
27410	27410-41080	Stator Assy, Alternator
27411	27411-31090	Pulley, Alternator
27411	27411-44050	Pulley, Alternator
27441	27441-31090	Fan, Alternator
27441	27441-34030	Fan, Alternator
2737815030	27378-15030	Insulator, Alternator, No.1
2737838040	27378-38040	Insulator, Alternator, No.1
2738745022	27387-45022	Insulator, Terminal
2738745110	27387-45110	Insulator, Terminal
9009900912	90099-00912	New Genuine Part
9009904300	90099-04300	New Genuine Part
9009905060	90099-05060	Collar Or Nut(For Alternator Drive End Frame)
9009905118	90099-05118	New Genuine Part
9009905119	90099-05119	New Genuine Part
9010110049	90101-10049	Bolt, Hexagon(For Air Pump Bracket Setting)
9010110049	90105-10221	Bolt, Hexagon(For Air Pump Bracket Setting)
9011908023	90119-08023	BOLT
9017906158	90179-06158	Nut, Rear Wiper Link Pivot, No.2
9165161030	91651-61030	Bolt (For Transfer Case)
9166140820	91661-40820	New Genuine Part
9411041000	94110-41000	Nut(For Steering Damper)
9451101000	94511-01000	Washer(For Rear Drive Shaft)
9451101400	94511-01400	WASHER
9461211001	94612-11001	Washer, Plate (For Center Support Bearing Housing)

OEM	Part name	Category
27020-31080	Alternator Assy	Alternator ([12.1979 - ] (7912- )12R,18R)
27020-31090	Alternator Assy	Alternator ([12.1979 - ] (7912- )12R,18R)
27020-31132	Alternator Assy	Alternator ([12.1979 - ] (7912- )12R,18R)
27020-31141	Alternator Assy	Alternator ([12.1979 - ] (7912- )12R,18R)
27039-11014	Cover, Alternator Rear End	Alternator ([12.1979 - ] (7912- )12R,18R)
27039-12030	Cover, Alternator Rear End	Alternator ([12.1979 - ] (7912- )12R,18R)
27039-18011	Cover, Alternator Rear End	Alternator ([12.1979 - ] (7912- )12R,18R)
27039-36070	Cover, Alternator Rear End	Alternator ([12.1979 - ] (7912- )12R,18R)
27039-44070	Cover, Alternator Rear End	Alternator ([12.1979 - ] (7912- )12R,18R)
27212-39050	Ring, Space(For Alternator Rotor)	Alternator ([12.1979 - ] (7912- )12R,18R)
27310-15030	Frame Assy, Drive End, Alternator	Alternator ([12.1979 - ] (7912- )12R,18R)
27310-22012	Frame Assy, Drive End, Alternator	Alternator ([12.1979 - ] (7912- )12R,18R)
27310-45020	Frame Assy, Drive End, Alternator	Alternator ([12.1979 - ] (7912- )12R,18R)
27310-61013	Frame Assy, Drive End, Alternator	Alternator ([12.1979 - ] (7912- )12R,18R)
27310-61023	Frame Assy, Drive End, Alternator	Alternator ([12.1979 - ] (7912- )12R,18R)
27330-16030	Rotor Assy, Alternator	Alternator ([12.1979 - ] (7912- )12R,18R)
27330-22012	Rotor Assy, Alternator	Alternator ([12.1979 - ] (7912- )12R,18R)
27330-26050	Rotor Assy, Alternator	Alternator ([12.1979 - ] (7912- )12R,18R)
27330-33010	Rotor Assy, Alternator	Alternator ([12.1979 - ] (7912- )12R,18R)
27330-45070	Rotor Assy, Alternator	Alternator ([12.1979 - ] (7912- )12R,18R)
27351-24020	Bush(For Alternator Rectifier End Frame)	Alternator ([12.1979 - ] (7912- )12R,18R)
27351-25010	Bush(For Alternator Rectifier End Frame)	Alternator ([12.1979 - ] (7912- )12R,18R)
27351-38051	Bush(For Alternator Rectifier End Frame)	Alternator ([12.1979 - ] (7912- )12R,18R)
27359-13050	Frame, Alternator Rectifier End	Alternator ([12.1979 - ] (7912- )12R,18R)
27359-24100	Frame, Alternator Rectifier End	Alternator ([12.1979 - ] (7912- )12R,18R)
27359-31090	Frame, Alternator Rectifier End	Alternator ([12.1979 - ] (7912- )12R,18R)
27359-36061	Frame, Alternator Rectifier End	Alternator ([12.1979 - ] (7912- )12R,18R)
27359-44032	Frame, Alternator Rectifier End	Alternator ([12.1979 - ] (7912- )12R,18R)
27362-15021	Rectifier Assy, W/brush	Alternator ([12.1979 - ] (7912- )12R,18R)
27362-15030	Rectifier Assy, W/brush	Alternator ([12.1979 - ] (7912- )12R,18R)
27362-63011	Rectifier Assy, W/brush	Alternator ([12.1979 - ] (7912- )12R,18R)
27371-31011	Brush, Alternator	Alternator ([12.1979 - ] (7912- )12R,18R)
27372-31011	Spring, Alternator Brush	Alternator ([12.1979 - ] (7912- )12R,18R)
27378-15030	Insulator, Alternator, No.1	Alternator ([12.1979 - ] (7912- )12R,18R)
27378-38040	Insulator, Alternator, No.1	Alternator ([12.1979 - ] (7912- )12R,18R)
27387-45022	Insulator, Terminal	Alternator ([12.1979 - ] (7912- )12R,18R)
27387-45110	Insulator, Terminal	Alternator ([12.1979 - ] (7912- )12R,18R)
27410-11014	Stator Assy, Alternator	Alternator ([12.1979 - ] (7912- )12R,18R)
27410-15030	Stator Assy, Alternator	Alternator ([12.1979 - ] (7912- )12R,18R)
27410-26020	Stator Assy, Alternator	Alternator ([12.1979 - ] (7912- )12R,18R)
27410-26030	Stator Assy, Alternator	Alternator ([12.1979 - ] (7912- )12R,18R)
27410-38120	Stator Assy, Alternator	Alternator ([12.1979 - ] (7912- )12R,18R)
27410-41080	Stator Assy, Alternator	Alternator ([12.1979 - ] (7912- )12R,18R)
27411-31090	Pulley, Alternator	Alternator ([12.1979 - ] (7912- )12R,18R)
27411-44050	Pulley, Alternator	Alternator ([12.1979 - ] (7912- )12R,18R)
27412-31040	Collar Or Nut(For Alternator Drive End Frame)	Alternator ([12.1979 - ] (7912- )12R,18R)
27412-45070	Ring, Space(For Alternator Rotor)	Alternator ([12.1979 - ] (7912- )12R,18R)
27412-56040	Collar Or Nut(For Alternator Drive End Frame)	Alternator ([12.1979 - ] (7912- )12R,18R)
27441-31090	Fan, Alternator	Alternator ([12.1979 - ] (7912- )12R,18R)
27441-34030	Fan, Alternator	Alternator ([12.1979 - ] (7912- )12R,18R)
90099-00912	New Genuine Part	Alternator ([12.1979 - ] (7912- )12R,18R)
90099-04300	New Genuine Part	Alternator ([12.1979 - ] (7912- )12R,18R)
90099-05060	Collar Or Nut(For Alternator Drive End Frame)	Alternator ([12.1979 - ] (7912- )12R,18R)
90099-05118	New Genuine Part	Alternator ([12.1979 - ] (7912- )12R,18R)
90099-05119	New Genuine Part	Alternator ([12.1979 - ] (7912- )12R,18R)
90099-07048	Ring, Snap(For Alternator Rotor)	Alternator ([12.1979 - ] (7912- )12R,18R)
90099-10012	Bearing(For Alternator Drive End Frame)	Alternator ([12.1979 - ] (7912- )12R,18R)
90099-10103	Bearing(For Alternator Rotor)	Alternator ([12.1979 - ] (7912- )12R,18R)
90099-10109	Bearing(For Alternator Drive End Frame)	Alternator ([12.1979 - ] (7912- )12R,18R)
90099-10111	Bearing(For Alternator Rotor)	Alternator ([12.1979 - ] (7912- )12R,18R)
90099-10114	Bearing(For Alternator Drive End Frame)	Alternator ([12.1979 - ] (7912- )12R,18R)
90099-10116	Bearing(For Alternator Rotor)	Alternator ([12.1979 - ] (7912- )12R,18R)
90099-10125	Bearing(For Alternator Drive End Frame)	Alternator ([12.1979 - ] (7912- )12R,18R)
90099-10126	Bearing(For Alternator Drive End Frame)	Alternator ([12.1979 - ] (7912- )12R,18R)
90099-19068	Ring, Space(For Alternator Rotor)	Alternator ([12.1979 - ] (7912- )12R,18R)
90099-19075	Collar Or Nut(For Alternator Drive End Frame)	Alternator ([12.1979 - ] (7912- )12R,18R)
90101-10049	Bolt, Hexagon(For Air Pump Bracket Setting)	Alternator ([12.1979 - ] (7912- )12R,18R)
90105-10221	Bolt, Hexagon(For Air Pump Bracket Setting)	Alternator ([12.1979 - ] (7912- )12R,18R)
90119-08023	BOLT	Alternator ([12.1979 - ] (7912- )12R,18R)
90179-06158	Nut, Rear Wiper Link Pivot, No.2	Alternator ([12.1979 - ] (7912- )12R,18R)
91651-61030	Bolt (For Transfer Case)	Alternator ([12.1979 - ] (7912- )12R,18R)
91661-40820	New Genuine Part	Alternator ([12.1979 - ] (7912- )12R,18R)
94110-41000	Nut(For Steering Damper)	Alternator ([12.1979 - ] (7912- )12R,18R)
94511-01000	Washer(For Rear Drive Shaft)	Alternator ([12.1979 - ] (7912- )12R,18R)
94511-01400	WASHER	Alternator ([12.1979 - ] (7912- )12R,18R)
94612-11001	Washer, Plate (For Center Support Bearing Housing)	Alternator ([12.1979 - ] (7912- )12R,18R)
97110-06201	Bearing(For Alternator Rotor)	Alternator ([12.1979 - ] (7912- )12R,18R)
