RH24

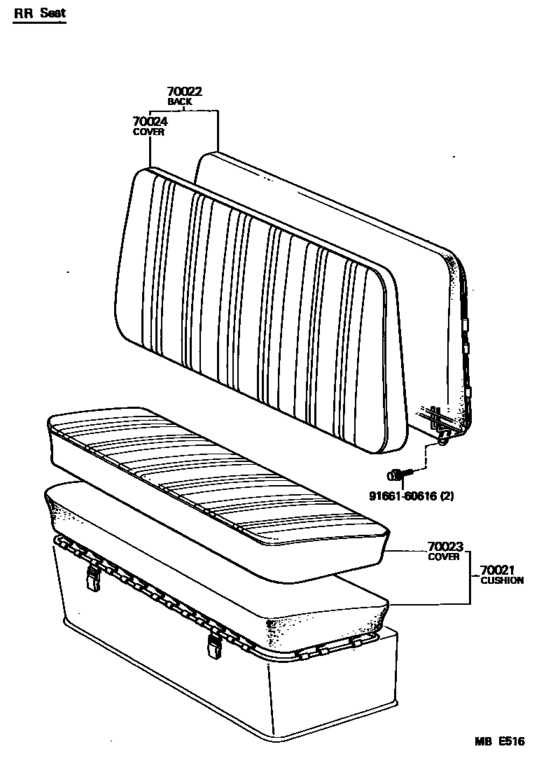

Seat & Seat Track ([11.1982 - ] (8211- )06S) 5
| # | OEM | Part name |
|---|---|---|
| 70021 | 71410-95A45 | Cushion Assy, No.2 Seat |
| 70022 | 71450-95A46 | Back Assy, No.2 Seat |
| 70023 | 71440-95A05 | Cover Assy, No.2 Seat Cushion |
| 70024 | 71490-95A05 | Cover Assy, No.2 Seat Back |
| 9166160616 | 91661-60616 | BOLT |
| OEM | Part name | Category |
|---|---|---|
| 71410-95A45 | Cushion Assy, No.2 Seat | Seat & Seat Track ([11.1982 - ] (8211- )06S) |
| 71440-95A05 | Cover Assy, No.2 Seat Cushion | Seat & Seat Track ([11.1982 - ] (8211- )06S) |
| 71450-95A46 | Back Assy, No.2 Seat | Seat & Seat Track ([11.1982 - ] (8211- )06S) |
| 71490-95A05 | Cover Assy, No.2 Seat Back | Seat & Seat Track ([11.1982 - ] (8211- )06S) |
| 91661-60616 | BOLT | Seat & Seat Track ([11.1982 - ] (8211- )06S) |
