RH24

Toyota HIACE-TRUCK · 1982 · 2,849 parts · 136 categories

← Back to categories

2,849 items

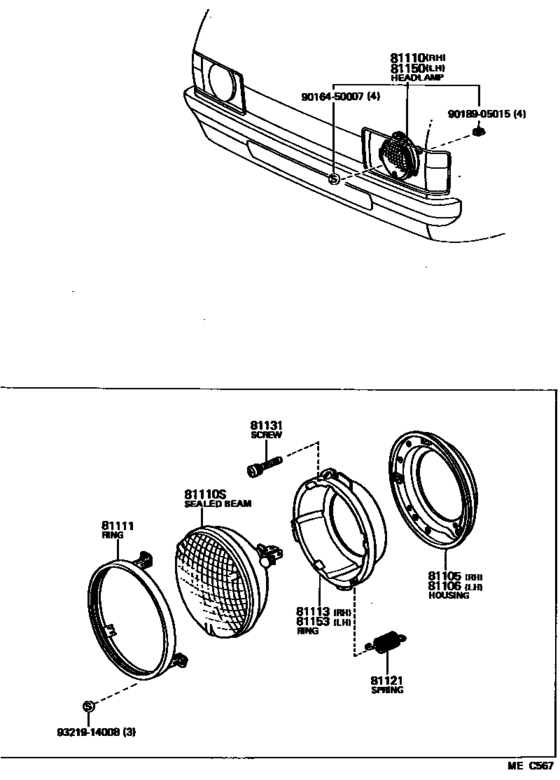

Headlamp ([11.1982 - ] (8211- )) 14

#	OEM	Part name
81105	81105-95A08	Housing Sub-Assy, Headlamp, Rh
81106	81106-95A08	Housing Sub-Assy, Headlamp, Lh
81110	81110-80103	Headlamp Assy, Rh
81110	90981-01015	Sealed Beam Unit, No.1
81111	81111-89117	Ring, Sealed Beam Retaining
81113	81113-95A00	Ring, Sealed Beam Mounting, No.1 Rh - SEALED BEAM MOUNTING, NO.1 LH
81121	81121-62010	Spring, Headlamp Tension
81131	81131-10031	Screw, Headlamp Adjusting
81150	81150-80100	Headlamp Assy, Lh
81153	81153-95A00	Ring, Sealed Beam Mounting, No.1 Rh
9016450007	90164-50007	New Genuine Part
9016450007	90159-50323	SCREWWWASHER
9018905015	90189-05015	Nut, Headlamp Self Locking
9321914008	93219-14008	Screw, W/washer(For Bearing Cover Setting)

OEM	Part name	Category
81105-95A08	Housing Sub-Assy, Headlamp, Rh	Headlamp ([11.1982 - ] (8211- ))
81106-95A08	Housing Sub-Assy, Headlamp, Lh	Headlamp ([11.1982 - ] (8211- ))
81110-80103	Headlamp Assy, Rh	Headlamp ([11.1982 - ] (8211- ))
81111-89117	Ring, Sealed Beam Retaining	Headlamp ([11.1982 - ] (8211- ))
81113-95A00	Ring, Sealed Beam Mounting, No.1 Rh - SEALED BEAM MOUNTING, NO.1 LH	Headlamp ([11.1982 - ] (8211- ))
81121-62010	Spring, Headlamp Tension	Headlamp ([11.1982 - ] (8211- ))
81131-10031	Screw, Headlamp Adjusting	Headlamp ([11.1982 - ] (8211- ))
81150-80100	Headlamp Assy, Lh	Headlamp ([11.1982 - ] (8211- ))
81153-95A00	Ring, Sealed Beam Mounting, No.1 Rh	Headlamp ([11.1982 - ] (8211- ))
90159-50323	SCREWWWASHER	Headlamp ([11.1982 - ] (8211- ))
90164-50007	New Genuine Part	Headlamp ([11.1982 - ] (8211- ))
90189-05015	Nut, Headlamp Self Locking	Headlamp ([11.1982 - ] (8211- ))
90981-01015	Sealed Beam Unit, No.1	Headlamp ([11.1982 - ] (8211- ))
93219-14008	Screw, W/washer(For Bearing Cover Setting)	Headlamp ([11.1982 - ] (8211- ))
