RH22

Toyota HIACE · 1977 · 4,453 parts · 199 categories

4,453 items

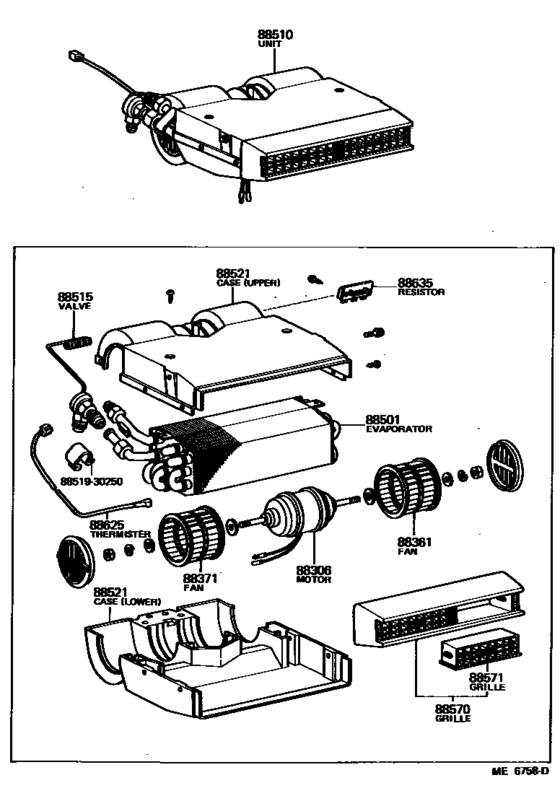

Heating & Air Conditioning - Cooler Unit ([02.1977 - 12.1979] (7702-7912)RH11,22,3# ; (7702-7912)RH20..V..EUR ; (7702-7912)RH20..ARL,GEN) 23

#	OEM	Part name
88306	88550-30300	Motor Sub-Assy, Cooler Blower, No.1
88306	88550-95A01	Motor Sub-Assy, Cooler Blower, No.1
88361	88541-10010	Fan, Cooler Blower, No.1
88371	88541-10020	Fan, Cooler Blower, No.2
88501	88501-30530	Evaporator Sub-Assy, Cooler, No.1
88501	88501-30531	Evaporator Sub-Assy, Cooler, No.1
88501	88501-95A00	Evaporator Sub-Assy, Cooler, No.1
88510	88510-30670	Unit Assy, Cooler
88510	88510-30671	Unit Assy, Cooler
88510	88510-95A00	Unit Assy, Cooler
88510	88510-95A01	Unit Assy, Cooler
88515	88515-10010	Valve, Cooler Expansion
88515	88515-12050	Valve, Cooler Expansion
88515	88515-12051	Valve, Cooler Expansion
88570	88570-30600	Grille Sub-Assy, Cooler Air Outlet
88571	55061-20010	Louver Assy, Side Ventilator, Lh - INSTRUMENT PANEL, NO.3
88571	55061-20010-01	Louver Assy, Side Ventilator, Lh
88571	88571-12040	Grille, Air Outlet
88625	88625-12040	Thermistor, Cooler, No.1
88625	88625-30480	Thermistor, Cooler, No.1
88635	88635-30370	Resistor, Cooler Unit Blower
88635	88635-0B010	Resistor, Cooler Unit Blower
8851930250	88519-30250	Holder, Remote Bulb

OEM	Part name	Category
55061-20010	Louver Assy, Side Ventilator, Lh - INSTRUMENT PANEL, NO.3	Heating & Air Conditioning - Cooler Unit ([02.1977 - 12.1979] (7702-7912)RH11,22,3# ; (7702-7912)RH20..V..EUR ; (7702-7912)RH20..ARL,GEN)
55061-20010-01	Louver Assy, Side Ventilator, Lh	Heating & Air Conditioning - Cooler Unit ([02.1977 - 12.1979] (7702-7912)RH11,22,3# ; (7702-7912)RH20..V..EUR ; (7702-7912)RH20..ARL,GEN)
88501-30530	Evaporator Sub-Assy, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([02.1977 - 12.1979] (7702-7912)RH11,22,3# ; (7702-7912)RH20..V..EUR ; (7702-7912)RH20..ARL,GEN)
88501-30531	Evaporator Sub-Assy, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([02.1977 - 12.1979] (7702-7912)RH11,22,3# ; (7702-7912)RH20..V..EUR ; (7702-7912)RH20..ARL,GEN)
88501-95A00	Evaporator Sub-Assy, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([02.1977 - 12.1979] (7702-7912)RH11,22,3# ; (7702-7912)RH20..V..EUR ; (7702-7912)RH20..ARL,GEN)
88510-30670	Unit Assy, Cooler	Heating & Air Conditioning - Cooler Unit ([02.1977 - 12.1979] (7702-7912)RH11,22,3# ; (7702-7912)RH20..V..EUR ; (7702-7912)RH20..ARL,GEN)
88510-30671	Unit Assy, Cooler	Heating & Air Conditioning - Cooler Unit ([02.1977 - 12.1979] (7702-7912)RH11,22,3# ; (7702-7912)RH20..V..EUR ; (7702-7912)RH20..ARL,GEN)
88510-95A00	Unit Assy, Cooler	Heating & Air Conditioning - Cooler Unit ([02.1977 - 12.1979] (7702-7912)RH11,22,3# ; (7702-7912)RH20..V..EUR ; (7702-7912)RH20..ARL,GEN)
88510-95A01	Unit Assy, Cooler	Heating & Air Conditioning - Cooler Unit ([02.1977 - 12.1979] (7702-7912)RH11,22,3# ; (7702-7912)RH20..V..EUR ; (7702-7912)RH20..ARL,GEN)
88515-10010	Valve, Cooler Expansion	Heating & Air Conditioning - Cooler Unit ([02.1977 - 12.1979] (7702-7912)RH11,22,3# ; (7702-7912)RH20..V..EUR ; (7702-7912)RH20..ARL,GEN)
88515-12050	Valve, Cooler Expansion	Heating & Air Conditioning - Cooler Unit ([02.1977 - 12.1979] (7702-7912)RH11,22,3# ; (7702-7912)RH20..V..EUR ; (7702-7912)RH20..ARL,GEN)
88515-12051	Valve, Cooler Expansion	Heating & Air Conditioning - Cooler Unit ([02.1977 - 12.1979] (7702-7912)RH11,22,3# ; (7702-7912)RH20..V..EUR ; (7702-7912)RH20..ARL,GEN)
88519-30250	Holder, Remote Bulb	Heating & Air Conditioning - Cooler Unit ([02.1977 - 12.1979] (7702-7912)RH11,22,3# ; (7702-7912)RH20..V..EUR ; (7702-7912)RH20..ARL,GEN)
88541-10010	Fan, Cooler Blower, No.1	Heating & Air Conditioning - Cooler Unit ([02.1977 - 12.1979] (7702-7912)RH11,22,3# ; (7702-7912)RH20..V..EUR ; (7702-7912)RH20..ARL,GEN)
88541-10020	Fan, Cooler Blower, No.2	Heating & Air Conditioning - Cooler Unit ([02.1977 - 12.1979] (7702-7912)RH11,22,3# ; (7702-7912)RH20..V..EUR ; (7702-7912)RH20..ARL,GEN)
88550-30300	Motor Sub-Assy, Cooler Blower, No.1	Heating & Air Conditioning - Cooler Unit ([02.1977 - 12.1979] (7702-7912)RH11,22,3# ; (7702-7912)RH20..V..EUR ; (7702-7912)RH20..ARL,GEN)
88550-95A01	Motor Sub-Assy, Cooler Blower, No.1	Heating & Air Conditioning - Cooler Unit ([02.1977 - 12.1979] (7702-7912)RH11,22,3# ; (7702-7912)RH20..V..EUR ; (7702-7912)RH20..ARL,GEN)
88570-30600	Grille Sub-Assy, Cooler Air Outlet	Heating & Air Conditioning - Cooler Unit ([02.1977 - 12.1979] (7702-7912)RH11,22,3# ; (7702-7912)RH20..V..EUR ; (7702-7912)RH20..ARL,GEN)
88571-12040	Grille, Air Outlet	Heating & Air Conditioning - Cooler Unit ([02.1977 - 12.1979] (7702-7912)RH11,22,3# ; (7702-7912)RH20..V..EUR ; (7702-7912)RH20..ARL,GEN)
88625-12040	Thermistor, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([02.1977 - 12.1979] (7702-7912)RH11,22,3# ; (7702-7912)RH20..V..EUR ; (7702-7912)RH20..ARL,GEN)
88625-30480	Thermistor, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([02.1977 - 12.1979] (7702-7912)RH11,22,3# ; (7702-7912)RH20..V..EUR ; (7702-7912)RH20..ARL,GEN)
88635-0B010	Resistor, Cooler Unit Blower	Heating & Air Conditioning - Cooler Unit ([02.1977 - 12.1979] (7702-7912)RH11,22,3# ; (7702-7912)RH20..V..EUR ; (7702-7912)RH20..ARL,GEN)
88635-30370	Resistor, Cooler Unit Blower	Heating & Air Conditioning - Cooler Unit ([02.1977 - 12.1979] (7702-7912)RH11,22,3# ; (7702-7912)RH20..V..EUR ; (7702-7912)RH20..ARL,GEN)
