RH22

Toyota HIACE · 1977 · 4,453 parts · 199 categories
RH22 ×

← Back to categories

4,453 items

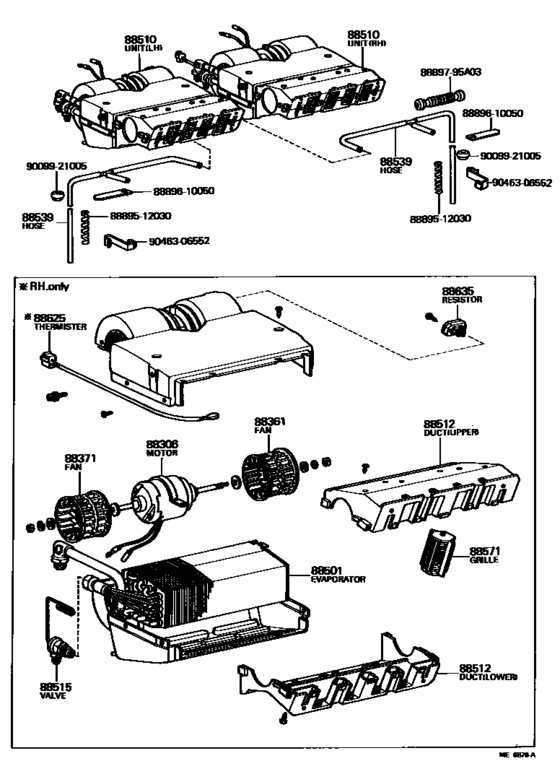

Heating & Air Conditioning - Cooler Unit ([02.1977 - 04.1978] (7702-7804)RH22,42 ; (7702-7804)RH20,3#..RHD ; ( 7702-7804)LHD..12S..EUR ; (7702-780 4)RH20,3#..LHD..G EN,PHL) 58
#OEMPart name
88306 88550-30300 Motor Sub-Assy, Cooler Blower, No.1
88306 88550-95A01 Motor Sub-Assy, Cooler Blower, No.1
88361 88541-10010 Fan, Cooler Blower, No.1
88371 88541-10020 Fan, Cooler Blower, No.2
88501 88501-30530 Evaporator Sub-Assy, Cooler, No.1
88501 88501-30531 Evaporator Sub-Assy, Cooler, No.1
88501 88501-95A00 Evaporator Sub-Assy, Cooler, No.1
88510 88510-30670 Unit Assy, Cooler
88510 88510-30671 Unit Assy, Cooler
88510 88510-95A00 Unit Assy, Cooler
88510 88510-95A01 Unit Assy, Cooler
88512 88576-95A00 Duct, Air
88512 88576-95A01 Duct, Air
88512 88576-95A02 Duct, Air
88515 88515-10010 Valve, Cooler Expansion
88515 88515-12050 Valve, Cooler Expansion
88515 88515-12051 Valve, Cooler Expansion
88536 88536-95A02 Bracket, Cooling Unit, No.1
88536 88536-95A04 Bracket, Cooling Unit, No.1
88536 88536-95A15 Bracket, Cooling Unit, No.1
88536 88536-95A28 Bracket, Cooling Unit, No.1
88536 88536-95A00 Bracket, Cooling Unit, No.2
88536 88536-95A03 Bracket, Cooling Unit, No.2
88536 88536-95A14 Bracket, Cooling Unit, No.2
88536 88536-95A30 Bracket, Cooling Unit, No.2
88536 88536-95A01 Bracket, Cooling Unit, No.3
88536 88536-95A13 Bracket, Cooling Unit, No.3
88536 88536-95A29 Bracket, Cooling Unit, No.3
88539 88539-26040 Hose, Cooler Unit Drain, No.1
88539 88539-90700 Hose, Cooler Unit Drain, No.1
88539 88539-95A00 Hose, Cooler Unit Drain, No.1
88571 55061-20010 Louver Assy, Side Ventilator, Lh - INSTRUMENT PANEL, NO.3
88571 55061-20010-01 Louver Assy, Side Ventilator, Lh
88571 88571-12040 Grille, Air Outlet
88604 88688-95A03 Bracket, Switch, No.1
88604 88688-95A04 Bracket, Switch, No.2
88604 88688-95A02 Bracket, Switch, No.3
88605 88605-95A00 Harness Sub-Assy, Cooler Wiring, No.1
88605 88605-95A01 Harness Sub-Assy, Cooler Wiring, No.1
88605 88605-95A09 Harness Sub-Assy, Cooler Wiring, No.1
88605 88605-95A32 Harness Sub-Assy, Cooler Wiring, No.1
88610 88610-95A00 Switch Assy, Cooler Control
88625 88625-12040 Thermistor, Cooler, No.1
88625 88625-30480 Thermistor, Cooler, No.1
88630 88630-10010 Relay Assy, Cooler
88630 88630-14010 Relay Assy (For Heater Blower Motor)
88635 88635-30370 Resistor, Cooler Unit Blower
88635 88635-0B010 Resistor, Cooler Unit Blower
8889795 88897-95A03 Valve, Cooler Magnet
8889512030 88895-12030 Insulator, Cooler Refrigerant Pipe, No.2
8889610050 88896-10050 Plate, Cooler Air Outlet Grille Ornament
9009921005 90099-21005 New Genuine Part
9046306552 90463-06552 New Genuine Part
9338515012 93385-15012 SCREW
9338516016 93385-16016 New Genuine Part
9338518016 93385-18016 New Genuine Part
9351015010 93510-15010 New Genuine Part
9411040600 94110-40600 Nut, Rock
