RH22

Toyota HIACE · 1977 · 4,453 parts · 199 categories

4,453 items

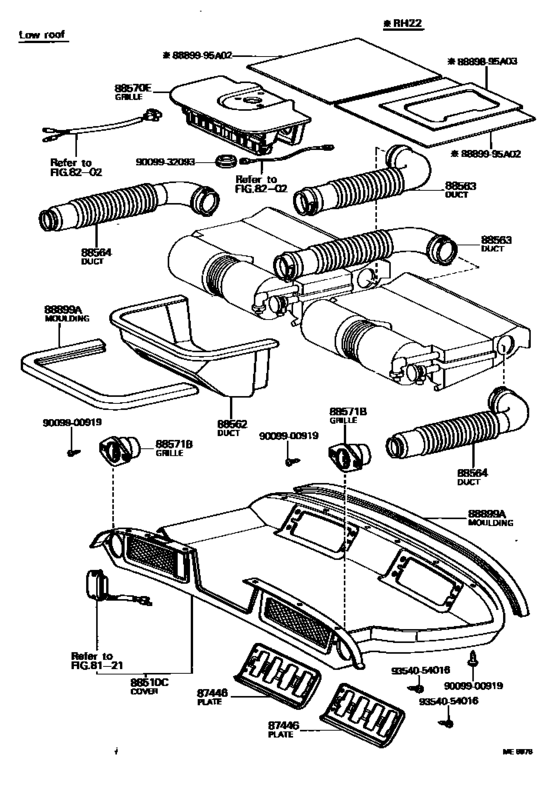

Heating & Air Conditioning - Control & Air Duct ([02.1977 - 04.1978] (7702-7804)RH22 ; (7702-7804)RH20,3#..RHD ; (770 2-7804)LHD..12S..EUR ; (7702-7804)R H20,3#..LHD..GEN, PHL) 14

#	OEM	Part name
87446	88897-95A04	Plate, Air Duct
88510	88896-95A01	Cover Assy, Cooler Unit
88562	88566-95A03	Duct Sub-Assy, Cooler, No.1
88563	88566-95A00	Duct Sub-Assy, Cooler, No.2
88564	88566-95A01	Duct Sub-Assy, Cooler, No.3
88570	88898-95A04	Grille Assy, Air Outlet
88571	88570-95A00	Grille, Air Outlet
88899	88899-95A00	Moulding, Air Duct
88899	88899-95A01	Moulding, Air Duct
8889895	88898-95A03	Tube Sub-assy, Equalizer
8889995	88899-95A02	Cover, Evaporator
9009900919	90099-00919	New Genuine Part
9009932093	90099-32093	New Genuine Part
9354054016	93540-54016	SCREW

OEM	Part name	Category
88566-95A00	Duct Sub-Assy, Cooler, No.2	Heating & Air Conditioning - Control & Air Duct ([02.1977 - 04.1978] (7702-7804)RH22 ; (7702-7804)RH20,3#..RHD ; (770 2-7804)LHD..12S..EUR ; (7702-7804)R H20,3#..LHD..GEN, PHL)
88566-95A01	Duct Sub-Assy, Cooler, No.3	Heating & Air Conditioning - Control & Air Duct ([02.1977 - 04.1978] (7702-7804)RH22 ; (7702-7804)RH20,3#..RHD ; (770 2-7804)LHD..12S..EUR ; (7702-7804)R H20,3#..LHD..GEN, PHL)
88566-95A03	Duct Sub-Assy, Cooler, No.1	Heating & Air Conditioning - Control & Air Duct ([02.1977 - 04.1978] (7702-7804)RH22 ; (7702-7804)RH20,3#..RHD ; (770 2-7804)LHD..12S..EUR ; (7702-7804)R H20,3#..LHD..GEN, PHL)
88570-95A00	Grille, Air Outlet	Heating & Air Conditioning - Control & Air Duct ([02.1977 - 04.1978] (7702-7804)RH22 ; (7702-7804)RH20,3#..RHD ; (770 2-7804)LHD..12S..EUR ; (7702-7804)R H20,3#..LHD..GEN, PHL)
88896-95A01	Cover Assy, Cooler Unit	Heating & Air Conditioning - Control & Air Duct ([02.1977 - 04.1978] (7702-7804)RH22 ; (7702-7804)RH20,3#..RHD ; (770 2-7804)LHD..12S..EUR ; (7702-7804)R H20,3#..LHD..GEN, PHL)
88897-95A04	Plate, Air Duct	Heating & Air Conditioning - Control & Air Duct ([02.1977 - 04.1978] (7702-7804)RH22 ; (7702-7804)RH20,3#..RHD ; (770 2-7804)LHD..12S..EUR ; (7702-7804)R H20,3#..LHD..GEN, PHL)
88898-95A03	Tube Sub-assy, Equalizer	Heating & Air Conditioning - Control & Air Duct ([02.1977 - 04.1978] (7702-7804)RH22 ; (7702-7804)RH20,3#..RHD ; (770 2-7804)LHD..12S..EUR ; (7702-7804)R H20,3#..LHD..GEN, PHL)
88898-95A04	Grille Assy, Air Outlet	Heating & Air Conditioning - Control & Air Duct ([02.1977 - 04.1978] (7702-7804)RH22 ; (7702-7804)RH20,3#..RHD ; (770 2-7804)LHD..12S..EUR ; (7702-7804)R H20,3#..LHD..GEN, PHL)
88899-95A00	Moulding, Air Duct	Heating & Air Conditioning - Control & Air Duct ([02.1977 - 04.1978] (7702-7804)RH22 ; (7702-7804)RH20,3#..RHD ; (770 2-7804)LHD..12S..EUR ; (7702-7804)R H20,3#..LHD..GEN, PHL)
88899-95A01	Moulding, Air Duct	Heating & Air Conditioning - Control & Air Duct ([02.1977 - 04.1978] (7702-7804)RH22 ; (7702-7804)RH20,3#..RHD ; (770 2-7804)LHD..12S..EUR ; (7702-7804)R H20,3#..LHD..GEN, PHL)
88899-95A02	Cover, Evaporator	Heating & Air Conditioning - Control & Air Duct ([02.1977 - 04.1978] (7702-7804)RH22 ; (7702-7804)RH20,3#..RHD ; (770 2-7804)LHD..12S..EUR ; (7702-7804)R H20,3#..LHD..GEN, PHL)
90099-00919	New Genuine Part	Heating & Air Conditioning - Control & Air Duct ([02.1977 - 04.1978] (7702-7804)RH22 ; (7702-7804)RH20,3#..RHD ; (770 2-7804)LHD..12S..EUR ; (7702-7804)R H20,3#..LHD..GEN, PHL)
90099-32093	New Genuine Part	Heating & Air Conditioning - Control & Air Duct ([02.1977 - 04.1978] (7702-7804)RH22 ; (7702-7804)RH20,3#..RHD ; (770 2-7804)LHD..12S..EUR ; (7702-7804)R H20,3#..LHD..GEN, PHL)
93540-54016	SCREW	Heating & Air Conditioning - Control & Air Duct ([02.1977 - 04.1978] (7702-7804)RH22 ; (7702-7804)RH20,3#..RHD ; (770 2-7804)LHD..12S..EUR ; (7702-7804)R H20,3#..LHD..GEN, PHL)
