Search › Model › RH22

RH22

Toyota HIACE · 1977 · 4,453 parts · 199 categories

4,453 items

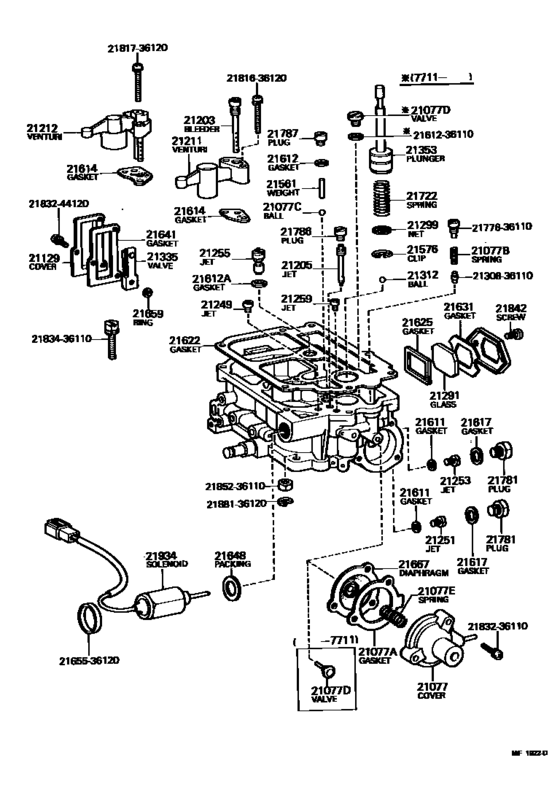

Carburetor ([08.1977 - 08.1979] (7708-7908)18R) 63

#	OEM	Part name
21077	21399-34400	Cover(For Auxiliary Acceleration Pump)
21077	21638-36110	Gasket(For Auxiliary Acceleration Pump)
21077	21737-36110	Spring(For Auxiliary Acceleration Pump)
21077	21312-40020	Ball, Steel(For Auxiliary Acceleration Pump)
21077	21505-36110	Valve, Check(For Auxiliary Acceleration Pump)
21077	21747-36110	Spring(For Auxiliary Acceleration Pump Cover)
21129	21398-36120	Cover(For Thermostatic Valve)
21203	21203-36120	Bleeder Sub-Assy, 1St Main Air
21205	21205-36120	Jet Sub-Assy, Slow
21211	21201-36120	Venturi, 1St Small
21212	21202-36120	Venturi, 2Nd Small
21249	21249-36120	Jet, Air Bleed, No.2
21251	21244-36120	Jet, 1St Main
21251	21251-36110	Jet, 1St Main
21253	21253-36110	Jet, 2Nd Main
21253	21253-36120	Jet, 2Nd Main
21255	21302-36110	Jet, Power
21255	21302-73140	Jet, Power
21255	21302-36120	Valve, Power
21255	21302-73110	Jet, Power
21259	21259-36120	Jet, Air Bleed
21291	21291-36120	Glass, Level Gage
21299	21299-36120	Net, Pump Filter
21335	21038-36120	Valve, Thermostatic
21353	21353-44101	Plunger, Pump
21561	21561-36120	Weight, Pump Discharge
21576	21576-36120	Clip, Pump Strainer
21611	21611-40021	Gasket, Main Jet
21612	21612-36120	Gasket, Power Valve
21612	21612-31100	Gasket, Power Valve
21614	21614-36120	Gasket, Venturi
21614	21614-34600	Gasket, Venturi
21614	21639-36120	Gasket, Venturi
21614	21639-34600	Gasket, Venturi
21617	21633-44150	Gasket, Main Passage Plug
21622	21622-36120	Gasket, Air Horn
21622	21622-34600	Gasket, Air Horn
21625	21625-36120	Gasket, Level Gage
21631	21631-36120	Gasket, Main Guide
21641	21626-36120	Gasket(For Thermostatic Valve Cover)
21641	21626-34600	Gasket(For Thermostatic Valve Cover)
21648	21637-36120	Gasket, Union Nipple
21659	21655-31100	Ring, O(For Thermostatic Valve)
21667	21173-36110	Diaphragm
21722	21735-36120	Spring, Pump Damping
21781	21776-44310	Plug, Main Passage(For Carburetor Jet)
21781	21781-44150	Plug, Main Passage(For Carburetor Jet)
21786	21787-36120	Plug, Slow Passage
21787	21787-31030	Plug, Pump Jet
21842	21832-36120	Screw, Set(For Carburetor Level Gage Clamp Set)
21934	21391-36120	Solenoid, Throttle Valve
2130836110	21308-36110	Valve Sub-assy, Discharge Check
2161236110	21612-36110	Gasket, Power Valve
2165536120	21655-36120	Ring, O(for Lifter Rod)
2177636110	21776-36110	New Genuine Part
2181636120	21816-36120	Screw, Small Venturi Set, No.1
2181736120	21817-36120	New Genuine Part
2183236110	21832-36110	Screw(for Choke Lever Adapter Set)
2183244120	21832-44120	Screw, Set(for 1st Idle Cam Follower Set)
2183244120	21824-44120	Screw, Set(for 1st Idle Cam Follower Set)
2183436110	21834-36110	Screw, Set, No.2(for Carburetor Body Set)
2185236110	21852-36110	Nut, Throttle Lever Set
2188136120	21881-36120	Washer, Lock(for Throttle Shaft)

OEM	Part name	Category
21038-36120	Valve, Thermostatic	Carburetor ([08.1977 - 08.1979] (7708-7908)18R)
21173-36110	Diaphragm	Carburetor ([08.1977 - 08.1979] (7708-7908)18R)
21201-36120	Venturi, 1St Small	Carburetor ([08.1977 - 08.1979] (7708-7908)18R)
21202-36120	Venturi, 2Nd Small	Carburetor ([08.1977 - 08.1979] (7708-7908)18R)
21203-36120	Bleeder Sub-Assy, 1St Main Air	Carburetor ([08.1977 - 08.1979] (7708-7908)18R)
21205-36120	Jet Sub-Assy, Slow	Carburetor ([08.1977 - 08.1979] (7708-7908)18R)
21244-36120	Jet, 1St Main	Carburetor ([08.1977 - 08.1979] (7708-7908)18R)
21249-36120	Jet, Air Bleed, No.2	Carburetor ([08.1977 - 08.1979] (7708-7908)18R)
21251-36110	Jet, 1St Main	Carburetor ([08.1977 - 08.1979] (7708-7908)18R)
21253-36110	Jet, 2Nd Main	Carburetor ([08.1977 - 08.1979] (7708-7908)18R)
21253-36120	Jet, 2Nd Main	Carburetor ([08.1977 - 08.1979] (7708-7908)18R)
21259-36120	Jet, Air Bleed	Carburetor ([08.1977 - 08.1979] (7708-7908)18R)
21291-36120	Glass, Level Gage	Carburetor ([08.1977 - 08.1979] (7708-7908)18R)
21299-36120	Net, Pump Filter	Carburetor ([08.1977 - 08.1979] (7708-7908)18R)
21302-36110	Jet, Power	Carburetor ([08.1977 - 08.1979] (7708-7908)18R)
21302-36120	Valve, Power	Carburetor ([08.1977 - 08.1979] (7708-7908)18R)
21302-73110	Jet, Power	Carburetor ([08.1977 - 08.1979] (7708-7908)18R)
21302-73140	Jet, Power	Carburetor ([08.1977 - 08.1979] (7708-7908)18R)
21308-36110	Valve Sub-assy, Discharge Check	Carburetor ([08.1977 - 08.1979] (7708-7908)18R)
21312-40020	Ball, Steel(For Auxiliary Acceleration Pump)	Carburetor ([08.1977 - 08.1979] (7708-7908)18R)
21353-44101	Plunger, Pump	Carburetor ([08.1977 - 08.1979] (7708-7908)18R)
21391-36120	Solenoid, Throttle Valve	Carburetor ([08.1977 - 08.1979] (7708-7908)18R)
21398-36120	Cover(For Thermostatic Valve)	Carburetor ([08.1977 - 08.1979] (7708-7908)18R)
21399-34400	Cover(For Auxiliary Acceleration Pump)	Carburetor ([08.1977 - 08.1979] (7708-7908)18R)
21505-36110	Valve, Check(For Auxiliary Acceleration Pump)	Carburetor ([08.1977 - 08.1979] (7708-7908)18R)
21561-36120	Weight, Pump Discharge	Carburetor ([08.1977 - 08.1979] (7708-7908)18R)
21576-36120	Clip, Pump Strainer	Carburetor ([08.1977 - 08.1979] (7708-7908)18R)
21611-40021	Gasket, Main Jet	Carburetor ([08.1977 - 08.1979] (7708-7908)18R)
21612-31100	Gasket, Power Valve	Carburetor ([08.1977 - 08.1979] (7708-7908)18R)
21612-36110	Gasket, Power Valve	Carburetor ([08.1977 - 08.1979] (7708-7908)18R)
21612-36120	Gasket, Power Valve	Carburetor ([08.1977 - 08.1979] (7708-7908)18R)
21614-34600	Gasket, Venturi	Carburetor ([08.1977 - 08.1979] (7708-7908)18R)
21614-36120	Gasket, Venturi	Carburetor ([08.1977 - 08.1979] (7708-7908)18R)
21622-34600	Gasket, Air Horn	Carburetor ([08.1977 - 08.1979] (7708-7908)18R)
21622-36120	Gasket, Air Horn	Carburetor ([08.1977 - 08.1979] (7708-7908)18R)
21625-36120	Gasket, Level Gage	Carburetor ([08.1977 - 08.1979] (7708-7908)18R)
21626-34600	Gasket(For Thermostatic Valve Cover)	Carburetor ([08.1977 - 08.1979] (7708-7908)18R)
21626-36120	Gasket(For Thermostatic Valve Cover)	Carburetor ([08.1977 - 08.1979] (7708-7908)18R)
21631-36120	Gasket, Main Guide	Carburetor ([08.1977 - 08.1979] (7708-7908)18R)
21633-44150	Gasket, Main Passage Plug	Carburetor ([08.1977 - 08.1979] (7708-7908)18R)
21637-36120	Gasket, Union Nipple	Carburetor ([08.1977 - 08.1979] (7708-7908)18R)
21638-36110	Gasket(For Auxiliary Acceleration Pump)	Carburetor ([08.1977 - 08.1979] (7708-7908)18R)
21639-34600	Gasket, Venturi	Carburetor ([08.1977 - 08.1979] (7708-7908)18R)
21639-36120	Gasket, Venturi	Carburetor ([08.1977 - 08.1979] (7708-7908)18R)
21655-31100	Ring, O(For Thermostatic Valve)	Carburetor ([08.1977 - 08.1979] (7708-7908)18R)
21655-36120	Ring, O(for Lifter Rod)	Carburetor ([08.1977 - 08.1979] (7708-7908)18R)
21735-36120	Spring, Pump Damping	Carburetor ([08.1977 - 08.1979] (7708-7908)18R)
21737-36110	Spring(For Auxiliary Acceleration Pump)	Carburetor ([08.1977 - 08.1979] (7708-7908)18R)
21747-36110	Spring(For Auxiliary Acceleration Pump Cover)	Carburetor ([08.1977 - 08.1979] (7708-7908)18R)
21776-36110	New Genuine Part	Carburetor ([08.1977 - 08.1979] (7708-7908)18R)
21776-44310	Plug, Main Passage(For Carburetor Jet)	Carburetor ([08.1977 - 08.1979] (7708-7908)18R)
21781-44150	Plug, Main Passage(For Carburetor Jet)	Carburetor ([08.1977 - 08.1979] (7708-7908)18R)
21787-31030	Plug, Pump Jet	Carburetor ([08.1977 - 08.1979] (7708-7908)18R)
21787-36120	Plug, Slow Passage	Carburetor ([08.1977 - 08.1979] (7708-7908)18R)
21816-36120	Screw, Small Venturi Set, No.1	Carburetor ([08.1977 - 08.1979] (7708-7908)18R)
21817-36120	New Genuine Part	Carburetor ([08.1977 - 08.1979] (7708-7908)18R)
21824-44120	Screw, Set(for 1st Idle Cam Follower Set)	Carburetor ([08.1977 - 08.1979] (7708-7908)18R)
21832-36110	Screw(for Choke Lever Adapter Set)	Carburetor ([08.1977 - 08.1979] (7708-7908)18R)
21832-36120	Screw, Set(For Carburetor Level Gage Clamp Set)	Carburetor ([08.1977 - 08.1979] (7708-7908)18R)
21832-44120	Screw, Set(for 1st Idle Cam Follower Set)	Carburetor ([08.1977 - 08.1979] (7708-7908)18R)
21834-36110	Screw, Set, No.2(for Carburetor Body Set)	Carburetor ([08.1977 - 08.1979] (7708-7908)18R)
21852-36110	Nut, Throttle Lever Set	Carburetor ([08.1977 - 08.1979] (7708-7908)18R)
21881-36120	Washer, Lock(for Throttle Shaft)	Carburetor ([08.1977 - 08.1979] (7708-7908)18R)
