Search › Model › RH11
RH11

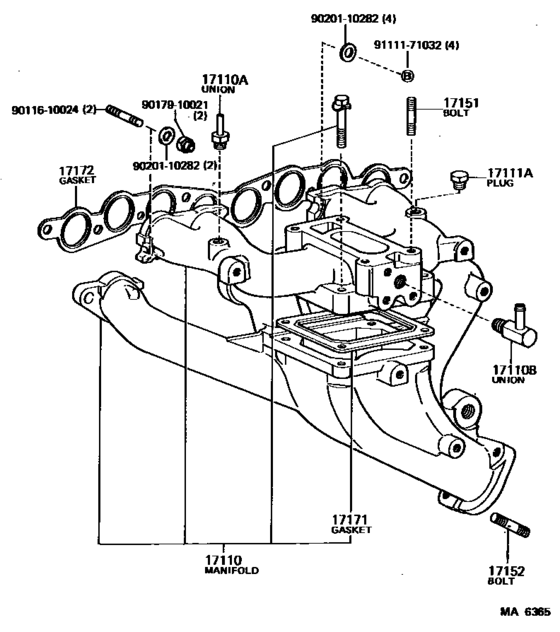

Manifold ([11.1982 - ] (8211- )12R) 15
| # | OEM | Part name |
|---|---|---|
| 17110 | 17110-31090 | Manifold Assy |
| 17110 | 17110-31120 | Manifold Assy |
| 17110 | 90407-09002 | Union(For Ventilation Hose To Manifold) |
| 17111 | 90345-51025 | Plug, W/head Taper Screw, No.2 |
| 17151 | 90116-08320 | Bolt, Stud(For Manifold To Carburetor) |
| 17152 | 90116-10042 | Bolt, Stud(For Manifold To Exhaust Pipe) |
| 17171 | 17171-31020 | Gasket, Intake To Exhaust Manifold |
| 17171 | 17171-31021 | Gasket, Intake To Exhaust Manifold |
| 17172 | 17172-31021 | Gasket, Manifold To Cylinder Head |
| 17172 | 17172-31030 | Gasket, Manifold To Cylinder Head |
| 9011610024 | 90116-10024 | Bolt, Stud(For Manifold To Cylinder Head) |
| 9017910021 | 90179-10021 | Nut |
| 9020110282 | 90201-10282 | Gasket(For Vacuum Pump Union) |
| 9111171032 | 91111-71032 | New Genuine Part |
| 9111171032 | 91112-71030 | New Genuine Part |
| OEM | Part name | Category |
|---|---|---|
| 17110-31090 | Manifold Assy | Manifold ([11.1982 - ] (8211- )12R) |
| 17110-31120 | Manifold Assy | Manifold ([11.1982 - ] (8211- )12R) |
| 17171-31020 | Gasket, Intake To Exhaust Manifold | Manifold ([11.1982 - ] (8211- )12R) |
| 17171-31021 | Gasket, Intake To Exhaust Manifold | Manifold ([11.1982 - ] (8211- )12R) |
| 17172-31021 | Gasket, Manifold To Cylinder Head | Manifold ([11.1982 - ] (8211- )12R) |
| 17172-31030 | Gasket, Manifold To Cylinder Head | Manifold ([11.1982 - ] (8211- )12R) |
| 90116-08320 | Bolt, Stud(For Manifold To Carburetor) | Manifold ([11.1982 - ] (8211- )12R) |
| 90116-10024 | Bolt, Stud(For Manifold To Cylinder Head) | Manifold ([11.1982 - ] (8211- )12R) |
| 90116-10042 | Bolt, Stud(For Manifold To Exhaust Pipe) | Manifold ([11.1982 - ] (8211- )12R) |
| 90179-10021 | Nut | Manifold ([11.1982 - ] (8211- )12R) |
| 90201-10282 | Gasket(For Vacuum Pump Union) | Manifold ([11.1982 - ] (8211- )12R) |
| 90345-51025 | Plug, W/head Taper Screw, No.2 | Manifold ([11.1982 - ] (8211- )12R) |
| 90407-09002 | Union(For Ventilation Hose To Manifold) | Manifold ([11.1982 - ] (8211- )12R) |
| 91111-71032 | New Genuine Part | Manifold ([11.1982 - ] (8211- )12R) |
| 91112-71030 | New Genuine Part | Manifold ([11.1982 - ] (8211- )12R) |
