RH11

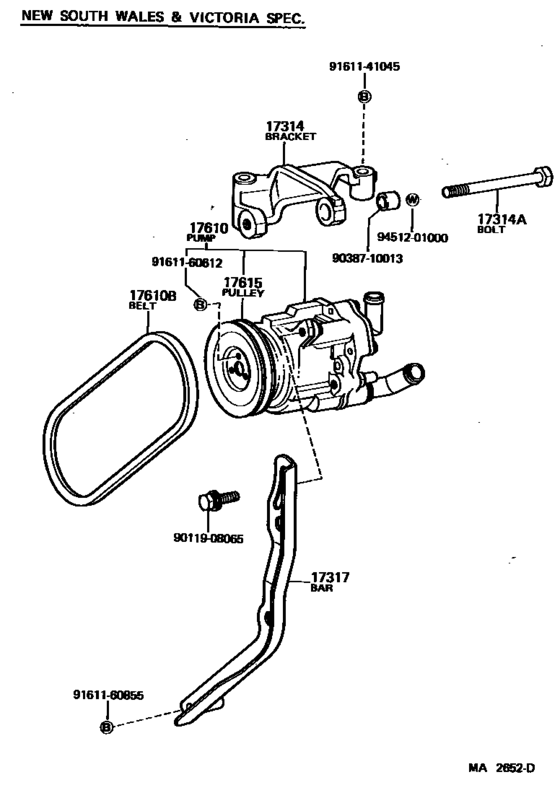

Air Pump ([11.1982 - ] (8211- )12R..ARL) 13
| # | OEM | Part name |
|---|---|---|
| 17314 | 17314-31010 | Bracket, Air Pump |
| 17314 | 91121-51090 | Shaft, Clutch Pedal |
| 17317 | 17031-31010 | Bar, Air Pump Adjusting, No.1 |
| 17610 | 17610-31030 | Pump Assy, Air |
| 17610 | 99321-00770 | Belt, V(For Air Pump) |
| 17615 | 17615-31010 | Pulley(For Air Pump) |
| 9011908065 | 90119-08065 | New Genuine Part |
| 9038710013 | 90387-10013 | Bush, Alternator Bracket |
| 9161141045 | 91611-41045 | Bolt(For Clutch Release Cylinder Setting) |
| 9161160612 | 91611-60612 | Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
| 9161160612 | 91611-G0612 | Bolt |
| 9161160855 | 91611-60855 | Bolt(For Rocker Support Set) |
| 9451201000 | 94512-01000 | Washer, No.1 (For Propeller Shaft & Differential Setting) |
| OEM | Part name | Category |
|---|---|---|
| 17031-31010 | Bar, Air Pump Adjusting, No.1 | Air Pump ([11.1982 - ] (8211- )12R..ARL) |
| 17314-31010 | Bracket, Air Pump | Air Pump ([11.1982 - ] (8211- )12R..ARL) |
| 17610-31030 | Pump Assy, Air | Air Pump ([11.1982 - ] (8211- )12R..ARL) |
| 17615-31010 | Pulley(For Air Pump) | Air Pump ([11.1982 - ] (8211- )12R..ARL) |
| 90119-08065 | New Genuine Part | Air Pump ([11.1982 - ] (8211- )12R..ARL) |
| 90387-10013 | Bush, Alternator Bracket | Air Pump ([11.1982 - ] (8211- )12R..ARL) |
| 91121-51090 | Shaft, Clutch Pedal | Air Pump ([11.1982 - ] (8211- )12R..ARL) |
| 91611-41045 | Bolt(For Clutch Release Cylinder Setting) | Air Pump ([11.1982 - ] (8211- )12R..ARL) |
| 91611-60612 | Bolt(For Dust Cover To Steering Knuckle Arm Setting) | Air Pump ([11.1982 - ] (8211- )12R..ARL) |
| 91611-60855 | Bolt(For Rocker Support Set) | Air Pump ([11.1982 - ] (8211- )12R..ARL) |
| 91611-G0612 | Bolt | Air Pump ([11.1982 - ] (8211- )12R..ARL) |
| 94512-01000 | Washer, No.1 (For Propeller Shaft & Differential Setting) | Air Pump ([11.1982 - ] (8211- )12R..ARL) |
| 99321-00770 | Belt, V(For Air Pump) | Air Pump ([11.1982 - ] (8211- )12R..ARL) |
