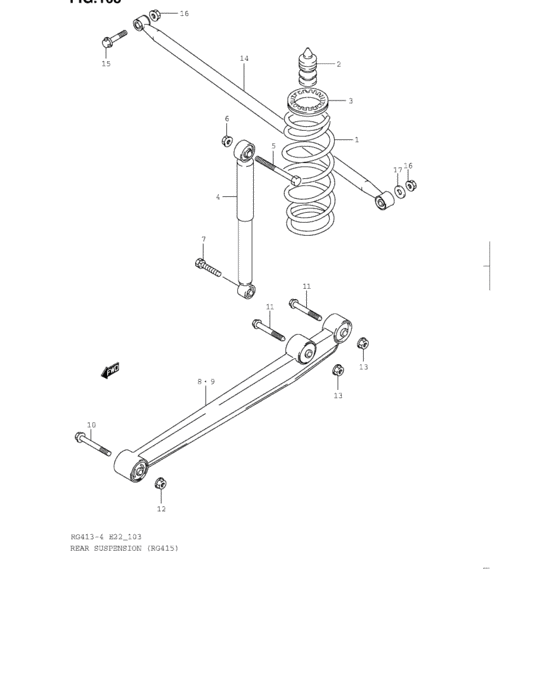

Rear suspension (RG415)
22
| # | OEM | Part name |
|---|
| 1 |
41311-60J00-000 |
SPRING,REAR COIL |
| 2 |
42250-60J00-000 |
STOPPER,RR BUMP |
| 3 |
41341-79A00-000 |
SEAT,REAR SPRING UPPER |
| 4 |
41800-60J00-000 |
ABSORBER ASSY,RR SHOCK |
| 5 |
41981-76G01-000 |
BOLT,RR SHK ABSORBER UPR |
| 6 |
08316-10123-000 |
Nut |
| 6 |
08316-1012A-000 |
NUT |
| 7 |
09117-12014-000 |
BOLT(12X57) |
| 8 |
46201-60J00-000 |
アームアッシ,リヤトレーリング,ライト |
| 8 |
02162-0620C-000 |
SCREW |
| 8 |
46200-60J00-000 |
ARM ASSY,RR TRAILING |
| 8 |
02162-06203-000 |
Bolt |
| 9 |
46202-60J00-000 |
アームアッシ,リヤトレーリング,レフト |
| 10 |
09103-12044-000 |
BOLT(12X87) |
| 11 |
09103-12064-000 |
ボルト,12X80 |
| 11 |
09103-12068-000 |
BOLT(12X80) |
| 13 |
46292-60J00-000 |
ナット |
| 13 |
09159-12068-000 |
NUT |
| 14 |
46300-83E00-000 |
Rod assy,lateral |
| 14 |
46300-83E01-000 |
ROD ASSY,LATERAL |
| 15 |
09103-12051-000 |
BOLT(12X50) |
| 17 |
09164-12017-000 |
WASHER |
| OEM |
Part name |
Category |
| 02162-06203-000 |
Bolt |
Rear suspension (RG415) |
| 02162-0620C-000 |
SCREW |
Rear suspension (RG415) |
| 08316-10123-000 |
Nut |
Rear suspension (RG415) |
| 08316-1012A-000 |
NUT |
Rear suspension (RG415) |
| 09103-12044-000 |
BOLT(12X87) |
Rear suspension (RG415) |
| 09103-12051-000 |
BOLT(12X50) |
Rear suspension (RG415) |
| 09103-12064-000 |
ボルト,12X80 |
Rear suspension (RG415) |
| 09103-12068-000 |
BOLT(12X80) |
Rear suspension (RG415) |
| 09117-12014-000 |
BOLT(12X57) |
Rear suspension (RG415) |
| 09159-12068-000 |
NUT |
Rear suspension (RG415) |
| 09164-12017-000 |
WASHER |
Rear suspension (RG415) |
| 41311-60J00-000 |
SPRING,REAR COIL |
Rear suspension (RG415) |
| 41341-79A00-000 |
SEAT,REAR SPRING UPPER |
Rear suspension (RG415) |
| 41800-60J00-000 |
ABSORBER ASSY,RR SHOCK |
Rear suspension (RG415) |
| 41981-76G01-000 |
BOLT,RR SHK ABSORBER UPR |
Rear suspension (RG415) |
| 42250-60J00-000 |
STOPPER,RR BUMP |
Rear suspension (RG415) |
| 46200-60J00-000 |
ARM ASSY,RR TRAILING |
Rear suspension (RG415) |
| 46201-60J00-000 |
アームアッシ,リヤトレーリング,ライト |
Rear suspension (RG415) |
| 46202-60J00-000 |
アームアッシ,リヤトレーリング,レフト |
Rear suspension (RG415) |
| 46292-60J00-000 |
ナット |
Rear suspension (RG415) |
| 46300-83E00-000 |
Rod assy,lateral |
Rear suspension (RG415) |
| 46300-83E01-000 |
ROD ASSY,LATERAL |
Rear suspension (RG415) |
