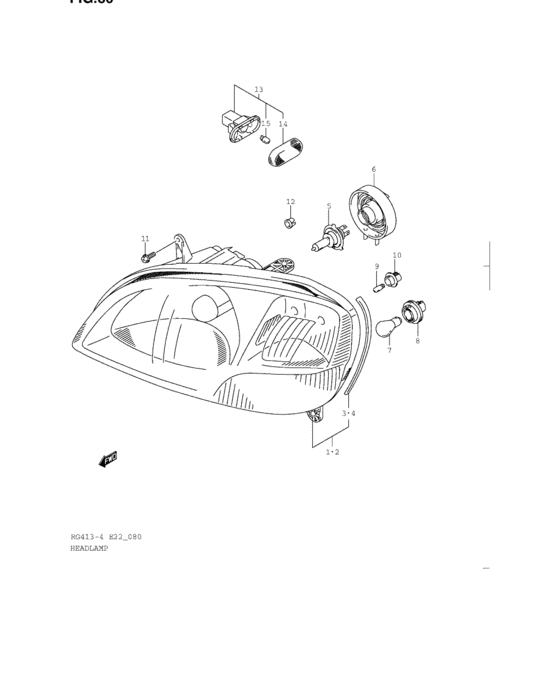

Headlamp (HEADLAMP)
27
| # | OEM | Part name |
|---|
| 1 |
35120-80G31-000 |
UNIT,HEADLAMP,R |
| 1 |
35120-80G71-000 |
UNIT,HEADLAMP,R |
| 1 |
35120-80G11-000 |
UNIT,HEADLAMP,R |
| 1 |
35120-80G51-000 |
UNIT,HEADLAMP,R |
| 1 |
35120-80G21-000 |
UNIT,HEADLAMP,R |
| 1 |
35120-80G41-000 |
UNIT,HEADLAMP,R |
| 1 |
35120-80G81-000 |
UNIT,HEADLAMP,R |
| 2 |
35320-80G31-000 |
UNIT,HEADLAMP,L |
| 2 |
35320-80G71-000 |
UNIT,HEADLAMP,R |
| 2 |
35320-80G11-000 |
UNIT,HEADLAMP,L |
| 2 |
35320-80G51-000 |
UNIT,HEADLAMP,L |
| 2 |
35320-80G21-000 |
UNIT,HEADLAMP,L |
| 2 |
35320-80G41-000 |
UNIT,HEADLAMP,L |
| 2 |
35320-80G81-000 |
UNIT,HEADLAMP,L |
| 3 |
35121-80G10-000 |
RUBBER,END,R |
| 4 |
35321-80G10-000 |
RUBBER,END,L |
| 5 |
09471-12182-000 |
BULB(12V60/55W,H4) |
| 6 |
35125-75F00-000 |
COVER,SOCKET |
| 7 |
09471-12045-000 |
BULB(12V21W) |
| 8 |
35618-80G10-000 |
SOCKET,TURN LAMP |
| 8 |
35618-74G00-000 |
SOCKET,TURN LAMP |
| 9 |
09471-12216-000 |
BULB(12V5W) - Bulb (12v5w) |
| 10 |
36118-80G10-000 |
SOCKET,POSITION LAMP |
| 11 |
09122-76001-000 |
SCREW(6X16) |
| 12 |
35153-50G00-000 |
FASTENER,LAMP |
| 13 |
36410-75F01-000 |
LAMP ASSY,SIDE TURN SIG |
| 14 |
36412-75F00-000 |
LENS,SIDE TURN |
| OEM |
Part name |
Category |
| 09122-76001-000 |
SCREW(6X16) |
Headlamp (HEADLAMP) |
| 09471-12045-000 |
BULB(12V21W) |
Headlamp (HEADLAMP) |
| 09471-12182-000 |
BULB(12V60/55W,H4) |
Headlamp (HEADLAMP) |
| 09471-12216-000 |
BULB(12V5W) - Bulb (12v5w) |
Headlamp (HEADLAMP) |
| 35120-80G11-000 |
UNIT,HEADLAMP,R |
Headlamp (HEADLAMP) |
| 35120-80G21-000 |
UNIT,HEADLAMP,R |
Headlamp (HEADLAMP) |
| 35120-80G31-000 |
UNIT,HEADLAMP,R |
Headlamp (HEADLAMP) |
| 35120-80G41-000 |
UNIT,HEADLAMP,R |
Headlamp (HEADLAMP) |
| 35120-80G51-000 |
UNIT,HEADLAMP,R |
Headlamp (HEADLAMP) |
| 35120-80G71-000 |
UNIT,HEADLAMP,R |
Headlamp (HEADLAMP) |
| 35120-80G81-000 |
UNIT,HEADLAMP,R |
Headlamp (HEADLAMP) |
| 35121-80G10-000 |
RUBBER,END,R |
Headlamp (HEADLAMP) |
| 35125-75F00-000 |
COVER,SOCKET |
Headlamp (HEADLAMP) |
| 35153-50G00-000 |
FASTENER,LAMP |
Headlamp (HEADLAMP) |
| 35320-80G11-000 |
UNIT,HEADLAMP,L |
Headlamp (HEADLAMP) |
| 35320-80G21-000 |
UNIT,HEADLAMP,L |
Headlamp (HEADLAMP) |
| 35320-80G31-000 |
UNIT,HEADLAMP,L |
Headlamp (HEADLAMP) |
| 35320-80G41-000 |
UNIT,HEADLAMP,L |
Headlamp (HEADLAMP) |
| 35320-80G51-000 |
UNIT,HEADLAMP,L |
Headlamp (HEADLAMP) |
| 35320-80G71-000 |
UNIT,HEADLAMP,R |
Headlamp (HEADLAMP) |
| 35320-80G81-000 |
UNIT,HEADLAMP,L |
Headlamp (HEADLAMP) |
| 35321-80G10-000 |
RUBBER,END,L |
Headlamp (HEADLAMP) |
| 35618-74G00-000 |
SOCKET,TURN LAMP |
Headlamp (HEADLAMP) |
| 35618-80G10-000 |
SOCKET,TURN LAMP |
Headlamp (HEADLAMP) |
| 36118-80G10-000 |
SOCKET,POSITION LAMP |
Headlamp (HEADLAMP) |
| 36410-75F01-000 |
LAMP ASSY,SIDE TURN SIG |
Headlamp (HEADLAMP) |
| 36412-75F00-000 |
LENS,SIDE TURN |
Headlamp (HEADLAMP) |
