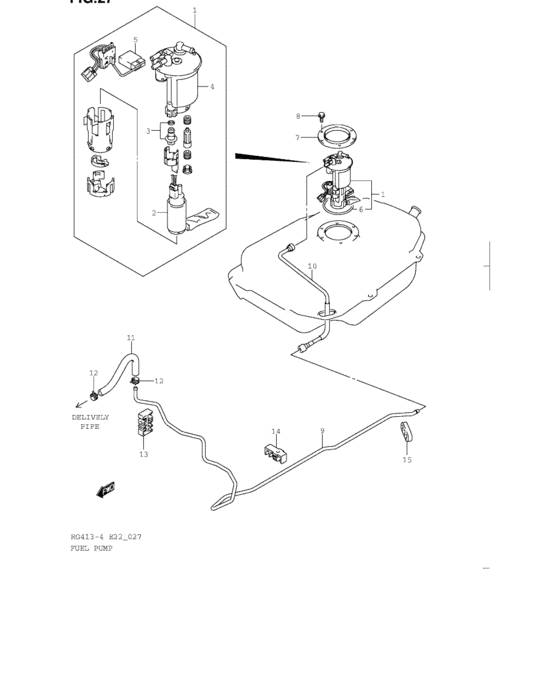

Fuel Pump (FUEL PUMP)
20
| # | OEM | Part name |
|---|
| 1 |
15100-78851-000 |
ポンプセット,フューエル |
| 1 |
15100-78852-000 |
PUMP SET,FUEL |
| 2 |
15110-65G00-000 |
PUMP ASSY,FUEL |
| 3 |
15610-76G50-000 |
REGULATOR ASSY,FUEL |
| 4 |
15310-78F00-000 |
FILTER ASSY |
| 4 |
15310-78F01-000 |
FILTER ASSY,FUEL |
| 5 |
34810-78F00-000 |
GAUGE ASSY,LEVEL |
| 6 |
15111-50G01-000 |
GASKET,FUEL PUMP |
| 7 |
15121-50G00-000 |
PLATE,FUEL PUMP |
| 8 |
02162-06103-000 |
Bolt - Bolt, bracket |
| 8 |
02162-0610A-000 |
SCREW |
| 9 |
15811-80G00-000 |
PIPE,FUEL |
| 9 |
15811-60J00-000 |
Pipe,fuel |
| 10 |
15812-78F01-000 |
PIPE,FUEL PUMP TO PIPE |
| 11 |
15815-80G00-000 |
HOSE,FUEL PIPE TO ENG |
| 11 |
15815-86G01-000 |
HOSE,FUEL PIPE TO ENG |
| 12 |
09401-13419-000 |
CLIP |
| 13 |
15882-80G00-000 |
CLAMP,FUEL PIPE |
| 14 |
15893-83G01-000 |
CLAMP,FUEL PIPE |
| 15 |
15438-76G00-000 |
CUSHION,FUEL PIPE |
| OEM |
Part name |
Category |
| 02162-06103-000 |
Bolt - Bolt, bracket |
Fuel Pump (FUEL PUMP) |
| 02162-0610A-000 |
SCREW |
Fuel Pump (FUEL PUMP) |
| 09401-13419-000 |
CLIP |
Fuel Pump (FUEL PUMP) |
| 15100-78851-000 |
ポンプセット,フューエル |
Fuel Pump (FUEL PUMP) |
| 15100-78852-000 |
PUMP SET,FUEL |
Fuel Pump (FUEL PUMP) |
| 15110-65G00-000 |
PUMP ASSY,FUEL |
Fuel Pump (FUEL PUMP) |
| 15111-50G01-000 |
GASKET,FUEL PUMP |
Fuel Pump (FUEL PUMP) |
| 15121-50G00-000 |
PLATE,FUEL PUMP |
Fuel Pump (FUEL PUMP) |
| 15310-78F00-000 |
FILTER ASSY |
Fuel Pump (FUEL PUMP) |
| 15310-78F01-000 |
FILTER ASSY,FUEL |
Fuel Pump (FUEL PUMP) |
| 15438-76G00-000 |
CUSHION,FUEL PIPE |
Fuel Pump (FUEL PUMP) |
| 15610-76G50-000 |
REGULATOR ASSY,FUEL |
Fuel Pump (FUEL PUMP) |
| 15811-60J00-000 |
Pipe,fuel |
Fuel Pump (FUEL PUMP) |
| 15811-80G00-000 |
PIPE,FUEL |
Fuel Pump (FUEL PUMP) |
| 15812-78F01-000 |
PIPE,FUEL PUMP TO PIPE |
Fuel Pump (FUEL PUMP) |
| 15815-80G00-000 |
HOSE,FUEL PIPE TO ENG |
Fuel Pump (FUEL PUMP) |
| 15815-86G01-000 |
HOSE,FUEL PIPE TO ENG |
Fuel Pump (FUEL PUMP) |
| 15882-80G00-000 |
CLAMP,FUEL PIPE |
Fuel Pump (FUEL PUMP) |
| 15893-83G01-000 |
CLAMP,FUEL PIPE |
Fuel Pump (FUEL PUMP) |
| 34810-78F00-000 |
GAUGE ASSY,LEVEL |
Fuel Pump (FUEL PUMP) |
