Search › Model › RG415
RG415

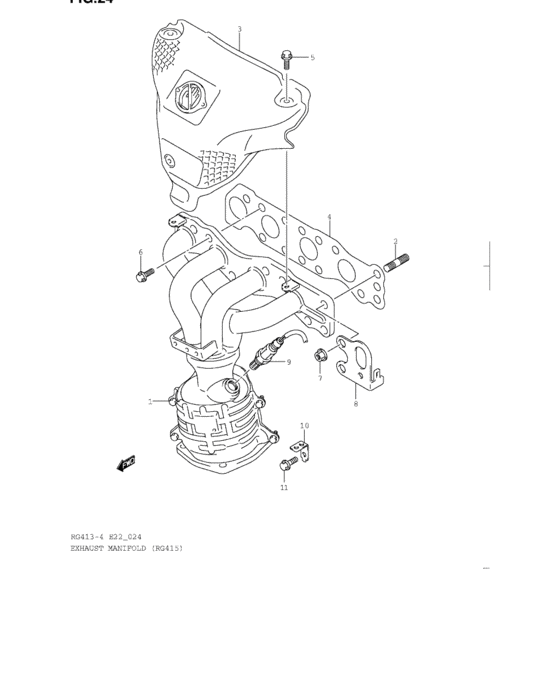

Exhaust manifold (RG415) 22
| # | OEM | Part name |
|---|---|---|
| 1 | 14110-70H01-000 | マニホールド,エキゾースト |
| 1 | 14110-70H05-H02 | MANIFOLD,EXH |
| 2 | 14118-65D00-000 | STUD BOLT |
| 2 | 14118-63J00-000 | STUD BOLT,EXH MANF |
| 3 | 14120-70H01-000 | カバー,エキゾーストマニホールド |
| 3 | 14120-70H02-000 | COVER,EXH MANF |
| 4 | 14140-69G00-000 | GASKET EXHAUST MANIFOLD |
| 4 | 14140-69G02-000 | GASKET,EXH MANF |
| 5 | 09103-06186-000 | Bolt - Bolt (6x16) |
| 5 | 01550-06167-000 | Bolt |
| 6 | 01550-10253-000 | Bolt - Bolt, rr swgarm bracket |
| 6 | 01550-1025B-000 | Bolt - Bolt, rr swgarm bracket, l |
| 6 | 01550-1025A-000 | Bolt - Bolt, drive gear |
| 7 | 08316-10103-000 | Nut |
| 7 | 08316-1010B-000 | NUT |
| 8 | 11851-70H01-000 | HOOK,ENGINE |
| 9 | 18213-70H01-000 | SENSOR ASSYOXYGEN |
| 9 | 18213-70H02-000 | SENSOR,OXYGEN |
| 10 | 18214-60J00-000 | BRACKET,OXYGEN SENSOR |
| 11 | 01550-06103-000 | Bolt, front |
| 11 | 01550-0610B-000 | Bolt |
| 11 | 01550-0610A-000 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 01550-06103-000 | Bolt, front | Exhaust manifold (RG415) |
| 01550-0610A-000 | Bolt | Exhaust manifold (RG415) |
| 01550-0610B-000 | Bolt | Exhaust manifold (RG415) |
| 01550-06167-000 | Bolt | Exhaust manifold (RG415) |
| 01550-10253-000 | Bolt - Bolt, rr swgarm bracket | Exhaust manifold (RG415) |
| 01550-1025A-000 | Bolt - Bolt, drive gear | Exhaust manifold (RG415) |
| 01550-1025B-000 | Bolt - Bolt, rr swgarm bracket, l | Exhaust manifold (RG415) |
| 08316-10103-000 | Nut | Exhaust manifold (RG415) |
| 08316-1010B-000 | NUT | Exhaust manifold (RG415) |
| 09103-06186-000 | Bolt - Bolt (6x16) | Exhaust manifold (RG415) |
| 11851-70H01-000 | HOOK,ENGINE | Exhaust manifold (RG415) |
| 14110-70H01-000 | マニホールド,エキゾースト | Exhaust manifold (RG415) |
| 14110-70H05-H02 | MANIFOLD,EXH | Exhaust manifold (RG415) |
| 14118-63J00-000 | STUD BOLT,EXH MANF | Exhaust manifold (RG415) |
| 14118-65D00-000 | STUD BOLT | Exhaust manifold (RG415) |
| 14120-70H01-000 | カバー,エキゾーストマニホールド | Exhaust manifold (RG415) |
| 14120-70H02-000 | COVER,EXH MANF | Exhaust manifold (RG415) |
| 14140-69G00-000 | GASKET EXHAUST MANIFOLD | Exhaust manifold (RG415) |
| 14140-69G02-000 | GASKET,EXH MANF | Exhaust manifold (RG415) |
| 18213-70H01-000 | SENSOR ASSYOXYGEN | Exhaust manifold (RG415) |
| 18213-70H02-000 | SENSOR,OXYGEN | Exhaust manifold (RG415) |
| 18214-60J00-000 | BRACKET,OXYGEN SENSOR | Exhaust manifold (RG415) |
