RG415

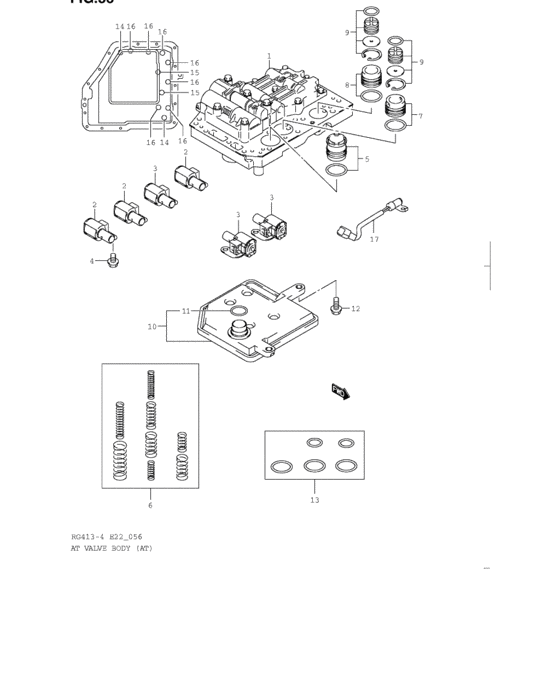

At valve body (AT) 20
| # | OEM | Part name |
|---|---|---|
| 1 | 26500-78F11-000 | ボディアッシ,トランスミッションバルブ |
| 1 | 26500-78F12-000 | BODY ASSY,T/M VALVE |
| 2 | 24751-78F10-000 | SOLENOID,BO |
| 3 | 24752-78F10-000 | SOLENOID,CO LOW REGISTER |
| 4 | 24755-75F10-000 | Bolt |
| 5 | 26531-75FT0-000 | PISTON SET,ACC |
| 6 | 26532-78FT0-000 | SPRING SET,ACC PISTON |
| 7 | 26541-75FT0-000 | PISTON SET,1-2 BRAKE ACC |
| 8 | 26541-78FT0-000 | PISTON SET,1ST&2ND BK ACC |
| 9 | 26542-75FT0-000 | PISTON SET,O/D BRAKE ACC |
| 10 | 26570-83E10-000 | STRAINER ASSY,T/M OIL |
| 11 | 26572-75F10-000 | O-RING,STRAINER |
| 12 | 01550-06163-000 | Bolt |
| 12 | 01550-0616B-000 | Bolt |
| 12 | 01550-0616A-000 | Bolt |
| 13 | 26680-78FT0-000 | O-RING SET,ACC |
| 14 | 26586-85500-000 | BOLT,VALVE BODY NO.2 |
| 15 | 26588-85500-000 | BOLT,VALVE BODY NO.1 |
| 16 | 26589-85500-000 | BOLT,VALVE BODY NO.4 |
| 17 | 26730-81A10-000 | SENSOR ASSY,TEMP |
| OEM | Part name | Category |
|---|---|---|
| 01550-06163-000 | Bolt | At valve body (AT) |
| 01550-0616A-000 | Bolt | At valve body (AT) |
| 01550-0616B-000 | Bolt | At valve body (AT) |
| 24751-78F10-000 | SOLENOID,BO | At valve body (AT) |
| 24752-78F10-000 | SOLENOID,CO LOW REGISTER | At valve body (AT) |
| 24755-75F10-000 | Bolt | At valve body (AT) |
| 26500-78F11-000 | ボディアッシ,トランスミッションバルブ | At valve body (AT) |
| 26500-78F12-000 | BODY ASSY,T/M VALVE | At valve body (AT) |
| 26531-75FT0-000 | PISTON SET,ACC | At valve body (AT) |
| 26532-78FT0-000 | SPRING SET,ACC PISTON | At valve body (AT) |
| 26541-75FT0-000 | PISTON SET,1-2 BRAKE ACC | At valve body (AT) |
| 26541-78FT0-000 | PISTON SET,1ST&2ND BK ACC | At valve body (AT) |
| 26542-75FT0-000 | PISTON SET,O/D BRAKE ACC | At valve body (AT) |
| 26570-83E10-000 | STRAINER ASSY,T/M OIL | At valve body (AT) |
| 26572-75F10-000 | O-RING,STRAINER | At valve body (AT) |
| 26586-85500-000 | BOLT,VALVE BODY NO.2 | At valve body (AT) |
| 26588-85500-000 | BOLT,VALVE BODY NO.1 | At valve body (AT) |
| 26589-85500-000 | BOLT,VALVE BODY NO.4 | At valve body (AT) |
| 26680-78FT0-000 | O-RING SET,ACC | At valve body (AT) |
| 26730-81A10-000 | SENSOR ASSY,TEMP | At valve body (AT) |
