RG415

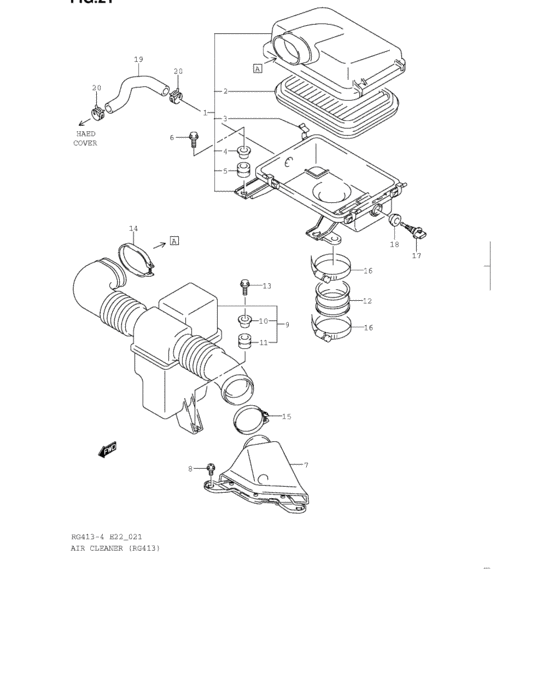

Air cleaner (RG413) 24
| # | OEM | Part name |
|---|---|---|
| 1 | 13700-80GA1-000 | CLEANER ASSY,AIR |
| 2 | 13780-80GA0-000 | ELEMENT,AIR CLEANER |
| 3 | 13755-80GA0-000 | CLIP,AIR CLEANER CASE |
| 4 | 09169-09008-000 | WASHER |
| 5 | 09320-11017-000 | CUSHION |
| 6 | 01550-06253-000 | Bolt (6x25) |
| 6 | 01550-0625B-000 | Bolt - Bolt, head cover |
| 6 | 01550-0625A-000 | Bolt |
| 7 | 13765-70H00-000 | PIPE,AIR CLNR SUCTION |
| 8 | 02162-06123-000 | Bolt (6x12) |
| 8 | 02162-0612B-000 | SCREW - Bolt |
| 8 | 02162-0612A-000 | SCREW - Bolt, bracket |
| 9 | 13870-80GA0-000 | PIPE,AIR INTAKE |
| 12 | 13881-80G00-000 | HOSE,AIR CLEANER OUTLET |
| 13 | 02162-06203-000 | Bolt |
| 13 | 02162-0620C-000 | SCREW |
| 14 | 13875-80G00-000 | CLAMP,AIR CLEANER HOSE |
| 15 | 09402-58208-000 | CLAMP |
| 16 | 09402-69511-000 | CLAMP - Clamp (thb) |
| 17 | 13650-52G00-000 | SENSOR,INLET AIR TEMP - Sensor, inlet air temp |
| 18 | 13655-77E00-000 | GROMMET,AIR TEMP SENSOR - Grommet, air temp sensor |
| 18 | 13655-77E10-000 | Grommet,air Temp Sensor |
| 19 | 11191-80GA0-000 | HOSE,BREATHER |
| 20 | 09401-18404-000 | CLIP |
| OEM | Part name | Category |
|---|---|---|
| 01550-06253-000 | Bolt (6x25) | Air cleaner (RG413) |
| 01550-0625A-000 | Bolt | Air cleaner (RG413) |
| 01550-0625B-000 | Bolt - Bolt, head cover | Air cleaner (RG413) |
| 02162-06123-000 | Bolt (6x12) | Air cleaner (RG413) |
| 02162-0612A-000 | SCREW - Bolt, bracket | Air cleaner (RG413) |
| 02162-0612B-000 | SCREW - Bolt | Air cleaner (RG413) |
| 02162-06203-000 | Bolt | Air cleaner (RG413) |
| 02162-0620C-000 | SCREW | Air cleaner (RG413) |
| 09169-09008-000 | WASHER | Air cleaner (RG413) |
| 09320-11017-000 | CUSHION | Air cleaner (RG413) |
| 09401-18404-000 | CLIP | Air cleaner (RG413) |
| 09402-58208-000 | CLAMP | Air cleaner (RG413) |
| 09402-69511-000 | CLAMP - Clamp (thb) | Air cleaner (RG413) |
| 11191-80GA0-000 | HOSE,BREATHER | Air cleaner (RG413) |
| 13650-52G00-000 | SENSOR,INLET AIR TEMP - Sensor, inlet air temp | Air cleaner (RG413) |
| 13655-77E00-000 | GROMMET,AIR TEMP SENSOR - Grommet, air temp sensor | Air cleaner (RG413) |
| 13655-77E10-000 | Grommet,air Temp Sensor | Air cleaner (RG413) |
| 13700-80GA1-000 | CLEANER ASSY,AIR | Air cleaner (RG413) |
| 13755-80GA0-000 | CLIP,AIR CLEANER CASE | Air cleaner (RG413) |
| 13765-70H00-000 | PIPE,AIR CLNR SUCTION | Air cleaner (RG413) |
| 13780-80GA0-000 | ELEMENT,AIR CLEANER | Air cleaner (RG413) |
| 13870-80GA0-000 | PIPE,AIR INTAKE | Air cleaner (RG413) |
| 13875-80G00-000 | CLAMP,AIR CLEANER HOSE | Air cleaner (RG413) |
| 13881-80G00-000 | HOSE,AIR CLEANER OUTLET | Air cleaner (RG413) |
