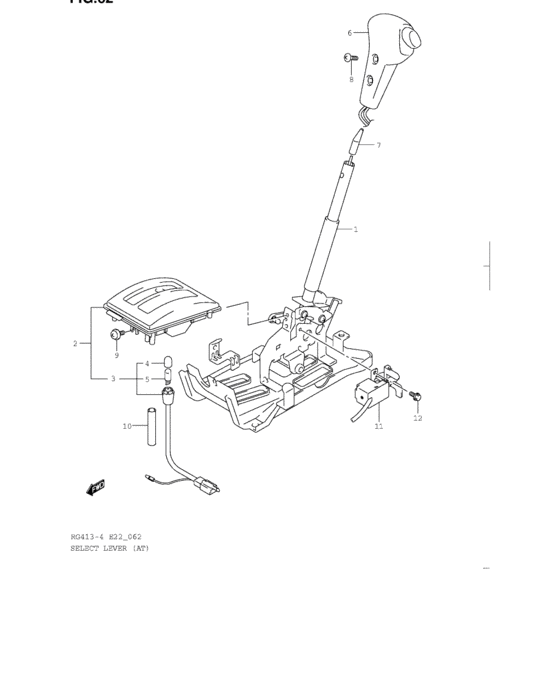

Select lever (AT)
19
| # | OEM | Part name |
|---|
| 1 |
28110-80G50-000 |
Lever assy, select |
| 1 |
28110-80G70-000 |
LEVER ASSY,SELECT |
| 1 |
28110-70H10-000 |
LEVER ASSY,SELECT |
| 2 |
28150-78F50-000 |
INDICATOR ASSY,SELECT |
| 2 |
28150-78F10-000 |
INDICATOR ASSY,SELECT |
| 3 |
28159-78F10-000 |
LAMP ASSY,INDICATOR |
| 4 |
28182-61A00-000 |
FILTER,BULB |
| 5 |
09471-12077-000 |
BULB(12V1.7W,T10,WB121) |
| 6 |
28160-83E50-000 |
KNOB ASSY,SEL LEVER |
| 6 |
28160-78F10-000 |
KNOB ASSY,SEL LEVER |
| 6 |
28160-78F11-000 |
KNOB ASSY,SEL LEVER |
| 7 |
28164-57B00-000 |
GUIDE,DETENT RELEASE |
| 7 |
28164-76G11-000 |
GUIDE,DETENT RELEASE ROD |
| 8 |
09125-05117-000 |
SCREW(5X6) - Screw (5x6) |
| 9 |
02142-05103-000 |
Screw 5x10 |
| 9 |
02142-0510B-000 |
SCREW - Bolt |
| 10 |
28118-64B61-000 |
TUBE,SWITCH WIRE HARNESS |
| 11 |
28610-78F10-000 |
SOLENOID,SHIFT LOCK |
| 12 |
09118-05006-000 |
BOLT(5X8) |
| OEM |
Part name |
Category |
| 02142-05103-000 |
Screw 5x10 |
Select lever (AT) |
| 02142-0510B-000 |
SCREW - Bolt |
Select lever (AT) |
| 09118-05006-000 |
BOLT(5X8) |
Select lever (AT) |
| 09125-05117-000 |
SCREW(5X6) - Screw (5x6) |
Select lever (AT) |
| 09471-12077-000 |
BULB(12V1.7W,T10,WB121) |
Select lever (AT) |
| 28110-70H10-000 |
LEVER ASSY,SELECT |
Select lever (AT) |
| 28110-80G50-000 |
Lever assy, select |
Select lever (AT) |
| 28110-80G70-000 |
LEVER ASSY,SELECT |
Select lever (AT) |
| 28118-64B61-000 |
TUBE,SWITCH WIRE HARNESS |
Select lever (AT) |
| 28150-78F10-000 |
INDICATOR ASSY,SELECT |
Select lever (AT) |
| 28150-78F50-000 |
INDICATOR ASSY,SELECT |
Select lever (AT) |
| 28159-78F10-000 |
LAMP ASSY,INDICATOR |
Select lever (AT) |
| 28160-78F10-000 |
KNOB ASSY,SEL LEVER |
Select lever (AT) |
| 28160-78F11-000 |
KNOB ASSY,SEL LEVER |
Select lever (AT) |
| 28160-83E50-000 |
KNOB ASSY,SEL LEVER |
Select lever (AT) |
| 28164-57B00-000 |
GUIDE,DETENT RELEASE |
Select lever (AT) |
| 28164-76G11-000 |
GUIDE,DETENT RELEASE ROD |
Select lever (AT) |
| 28182-61A00-000 |
FILTER,BULB |
Select lever (AT) |
| 28610-78F10-000 |
SOLENOID,SHIFT LOCK |
Select lever (AT) |
