RG413

Suzuki IGNIS · 3,600 parts · 180 categories

3,600 items

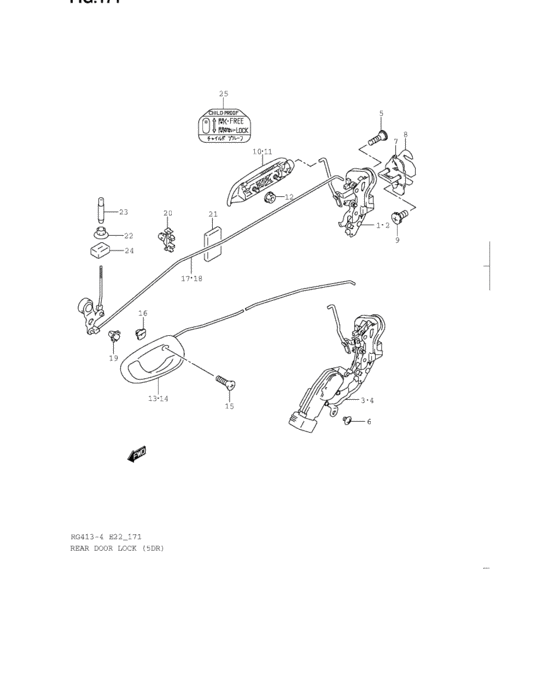

Rear door lock (5DR) 86

#	OEM	Part name
1	82301-75G20-000	Latch assy,rear door,r
2	82302-75G20-000	LATCH ASSY,RR DR,L
3	82301-83G00-000	ラッチアッシ,リヤドア,ライト
3	82301-83G01-000	LATCH ASSY,RR DR,R
4	82302-83G00-000	ラッチアッシ,リヤドア,レフト
4	82302-83G01-000	LATCH ASSY,RR DR,L
5	09137-06028-000	SCREW(6X18)
6	02162-06123-000	Bolt (6x12)
6	02162-0612B-000	SCREW - Bolt
6	02162-0612A-000	SCREW - Bolt, bracket
7	82610-75F00-000	STRIKER,DOOR LATCH
8	78199-78000-000	SPACER,DOOR LOCK STRIKER
9	09137-08006-000	Screw - Screw (8x18)
9	09137-08011-000	SCREW(8X18)
9	09137-08004-000	SCREW(8X18)
10	82801-81A01-5PK	HANDLE,SIDE DOOR OUT,R
10	82801-81A02-5PK	HANDLE ASSY,FR DR OUT,R(BLACK)
10	82801-81A03-5PK	HANDLE ASSY,FR DR OUT,R
10	82801-81A04-5PK	Handle Assy,fr Dr Out,r(Black)
10	82801-81A01-ZJ3	ハンドルアッシ,ドアアウト,ライト(ブラック)
10	82801-81A51-ZJ3	HANDLE,SIDE DR OUT,R
10	82801-81A52-ZJ3	HANDLE,SIDE DR OUT,R
10	82801-81A53-ZJ3	Handle Assy,fr Dr Out,r
10	82801-81A01-ZY2	Handle assy, dr out rh - Yellow
10	82801-81A50-ZY2	HANDLE,SIDE DR OUT,R
10	82801-81A51-ZY2	HANDLE,SIDE DR OUT,R
10	82801-81A01-Z2J	ハンドルアッシ,ドアアウト,ライト(ブルー)
10	82801-81A50-Z2J	HANDLE,SIDE DR OUT,R
10	82801-81A51-Z2J	HANDLE,SIDE DR OUT,R
10	82801-81A52-Z2J	HANDLE,SIDE DR OUT,R
10	82801-81A53-Z2J	Handle Assy,fr Dr Out,r
10	82801-81A01-Z2S	Handle, door out rh (silver)
10	82801-81A51-Z2S	HANDLE,SIDE DR OUT,R
10	82801-81A52-Z2S	HANDLE,SIDE DR OUT,R
10	82801-81A53-Z2S	Handle Assy,fr Dr Out,r
10	82801-81A01-Z9T	ハンドルアッシ,ドアアウト,ライト(レッド)
10	82801-81A51-Z9T	HANDLE,SIDE DR OUT,R
10	82801-81A52-Z9T	HANDLE,SIDE DR OUT,R
10	82801-81A53-Z9T	Handle Assy,fr Dr Out,r
10	82801-81A01-26U	Handle, door out rh (white)
10	82801-81A51-26U	HANDLE,SIDE DR OUT,R
10	82801-81A52-26U	HANDLE,SIDE DR OUT,R
10	82801-81A53-26U	Handle Assy,fr Dr Out,r
11	82802-81A01-5PK	HANDLE,SIDE DOOR OUT,L
11	82802-81A02-5PK	HANDLE ASSY,FR DR OUT,L(BLACK)
11	82802-81A03-5PK	HANDLE ASSY,FR DR OUT,L
11	82802-81A04-5PK	Handle Assy,fr Dr Out,l(Black)
11	82802-81A01-ZJ3	ハンドルアッシ,ドアアウト,レフト(ブラック)
11	82802-81A51-ZJ3	HANDLE,SIDE DR OUT,L
11	82802-81A52-ZJ3	HANDLE,SIDE DR OUT,L
11	82802-81A53-ZJ3	Handle Assy,fr Dr Out,l
11	82802-81A01-ZY2	Handle assy, dr out lh - Yellow
11	82802-81A50-ZY2	HANDLE,SIDE DR OUT,L
11	82802-81A01-Z2J	ハンドルアッシ,ドアアウト,レフト(ブルー)
11	82802-81A50-Z2J	HANDLE,SIDE DR OUT,L
11	82802-81A51-Z2J	HANDLE,SIDE DR OUT,L
11	82802-81A52-Z2J	HANDLE,SIDE DR OUT,L
11	82802-81A01-Z2S	Handle, door out lh (silver)
11	82802-81A51-Z2S	HANDLE,SIDE DR OUT,L
11	82802-81A52-Z2S	HANDLE,SIDE DR OUT,L
11	82802-81A53-Z2S	Handle Assy,fr Dr Out,l
11	82802-81A01-Z9T	ハンドルアッシ,ドアアウト,レフト(レッド)
11	82802-81A50-Z9T	HANDLE,SIDE DR OUT,L
11	82802-81A52-Z9T	HANDLE,SIDE DR OUT,L
11	82802-81A01-26U	Handle, door out lh (white)
11	82802-81A51-26U	HANDLE,SIDE DR OUT,L
11	82802-81A52-26U	HANDLE,SIDE DR OUT,L
11	82802-81A53-26U	Handle Assy,fr Dr Out,l
12	08316-10063-000	Nut
12	08316-1006B-000	NUT
13	83103-75G00-P4Z	HANDLE,RR DR INSIDE,R(GRAY)
13	83103-75G01-P4Z	HANDLE,RR DR INSIDE,R
14	83104-75G00-P4Z	HANDLE,RR DR INSIDE,L(GRAY)
14	83104-75G01-P4Z	HANDLE,RR DR INSIDE,L
15	03521-05163-000	Screw
15	03521-0516A-000	SCREW
16	09148-05031-000	NUT
17	83270-75G00-000	ROD,RR DOOR INSIDE LOCK,R
18	83280-75G00-000	ROD,RR DOOR INSIDE LOCK,L
19	83261-56B00-000	PIN,FR DOOR INSIDE LOCK ROD
20	83271-50E00-000	CLIP,DR HANDLE ROD
21	77591-75000-000	PAD
22	82991-76G00-P4Z	CAP,DR INSIDE LOCK KNOB
23	82982-65D00-P4Z	KNOB,DOOR INSIDE LOCK (GRAY)
24	83211-76G00-000	PAD SIDE DOOR INSIDE LOCK
25	86951-78004-000	CAUTION PLATE,CHILD PROOF

OEM	Part name	Category
02162-06123-000	Bolt (6x12)	Rear door lock (5DR)
02162-0612A-000	SCREW - Bolt, bracket	Rear door lock (5DR)
02162-0612B-000	SCREW - Bolt	Rear door lock (5DR)
03521-05163-000	Screw	Rear door lock (5DR)
03521-0516A-000	SCREW	Rear door lock (5DR)
08316-10063-000	Nut	Rear door lock (5DR)
08316-1006B-000	NUT	Rear door lock (5DR)
09137-06028-000	SCREW(6X18)	Rear door lock (5DR)
09137-08004-000	SCREW(8X18)	Rear door lock (5DR)
09137-08006-000	Screw - Screw (8x18)	Rear door lock (5DR)
09137-08011-000	SCREW(8X18)	Rear door lock (5DR)
09148-05031-000	NUT	Rear door lock (5DR)
77591-75000-000	PAD	Rear door lock (5DR)
78199-78000-000	SPACER,DOOR LOCK STRIKER	Rear door lock (5DR)
82301-75G20-000	Latch assy,rear door,r	Rear door lock (5DR)
82301-83G00-000	ラッチアッシ,リヤドア,ライト	Rear door lock (5DR)
82301-83G01-000	LATCH ASSY,RR DR,R	Rear door lock (5DR)
82302-75G20-000	LATCH ASSY,RR DR,L	Rear door lock (5DR)
82302-83G00-000	ラッチアッシ,リヤドア,レフト	Rear door lock (5DR)
82302-83G01-000	LATCH ASSY,RR DR,L	Rear door lock (5DR)
82610-75F00-000	STRIKER,DOOR LATCH	Rear door lock (5DR)
82801-81A01-26U	Handle, door out rh (white)	Rear door lock (5DR)
82801-81A01-5PK	HANDLE,SIDE DOOR OUT,R	Rear door lock (5DR)
82801-81A01-Z2J	ハンドルアッシ,ドアアウト,ライト(ブルー)	Rear door lock (5DR)
82801-81A01-Z2S	Handle, door out rh (silver)	Rear door lock (5DR)
82801-81A01-Z9T	ハンドルアッシ,ドアアウト,ライト(レッド)	Rear door lock (5DR)
82801-81A01-ZJ3	ハンドルアッシ,ドアアウト,ライト(ブラック)	Rear door lock (5DR)
82801-81A01-ZY2	Handle assy, dr out rh - Yellow	Rear door lock (5DR)
82801-81A02-5PK	HANDLE ASSY,FR DR OUT,R(BLACK)	Rear door lock (5DR)
82801-81A03-5PK	HANDLE ASSY,FR DR OUT,R	Rear door lock (5DR)
82801-81A04-5PK	Handle Assy,fr Dr Out,r(Black)	Rear door lock (5DR)
82801-81A50-Z2J	HANDLE,SIDE DR OUT,R	Rear door lock (5DR)
82801-81A50-ZY2	HANDLE,SIDE DR OUT,R	Rear door lock (5DR)
82801-81A51-26U	HANDLE,SIDE DR OUT,R	Rear door lock (5DR)
82801-81A51-Z2J	HANDLE,SIDE DR OUT,R	Rear door lock (5DR)
82801-81A51-Z2S	HANDLE,SIDE DR OUT,R	Rear door lock (5DR)
82801-81A51-Z9T	HANDLE,SIDE DR OUT,R	Rear door lock (5DR)
82801-81A51-ZJ3	HANDLE,SIDE DR OUT,R	Rear door lock (5DR)
82801-81A51-ZY2	HANDLE,SIDE DR OUT,R	Rear door lock (5DR)
82801-81A52-26U	HANDLE,SIDE DR OUT,R	Rear door lock (5DR)
82801-81A52-Z2J	HANDLE,SIDE DR OUT,R	Rear door lock (5DR)
82801-81A52-Z2S	HANDLE,SIDE DR OUT,R	Rear door lock (5DR)
82801-81A52-Z9T	HANDLE,SIDE DR OUT,R	Rear door lock (5DR)
82801-81A52-ZJ3	HANDLE,SIDE DR OUT,R	Rear door lock (5DR)
82801-81A53-26U	Handle Assy,fr Dr Out,r	Rear door lock (5DR)
82801-81A53-Z2J	Handle Assy,fr Dr Out,r	Rear door lock (5DR)
82801-81A53-Z2S	Handle Assy,fr Dr Out,r	Rear door lock (5DR)
82801-81A53-Z9T	Handle Assy,fr Dr Out,r	Rear door lock (5DR)
82801-81A53-ZJ3	Handle Assy,fr Dr Out,r	Rear door lock (5DR)
82802-81A01-26U	Handle, door out lh (white)	Rear door lock (5DR)
82802-81A01-5PK	HANDLE,SIDE DOOR OUT,L	Rear door lock (5DR)
82802-81A01-Z2J	ハンドルアッシ,ドアアウト,レフト(ブルー)	Rear door lock (5DR)
82802-81A01-Z2S	Handle, door out lh (silver)	Rear door lock (5DR)
82802-81A01-Z9T	ハンドルアッシ,ドアアウト,レフト(レッド)	Rear door lock (5DR)
82802-81A01-ZJ3	ハンドルアッシ,ドアアウト,レフト(ブラック)	Rear door lock (5DR)
82802-81A01-ZY2	Handle assy, dr out lh - Yellow	Rear door lock (5DR)
82802-81A02-5PK	HANDLE ASSY,FR DR OUT,L(BLACK)	Rear door lock (5DR)
82802-81A03-5PK	HANDLE ASSY,FR DR OUT,L	Rear door lock (5DR)
82802-81A04-5PK	Handle Assy,fr Dr Out,l(Black)	Rear door lock (5DR)
82802-81A50-Z2J	HANDLE,SIDE DR OUT,L	Rear door lock (5DR)
82802-81A50-Z9T	HANDLE,SIDE DR OUT,L	Rear door lock (5DR)
82802-81A50-ZY2	HANDLE,SIDE DR OUT,L	Rear door lock (5DR)
82802-81A51-26U	HANDLE,SIDE DR OUT,L	Rear door lock (5DR)
82802-81A51-Z2J	HANDLE,SIDE DR OUT,L	Rear door lock (5DR)
82802-81A51-Z2S	HANDLE,SIDE DR OUT,L	Rear door lock (5DR)
82802-81A51-ZJ3	HANDLE,SIDE DR OUT,L	Rear door lock (5DR)
82802-81A52-26U	HANDLE,SIDE DR OUT,L	Rear door lock (5DR)
82802-81A52-Z2J	HANDLE,SIDE DR OUT,L	Rear door lock (5DR)
82802-81A52-Z2S	HANDLE,SIDE DR OUT,L	Rear door lock (5DR)
82802-81A52-Z9T	HANDLE,SIDE DR OUT,L	Rear door lock (5DR)
82802-81A52-ZJ3	HANDLE,SIDE DR OUT,L	Rear door lock (5DR)
82802-81A53-26U	Handle Assy,fr Dr Out,l	Rear door lock (5DR)
82802-81A53-Z2S	Handle Assy,fr Dr Out,l	Rear door lock (5DR)
82802-81A53-ZJ3	Handle Assy,fr Dr Out,l	Rear door lock (5DR)
82982-65D00-P4Z	KNOB,DOOR INSIDE LOCK (GRAY)	Rear door lock (5DR)
82991-76G00-P4Z	CAP,DR INSIDE LOCK KNOB	Rear door lock (5DR)
83103-75G00-P4Z	HANDLE,RR DR INSIDE,R(GRAY)	Rear door lock (5DR)
83103-75G01-P4Z	HANDLE,RR DR INSIDE,R	Rear door lock (5DR)
83104-75G00-P4Z	HANDLE,RR DR INSIDE,L(GRAY)	Rear door lock (5DR)
83104-75G01-P4Z	HANDLE,RR DR INSIDE,L	Rear door lock (5DR)
83211-76G00-000	PAD SIDE DOOR INSIDE LOCK	Rear door lock (5DR)
83261-56B00-000	PIN,FR DOOR INSIDE LOCK ROD	Rear door lock (5DR)
83270-75G00-000	ROD,RR DOOR INSIDE LOCK,R	Rear door lock (5DR)
83271-50E00-000	CLIP,DR HANDLE ROD	Rear door lock (5DR)
83280-75G00-000	ROD,RR DOOR INSIDE LOCK,L	Rear door lock (5DR)
86951-78004-000	CAUTION PLATE,CHILD PROOF	Rear door lock (5DR)
