Search › Model › RG413
RG413

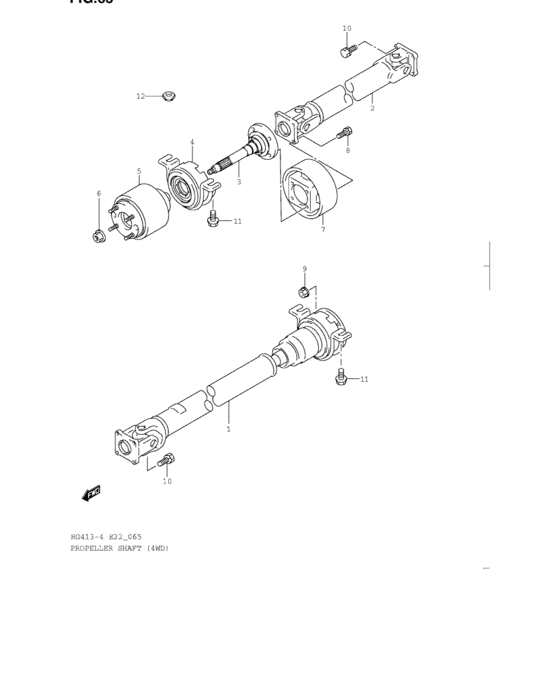

Propeller shaft (4WD) 17
| # | OEM | Part name |
|---|---|---|
| 1 | 27101-70H40-000 | SHAFT ASSY,PROPELLER FRONT |
| 2 | 27102-70H80-000 | SHAFT ASSY,PROPELLER REAR |
| 3 | 27112-76G40-000 | シャフト,カップリング |
| 3 | 27112-76G41-000 | SHAFT,COUPLING |
| 3 | 08331-31179-000 | CIRCLIP |
| 3 | 08331-3117A-000 | Circlip, kick idle gr |
| 4 | 27170-76G00-000 | SUPPORT,CENTER BEARING |
| 5 | 27610-86G00-000 | COUPLING,VISCOUS |
| 6 | 09159-12001-000 | NUT |
| 7 | 27175-70H00-000 | ダンパ,プロペラシャフト |
| 7 | 27175-70H20-000 | DAMPER,PROPELLER SHAFT |
| 8 | 09117-08079-000 | BOLT(8X20) |
| 9 | 09159-08075-000 | NUT |
| 10 | 09117-08095-000 | Bolt (8x20) |
| 10 | 09117-08103-000 | BOLT(8X18) |
| 11 | 09118-10052-000 | BOLT(10X30) |
| 12 | 09250-16008-000 | PLUG(OD:24) |
| OEM | Part name | Category |
|---|---|---|
| 08331-31179-000 | CIRCLIP | Propeller shaft (4WD) |
| 08331-3117A-000 | Circlip, kick idle gr | Propeller shaft (4WD) |
| 09117-08079-000 | BOLT(8X20) | Propeller shaft (4WD) |
| 09117-08095-000 | Bolt (8x20) | Propeller shaft (4WD) |
| 09117-08103-000 | BOLT(8X18) | Propeller shaft (4WD) |
| 09118-10052-000 | BOLT(10X30) | Propeller shaft (4WD) |
| 09159-08075-000 | NUT | Propeller shaft (4WD) |
| 09159-12001-000 | NUT | Propeller shaft (4WD) |
| 09250-16008-000 | PLUG(OD:24) | Propeller shaft (4WD) |
| 27101-70H40-000 | SHAFT ASSY,PROPELLER FRONT | Propeller shaft (4WD) |
| 27102-70H80-000 | SHAFT ASSY,PROPELLER REAR | Propeller shaft (4WD) |
| 27112-76G40-000 | シャフト,カップリング | Propeller shaft (4WD) |
| 27112-76G41-000 | SHAFT,COUPLING | Propeller shaft (4WD) |
| 27170-76G00-000 | SUPPORT,CENTER BEARING | Propeller shaft (4WD) |
| 27175-70H00-000 | ダンパ,プロペラシャフト | Propeller shaft (4WD) |
| 27175-70H20-000 | DAMPER,PROPELLER SHAFT | Propeller shaft (4WD) |
| 27610-86G00-000 | COUPLING,VISCOUS | Propeller shaft (4WD) |
