Search › Model › RG413
RG413

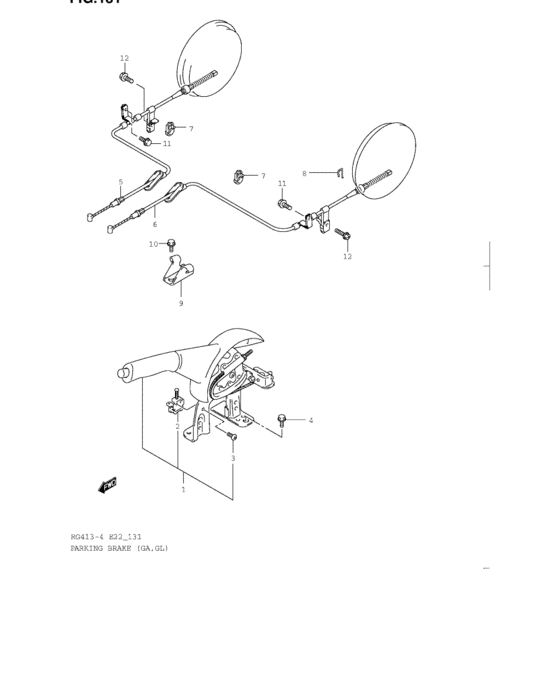

Parking brake (GA,GL) 17
| # | OEM | Part name |
|---|---|---|
| 1 | 54100-76F10-000 | LEVER ASSYPARKING BRAKE |
| 1 | 54100-76F11-5PK | LEVER ASSY,PARK BK(BLACK) |
| 2 | 37940-76G00-000 | SWITCH ASSY,PARKING BRAKE |
| 3 | 54115-76G00-000 | SCREW |
| 4 | 01551-08163-000 | Bolt |
| 4 | 01551-0816C-000 | Bolt |
| 4 | 01551-0816A-000 | ボルト |
| 5 | 54401-78F01-000 | CABLE PARKING BRAKE RH |
| 5 | 54401-78F03-000 | CABLE,PARKING BRAKE,R |
| 5 | 54415-72J00-000 | CLAMP,PARKING CABLE |
| 6 | 54402-78F10-000 | CABLE PARKING BRAKE LH |
| 6 | 54402-78F12-000 | CABLE,PARKING BRAKE,L |
| 7 | 54415-77A00-000 | CLAMP,PARKING CABLE |
| 8 | 53771-70G00-000 | CLIP,PARKING CABLE |
| 9 | 54495-76F00-000 | BRACKET,PARKING CABLE |
| 12 | 02162-06253-000 | Bolt |
| 12 | 02162-0625A-000 | SCREW |
| OEM | Part name | Category |
|---|---|---|
| 01551-08163-000 | Bolt | Parking brake (GA,GL) |
| 01551-0816A-000 | ボルト | Parking brake (GA,GL) |
| 01551-0816C-000 | Bolt | Parking brake (GA,GL) |
| 02162-06253-000 | Bolt | Parking brake (GA,GL) |
| 02162-0625A-000 | SCREW | Parking brake (GA,GL) |
| 37940-76G00-000 | SWITCH ASSY,PARKING BRAKE | Parking brake (GA,GL) |
| 53771-70G00-000 | CLIP,PARKING CABLE | Parking brake (GA,GL) |
| 54100-76F10-000 | LEVER ASSYPARKING BRAKE | Parking brake (GA,GL) |
| 54100-76F11-5PK | LEVER ASSY,PARK BK(BLACK) | Parking brake (GA,GL) |
| 54115-76G00-000 | SCREW | Parking brake (GA,GL) |
| 54401-78F01-000 | CABLE PARKING BRAKE RH | Parking brake (GA,GL) |
| 54401-78F03-000 | CABLE,PARKING BRAKE,R | Parking brake (GA,GL) |
| 54402-78F10-000 | CABLE PARKING BRAKE LH | Parking brake (GA,GL) |
| 54402-78F12-000 | CABLE,PARKING BRAKE,L | Parking brake (GA,GL) |
| 54415-72J00-000 | CLAMP,PARKING CABLE | Parking brake (GA,GL) |
| 54415-77A00-000 | CLAMP,PARKING CABLE | Parking brake (GA,GL) |
| 54495-76F00-000 | BRACKET,PARKING CABLE | Parking brake (GA,GL) |
