RG413

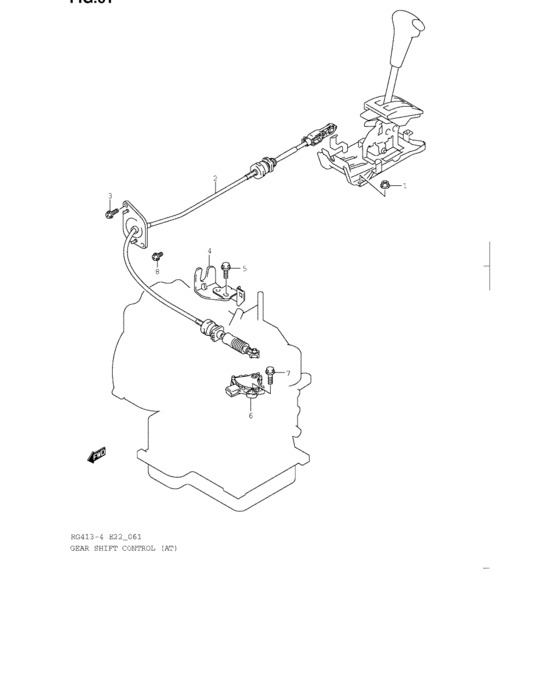

Gear shift control (AT) 15
| # | OEM | Part name |
|---|---|---|
| 1 | 08316-10083-000 | Nut |
| 1 | 08316-1008B-000 | NUT |
| 2 | 28210-80G10-000 | CABLE ASSY,SELECT |
| 3 | 02162-06163-000 | Screw - Bolt |
| 3 | 02162-0616B-000 | SCREW - Bolt, adjust |
| 4 | 28220-83E10-000 | Bracket comp,select cable |
| 5 | 01550-08203-000 | Bolt |
| 5 | 01550-0820B-000 | Bolt |
| 5 | 01550-0820A-000 | Bolt - Bolt, funnel bracket |
| 6 | 37720-75F01-000 | SWITCH ASSY,SHIFT |
| 7 | 01580-08253-000 | Bolt - Bolt, adjuster |
| 7 | 01580-0825A-000 | Bolt |
| 8 | 02162-06123-000 | Bolt (6x12) |
| 8 | 02162-0612B-000 | SCREW - Bolt |
| 8 | 02162-0612A-000 | SCREW - Bolt, bracket |
| OEM | Part name | Category |
|---|---|---|
| 01550-08203-000 | Bolt | Gear shift control (AT) |
| 01550-0820A-000 | Bolt - Bolt, funnel bracket | Gear shift control (AT) |
| 01550-0820B-000 | Bolt | Gear shift control (AT) |
| 01580-08253-000 | Bolt - Bolt, adjuster | Gear shift control (AT) |
| 01580-0825A-000 | Bolt | Gear shift control (AT) |
| 02162-06123-000 | Bolt (6x12) | Gear shift control (AT) |
| 02162-0612A-000 | SCREW - Bolt, bracket | Gear shift control (AT) |
| 02162-0612B-000 | SCREW - Bolt | Gear shift control (AT) |
| 02162-06163-000 | Screw - Bolt | Gear shift control (AT) |
| 02162-0616B-000 | SCREW - Bolt, adjust | Gear shift control (AT) |
| 08316-10083-000 | Nut | Gear shift control (AT) |
| 08316-1008B-000 | NUT | Gear shift control (AT) |
| 28210-80G10-000 | CABLE ASSY,SELECT | Gear shift control (AT) |
| 28220-83E10-000 | Bracket comp,select cable | Gear shift control (AT) |
| 37720-75F01-000 | SWITCH ASSY,SHIFT | Gear shift control (AT) |
