Search › Model › RG413

RG413

Suzuki IGNIS · 3,600 parts · 180 categories

3,600 items

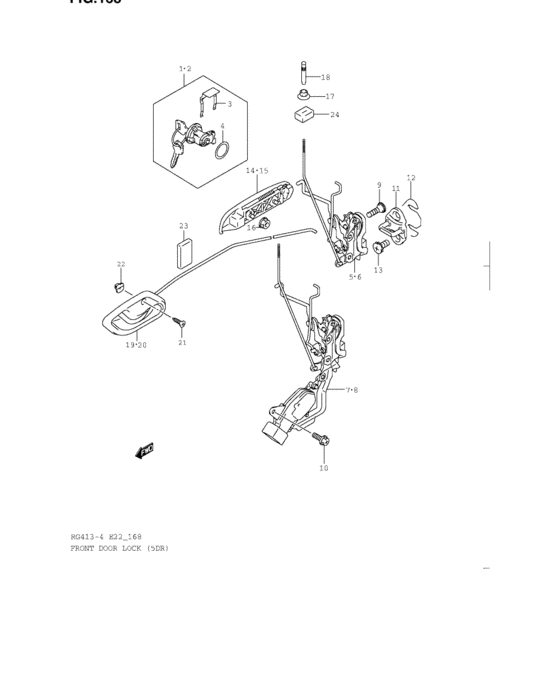

Front door lock (5DR) 89

#	OEM	Part name
1	82270-76850-000	CYLINDER,FR DR LATCH,R
2	82280-76850-000	CYLINDER,FR DR LATCH,L
3	82291-81A00-000	RETAINER,FR DR CYLINDER
4	82292-81A00-000	SHEET,DOOR LATCH CYLINDER
5	82201-75G20-000	LATCH ASSY,FR DR,R
6	82202-75G20-000	LATCH ASSY,FR DR,L
7	82201-81G20-000	Latch assy, front door rh
7	82201-81G21-000	LATCH ASSY,FR DR,R
7	82201-83G00-000	ラッチアッシ,フロントドア,ライト
7	82201-83G01-000	LATCH ASSY,FR DR,R
8	82202-81G20-000	Latch assy, front door lh
8	82202-81G21-000	LATCH ASSY,FR DR,L
8	82202-83G00-000	ラッチアッシ,フロントドア,レフト
8	82202-83G01-000	LATCH ASSY,FR DR,L
9	09137-06028-000	SCREW(6X18)
10	02162-06123-000	Bolt (6x12)
10	02162-0612B-000	SCREW - Bolt
10	02162-0612A-000	SCREW - Bolt, bracket
11	82610-75F00-000	STRIKER,DOOR LATCH
12	78199-78000-000	SPACER,DOOR LOCK STRIKER
13	09137-08006-000	Screw - Screw (8x18)
13	09137-08011-000	SCREW(8X18)
13	09137-08004-000	SCREW(8X18)
14	82801-81A01-5PK	HANDLE,SIDE DOOR OUT,R
14	82801-81A02-5PK	HANDLE ASSY,FR DR OUT,R(BLACK)
14	82801-81A03-5PK	HANDLE ASSY,FR DR OUT,R
14	82801-81A04-5PK	Handle Assy,fr Dr Out,r(Black)
14	82801-81A01-ZJ3	ハンドルアッシ,ドアアウト,ライト(ブラック)
14	82801-81A51-ZJ3	HANDLE,SIDE DR OUT,R
14	82801-81A52-ZJ3	HANDLE,SIDE DR OUT,R
14	82801-81A53-ZJ3	Handle Assy,fr Dr Out,r
14	82801-81A01-ZY2	Handle assy, dr out rh - Yellow
14	82801-81A50-ZY2	HANDLE,SIDE DR OUT,R
14	82801-81A51-ZY2	HANDLE,SIDE DR OUT,R
14	82801-81A01-Z2J	ハンドルアッシ,ドアアウト,ライト(ブルー)
14	82801-81A50-Z2J	HANDLE,SIDE DR OUT,R
14	82801-81A51-Z2J	HANDLE,SIDE DR OUT,R
14	82801-81A52-Z2J	HANDLE,SIDE DR OUT,R
14	82801-81A53-Z2J	Handle Assy,fr Dr Out,r
14	82801-81A01-Z2S	Handle, door out rh (silver)
14	82801-81A51-Z2S	HANDLE,SIDE DR OUT,R
14	82801-81A52-Z2S	HANDLE,SIDE DR OUT,R
14	82801-81A53-Z2S	Handle Assy,fr Dr Out,r
14	82801-81A01-Z9T	ハンドルアッシ,ドアアウト,ライト(レッド)
14	82801-81A51-Z9T	HANDLE,SIDE DR OUT,R
14	82801-81A52-Z9T	HANDLE,SIDE DR OUT,R
14	82801-81A53-Z9T	Handle Assy,fr Dr Out,r
14	82801-81A01-26U	Handle, door out rh (white)
14	82801-81A51-26U	HANDLE,SIDE DR OUT,R
14	82801-81A52-26U	HANDLE,SIDE DR OUT,R
14	82801-81A53-26U	Handle Assy,fr Dr Out,r
15	82802-81A01-5PK	HANDLE,SIDE DOOR OUT,L
15	82802-81A02-5PK	HANDLE ASSY,FR DR OUT,L(BLACK)
15	82802-81A03-5PK	HANDLE ASSY,FR DR OUT,L
15	82802-81A04-5PK	Handle Assy,fr Dr Out,l(Black)
15	82802-81A01-ZJ3	ハンドルアッシ,ドアアウト,レフト(ブラック)
15	82802-81A51-ZJ3	HANDLE,SIDE DR OUT,L
15	82802-81A52-ZJ3	HANDLE,SIDE DR OUT,L
15	82802-81A53-ZJ3	Handle Assy,fr Dr Out,l
15	82802-81A01-ZY2	Handle assy, dr out lh - Yellow
15	82802-81A50-ZY2	HANDLE,SIDE DR OUT,L
15	82802-81A01-Z2J	ハンドルアッシ,ドアアウト,レフト(ブルー)
15	82802-81A50-Z2J	HANDLE,SIDE DR OUT,L
15	82802-81A51-Z2J	HANDLE,SIDE DR OUT,L
15	82802-81A52-Z2J	HANDLE,SIDE DR OUT,L
15	82802-81A01-Z2S	Handle, door out lh (silver)
15	82802-81A51-Z2S	HANDLE,SIDE DR OUT,L
15	82802-81A52-Z2S	HANDLE,SIDE DR OUT,L
15	82802-81A53-Z2S	Handle Assy,fr Dr Out,l
15	82802-81A01-Z9T	ハンドルアッシ,ドアアウト,レフト(レッド)
15	82802-81A50-Z9T	HANDLE,SIDE DR OUT,L
15	82802-81A52-Z9T	HANDLE,SIDE DR OUT,L
15	82802-81A01-26U	Handle, door out lh (white)
15	82802-81A51-26U	HANDLE,SIDE DR OUT,L
15	82802-81A52-26U	HANDLE,SIDE DR OUT,L
15	82802-81A53-26U	Handle Assy,fr Dr Out,l
16	08316-10063-000	Nut
16	08316-1006B-000	NUT
17	82991-76G00-P4Z	CAP,DR INSIDE LOCK KNOB
18	82982-65D00-P4Z	KNOB,DOOR INSIDE LOCK (GRAY)
19	83101-75G00-P4Z	HANDLE,FR DR INSIDE,R(GRAY)
19	83101-75G01-P4Z	HANDLE,FR DR INSIDE,R
20	83102-75G00-P4Z	HANDLE,FR DR INSIDE,L(GRAY)
20	83102-75G01-P4Z	HANDLE,FR DR INSIDE,L
21	03521-05163-000	Screw
21	03521-0516A-000	SCREW
22	09148-05031-000	NUT
23	77591-75000-000	PAD
24	83211-76G00-000	PAD SIDE DOOR INSIDE LOCK

OEM	Part name	Category
02162-06123-000	Bolt (6x12)	Front door lock (5DR)
02162-0612A-000	SCREW - Bolt, bracket	Front door lock (5DR)
02162-0612B-000	SCREW - Bolt	Front door lock (5DR)
03521-05163-000	Screw	Front door lock (5DR)
03521-0516A-000	SCREW	Front door lock (5DR)
08316-10063-000	Nut	Front door lock (5DR)
08316-1006B-000	NUT	Front door lock (5DR)
09137-06028-000	SCREW(6X18)	Front door lock (5DR)
09137-08004-000	SCREW(8X18)	Front door lock (5DR)
09137-08006-000	Screw - Screw (8x18)	Front door lock (5DR)
09137-08011-000	SCREW(8X18)	Front door lock (5DR)
09148-05031-000	NUT	Front door lock (5DR)
77591-75000-000	PAD	Front door lock (5DR)
78199-78000-000	SPACER,DOOR LOCK STRIKER	Front door lock (5DR)
82201-75G20-000	LATCH ASSY,FR DR,R	Front door lock (5DR)
82201-81G20-000	Latch assy, front door rh	Front door lock (5DR)
82201-81G21-000	LATCH ASSY,FR DR,R	Front door lock (5DR)
82201-83G00-000	ラッチアッシ,フロントドア,ライト	Front door lock (5DR)
82201-83G01-000	LATCH ASSY,FR DR,R	Front door lock (5DR)
82202-75G20-000	LATCH ASSY,FR DR,L	Front door lock (5DR)
82202-81G20-000	Latch assy, front door lh	Front door lock (5DR)
82202-81G21-000	LATCH ASSY,FR DR,L	Front door lock (5DR)
82202-83G00-000	ラッチアッシ,フロントドア,レフト	Front door lock (5DR)
82202-83G01-000	LATCH ASSY,FR DR,L	Front door lock (5DR)
82270-76850-000	CYLINDER,FR DR LATCH,R	Front door lock (5DR)
82280-76850-000	CYLINDER,FR DR LATCH,L	Front door lock (5DR)
82291-81A00-000	RETAINER,FR DR CYLINDER	Front door lock (5DR)
82292-81A00-000	SHEET,DOOR LATCH CYLINDER	Front door lock (5DR)
82610-75F00-000	STRIKER,DOOR LATCH	Front door lock (5DR)
82801-81A01-26U	Handle, door out rh (white)	Front door lock (5DR)
82801-81A01-5PK	HANDLE,SIDE DOOR OUT,R	Front door lock (5DR)
82801-81A01-Z2J	ハンドルアッシ,ドアアウト,ライト(ブルー)	Front door lock (5DR)
82801-81A01-Z2S	Handle, door out rh (silver)	Front door lock (5DR)
82801-81A01-Z9T	ハンドルアッシ,ドアアウト,ライト(レッド)	Front door lock (5DR)
82801-81A01-ZJ3	ハンドルアッシ,ドアアウト,ライト(ブラック)	Front door lock (5DR)
82801-81A01-ZY2	Handle assy, dr out rh - Yellow	Front door lock (5DR)
82801-81A02-5PK	HANDLE ASSY,FR DR OUT,R(BLACK)	Front door lock (5DR)
82801-81A03-5PK	HANDLE ASSY,FR DR OUT,R	Front door lock (5DR)
82801-81A04-5PK	Handle Assy,fr Dr Out,r(Black)	Front door lock (5DR)
82801-81A50-Z2J	HANDLE,SIDE DR OUT,R	Front door lock (5DR)
82801-81A50-ZY2	HANDLE,SIDE DR OUT,R	Front door lock (5DR)
82801-81A51-26U	HANDLE,SIDE DR OUT,R	Front door lock (5DR)
82801-81A51-Z2J	HANDLE,SIDE DR OUT,R	Front door lock (5DR)
82801-81A51-Z2S	HANDLE,SIDE DR OUT,R	Front door lock (5DR)
82801-81A51-Z9T	HANDLE,SIDE DR OUT,R	Front door lock (5DR)
82801-81A51-ZJ3	HANDLE,SIDE DR OUT,R	Front door lock (5DR)
82801-81A51-ZY2	HANDLE,SIDE DR OUT,R	Front door lock (5DR)
82801-81A52-26U	HANDLE,SIDE DR OUT,R	Front door lock (5DR)
82801-81A52-Z2J	HANDLE,SIDE DR OUT,R	Front door lock (5DR)
82801-81A52-Z2S	HANDLE,SIDE DR OUT,R	Front door lock (5DR)
82801-81A52-Z9T	HANDLE,SIDE DR OUT,R	Front door lock (5DR)
82801-81A52-ZJ3	HANDLE,SIDE DR OUT,R	Front door lock (5DR)
82801-81A53-26U	Handle Assy,fr Dr Out,r	Front door lock (5DR)
82801-81A53-Z2J	Handle Assy,fr Dr Out,r	Front door lock (5DR)
82801-81A53-Z2S	Handle Assy,fr Dr Out,r	Front door lock (5DR)
82801-81A53-Z9T	Handle Assy,fr Dr Out,r	Front door lock (5DR)
82801-81A53-ZJ3	Handle Assy,fr Dr Out,r	Front door lock (5DR)
82802-81A01-26U	Handle, door out lh (white)	Front door lock (5DR)
82802-81A01-5PK	HANDLE,SIDE DOOR OUT,L	Front door lock (5DR)
82802-81A01-Z2J	ハンドルアッシ,ドアアウト,レフト(ブルー)	Front door lock (5DR)
82802-81A01-Z2S	Handle, door out lh (silver)	Front door lock (5DR)
82802-81A01-Z9T	ハンドルアッシ,ドアアウト,レフト(レッド)	Front door lock (5DR)
82802-81A01-ZJ3	ハンドルアッシ,ドアアウト,レフト(ブラック)	Front door lock (5DR)
82802-81A01-ZY2	Handle assy, dr out lh - Yellow	Front door lock (5DR)
82802-81A02-5PK	HANDLE ASSY,FR DR OUT,L(BLACK)	Front door lock (5DR)
82802-81A03-5PK	HANDLE ASSY,FR DR OUT,L	Front door lock (5DR)
82802-81A04-5PK	Handle Assy,fr Dr Out,l(Black)	Front door lock (5DR)
82802-81A50-Z2J	HANDLE,SIDE DR OUT,L	Front door lock (5DR)
82802-81A50-Z9T	HANDLE,SIDE DR OUT,L	Front door lock (5DR)
82802-81A50-ZY2	HANDLE,SIDE DR OUT,L	Front door lock (5DR)
82802-81A51-26U	HANDLE,SIDE DR OUT,L	Front door lock (5DR)
82802-81A51-Z2J	HANDLE,SIDE DR OUT,L	Front door lock (5DR)
82802-81A51-Z2S	HANDLE,SIDE DR OUT,L	Front door lock (5DR)
82802-81A51-ZJ3	HANDLE,SIDE DR OUT,L	Front door lock (5DR)
82802-81A52-26U	HANDLE,SIDE DR OUT,L	Front door lock (5DR)
82802-81A52-Z2J	HANDLE,SIDE DR OUT,L	Front door lock (5DR)
82802-81A52-Z2S	HANDLE,SIDE DR OUT,L	Front door lock (5DR)
82802-81A52-Z9T	HANDLE,SIDE DR OUT,L	Front door lock (5DR)
82802-81A52-ZJ3	HANDLE,SIDE DR OUT,L	Front door lock (5DR)
82802-81A53-26U	Handle Assy,fr Dr Out,l	Front door lock (5DR)
82802-81A53-Z2S	Handle Assy,fr Dr Out,l	Front door lock (5DR)
82802-81A53-ZJ3	Handle Assy,fr Dr Out,l	Front door lock (5DR)
82982-65D00-P4Z	KNOB,DOOR INSIDE LOCK (GRAY)	Front door lock (5DR)
82991-76G00-P4Z	CAP,DR INSIDE LOCK KNOB	Front door lock (5DR)
83101-75G00-P4Z	HANDLE,FR DR INSIDE,R(GRAY)	Front door lock (5DR)
83101-75G01-P4Z	HANDLE,FR DR INSIDE,R	Front door lock (5DR)
83102-75G00-P4Z	HANDLE,FR DR INSIDE,L(GRAY)	Front door lock (5DR)
83102-75G01-P4Z	HANDLE,FR DR INSIDE,L	Front door lock (5DR)
83211-76G00-000	PAD SIDE DOOR INSIDE LOCK	Front door lock (5DR)
