Search › Model › RG413
RG413

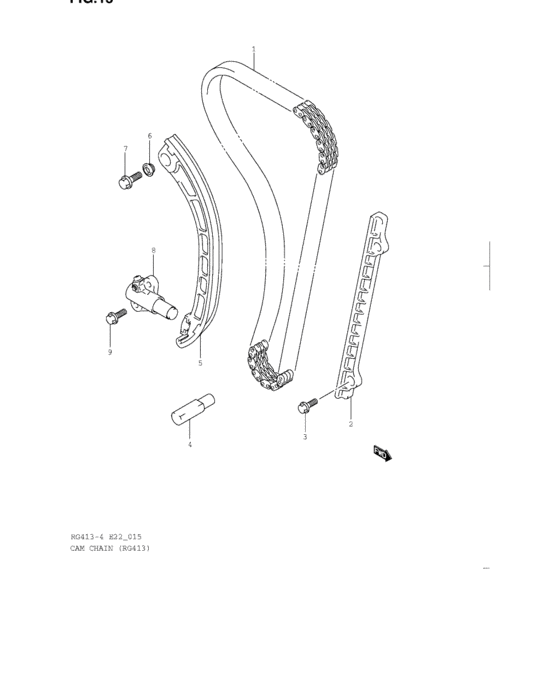

Cam chain (RG413) 15
| # | OEM | Part name |
|---|---|---|
| 1 | 12761-54G00-000 | CHAIN,TIMING |
| 2 | 12771-54G00-000 | GUIDE CHAIN |
| 2 | 12771-61M00-000 | GUIDE,TIMING CHAIN NO.1 |
| 3 | 12776-85FA0-000 | BOLT,TIMING CHAIN GUIDE - Bolt, timing chain guide |
| 4 | 12781-69G00-000 | JET,TIMING CHAIN |
| 5 | 12811-69G00-000 | TENSIONER |
| 5 | 12811-69G02-000 | Tensioner, Timing Chain |
| 6 | 12812-73G10-000 | SPACER,TIMING CHAIN TENSIONER - Spacer, timing chain tensioner |
| 7 | 01550-08303-000 | Bolt |
| 7 | 01550-0830B-000 | Bolt |
| 7 | 01550-0830A-000 | Bolt - Bolt, mount oil seal cover |
| 8 | 12831-69G00-000 | Adjuster assy,tensioner |
| 8 | 12831-69G10-000 | ADJUSTER ASSY,TENSIONER |
| 9 | 01550-06203-000 | Bolt |
| 9 | 01550-0620B-000 | Bolt - Bolt, inspection cap |
| OEM | Part name | Category |
|---|---|---|
| 01550-06203-000 | Bolt | Cam chain (RG413) |
| 01550-0620B-000 | Bolt - Bolt, inspection cap | Cam chain (RG413) |
| 01550-08303-000 | Bolt | Cam chain (RG413) |
| 01550-0830A-000 | Bolt - Bolt, mount oil seal cover | Cam chain (RG413) |
| 01550-0830B-000 | Bolt | Cam chain (RG413) |
| 12761-54G00-000 | CHAIN,TIMING | Cam chain (RG413) |
| 12771-54G00-000 | GUIDE CHAIN | Cam chain (RG413) |
| 12771-61M00-000 | GUIDE,TIMING CHAIN NO.1 | Cam chain (RG413) |
| 12776-85FA0-000 | BOLT,TIMING CHAIN GUIDE - Bolt, timing chain guide | Cam chain (RG413) |
| 12781-69G00-000 | JET,TIMING CHAIN | Cam chain (RG413) |
| 12811-69G00-000 | TENSIONER | Cam chain (RG413) |
| 12811-69G02-000 | Tensioner, Timing Chain | Cam chain (RG413) |
| 12812-73G10-000 | SPACER,TIMING CHAIN TENSIONER - Spacer, timing chain tensioner | Cam chain (RG413) |
| 12831-69G00-000 | Adjuster assy,tensioner | Cam chain (RG413) |
| 12831-69G10-000 | ADJUSTER ASSY,TENSIONER | Cam chain (RG413) |
