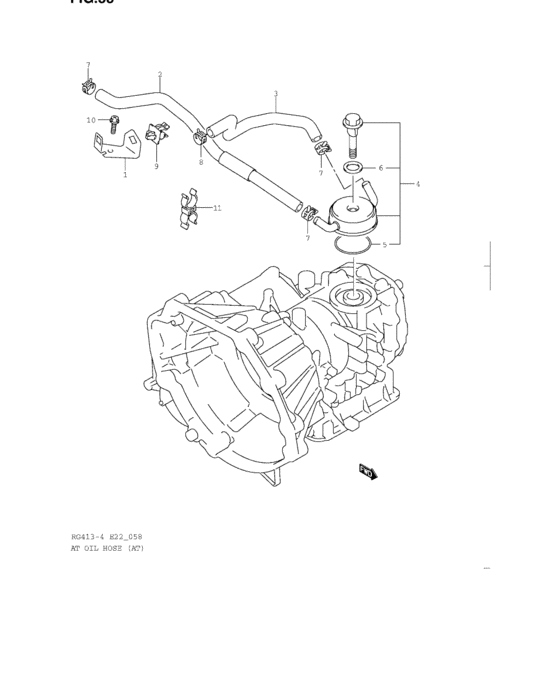

At oil hose (AT)
12
| # | OEM | Part name |
|---|
| 1 |
22935-80G10-000 |
Bracket,cooler hose |
| 2 |
24891-80G10-000 |
HOSE,OIL COOLER INLET |
| 3 |
24892-80G10-000 |
HOSE,OIL COOLER OUTLET |
| 4 |
24920-78F10-000 |
クーラアッシ,ATF |
| 4 |
24920-78F12-000 |
COOLER ASSY,AT |
| 5 |
24924-76G10-000 |
O-RING,OIL COOLER |
| 6 |
24925-76G10-000 |
WASHER,OIL COOLER |
| 7 |
09401-18403-000 |
CLIP - Clip, heater hose |
| 8 |
09401-20405-000 |
CLIP - Clip, tank |
| 9 |
09403-18305-000 |
CLAMP |
| 10 |
26599-85500-000 |
BOLT,SOLENOID |
| 11 |
09408-00166-000 |
CLAMP |
| OEM |
Part name |
Category |
| 09401-18403-000 |
CLIP - Clip, heater hose |
At oil hose (AT) |
| 09401-20405-000 |
CLIP - Clip, tank |
At oil hose (AT) |
| 09403-18305-000 |
CLAMP |
At oil hose (AT) |
| 09408-00166-000 |
CLAMP |
At oil hose (AT) |
| 22935-80G10-000 |
Bracket,cooler hose |
At oil hose (AT) |
| 24891-80G10-000 |
HOSE,OIL COOLER INLET |
At oil hose (AT) |
| 24892-80G10-000 |
HOSE,OIL COOLER OUTLET |
At oil hose (AT) |
| 24920-78F10-000 |
クーラアッシ,ATF |
At oil hose (AT) |
| 24920-78F12-000 |
COOLER ASSY,AT |
At oil hose (AT) |
| 24924-76G10-000 |
O-RING,OIL COOLER |
At oil hose (AT) |
| 24925-76G10-000 |
WASHER,OIL COOLER |
At oil hose (AT) |
| 26599-85500-000 |
BOLT,SOLENOID |
At oil hose (AT) |
