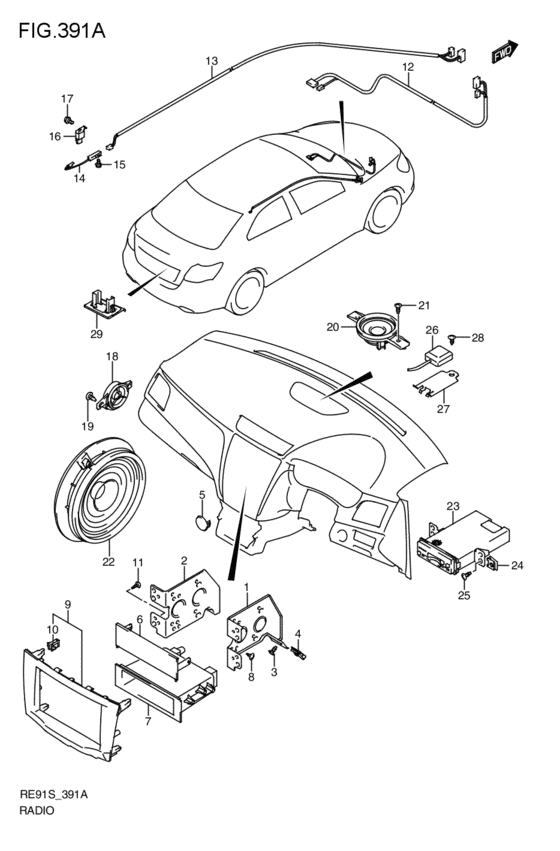

radio (2009-06-01~)
25
| # | OEM | Part name |
|---|
| 1 |
39321-57L00-000 |
BRACKET,TUNER,R |
| 2 |
39322-57L00-000 |
BRACKET,TUNER,L |
| 3 |
03541-0516A-000 |
SCREW |
| 4 |
09148-05045-000 |
NUT |
| 5 |
37275-65H00-000 |
CAP |
| 6 |
39161-80J00-000 |
COVER,RADIO HOLE |
| 7 |
39182-80J10-000 |
POCKET,TUNER |
| 8 |
03241-0512A-000 |
SCREW |
| 9 |
73330-57L00-ZNF |
GARNISH,I/P CTR |
| 10 |
09409-08342-000 |
CLIP |
| 12 |
39270-57L10-000 |
FEEDER,I/P |
| 13 |
39271-57L00-000 |
FEEDER,ROOF |
| 14 |
39291-57L10-000 |
アンプ,ラジオアンテナ |
| 15 |
09115-06005-000 |
BOLT(6X16) |
| 16 |
39295-57L00-000 |
FILTER ASSY,NOISE |
| 18 |
39102-65J20-000 |
SPEAKER ASSY,TWEETER |
| 19 |
03541-0410A-000 |
SCREW |
| 20 |
39102-68HA0-000 |
SPEAKER ASSY,CTR |
| 22 |
39102-63J50-000 |
SPEAKER ASSY |
| 23 |
39820-57L00-000 |
ETCユニット |
| 23 |
39820-57L01-000 |
New Genuine Part |
| 26 |
39822-57L00-000 |
アンテナ,ETC |
| 26 |
39821-57L00-000 |
New Genuine Part |
| 27 |
39952-57L00-000 |
ブラケット,アンテナ |
| 29 |
39977-57L00-000 |
CAP,BACK CAMERA |
| OEM |
Part name |
Category |
| 03241-0512A-000 |
SCREW |
radio (2009-06-01~) |
| 03541-0410A-000 |
SCREW |
radio (2009-06-01~) |
| 03541-0516A-000 |
SCREW |
radio (2009-06-01~) |
| 09115-06005-000 |
BOLT(6X16) |
radio (2009-06-01~) |
| 09148-05045-000 |
NUT |
radio (2009-06-01~) |
| 09409-08342-000 |
CLIP |
radio (2009-06-01~) |
| 37275-65H00-000 |
CAP |
radio (2009-06-01~) |
| 39102-63J50-000 |
SPEAKER ASSY |
radio (2009-06-01~) |
| 39102-65J20-000 |
SPEAKER ASSY,TWEETER |
radio (2009-06-01~) |
| 39102-68HA0-000 |
SPEAKER ASSY,CTR |
radio (2009-06-01~) |
| 39161-80J00-000 |
COVER,RADIO HOLE |
radio (2009-06-01~) |
| 39182-80J10-000 |
POCKET,TUNER |
radio (2009-06-01~) |
| 39270-57L10-000 |
FEEDER,I/P |
radio (2009-06-01~) |
| 39271-57L00-000 |
FEEDER,ROOF |
radio (2009-06-01~) |
| 39291-57L10-000 |
アンプ,ラジオアンテナ |
radio (2009-06-01~) |
| 39295-57L00-000 |
FILTER ASSY,NOISE |
radio (2009-06-01~) |
| 39321-57L00-000 |
BRACKET,TUNER,R |
radio (2009-06-01~) |
| 39322-57L00-000 |
BRACKET,TUNER,L |
radio (2009-06-01~) |
| 39820-57L00-000 |
ETCユニット |
radio (2009-06-01~) |
| 39820-57L01-000 |
New Genuine Part |
radio (2009-06-01~) |
| 39821-57L00-000 |
New Genuine Part |
radio (2009-06-01~) |
| 39822-57L00-000 |
アンテナ,ETC |
radio (2009-06-01~) |
| 39952-57L00-000 |
ブラケット,アンテナ |
radio (2009-06-01~) |
| 39977-57L00-000 |
CAP,BACK CAMERA |
radio (2009-06-01~) |
| 73330-57L00-ZNF |
GARNISH,I/P CTR |
radio (2009-06-01~) |
