Search › Model › RF91S
RF91S

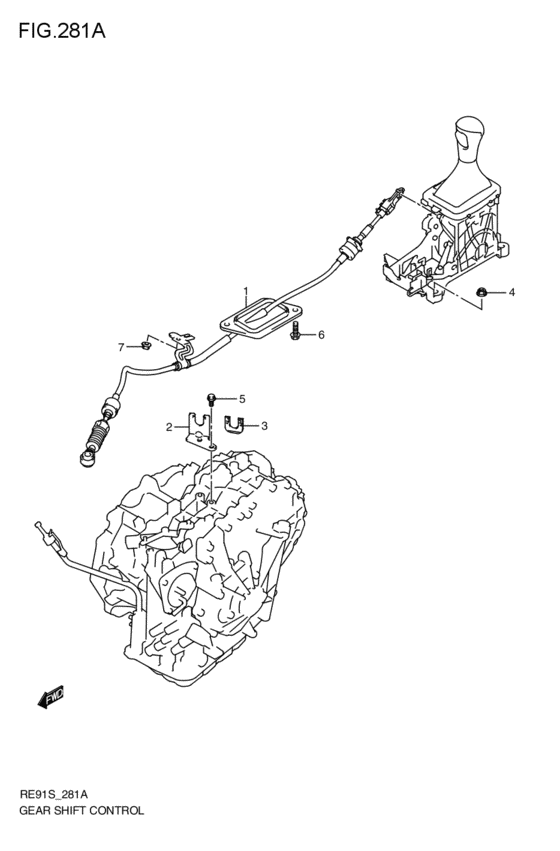

gearlever control (2009-06-01~) 7
| # | OEM | Part name |
|---|---|---|
| 1 | 28210-57LR0-000 | CABLE ASSY,SELECT |
| 2 | 28221-54LR0-000 | BRACKET,SELECT CABLE |
| 3 | 29365-79A40-000 | CLIP |
| 4 | 08316-1008A-000 | NUT - Nut, idle gear shaft |
| 5 | 01550-0816A-000 | Bolt - Bolt, rear |
| 6 | 02162-0620C-000 | SCREW |
| 7 | 08316-1006A-000 | NUT |
| OEM | Part name | Category |
|---|---|---|
| 01550-0816A-000 | Bolt - Bolt, rear | gearlever control (2009-06-01~) |
| 02162-0620C-000 | SCREW | gearlever control (2009-06-01~) |
| 08316-1006A-000 | NUT | gearlever control (2009-06-01~) |
| 08316-1008A-000 | NUT - Nut, idle gear shaft | gearlever control (2009-06-01~) |
| 28210-57LR0-000 | CABLE ASSY,SELECT | gearlever control (2009-06-01~) |
| 28221-54LR0-000 | BRACKET,SELECT CABLE | gearlever control (2009-06-01~) |
| 29365-79A40-000 | CLIP | gearlever control (2009-06-01~) |
