Search › Model › RF91S
RF91S

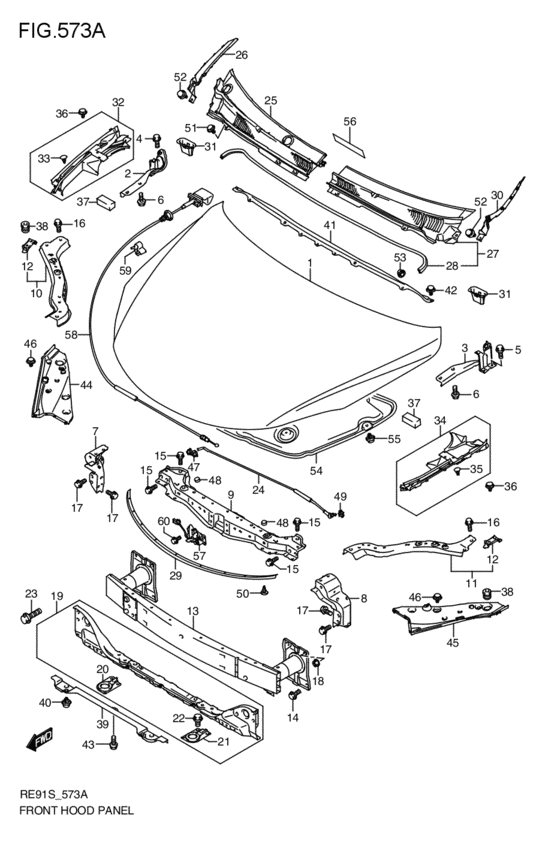

front hood (2009-06-01~) 50
| # | OEM | Part name |
|---|---|---|
| 1 | 57300-57810-000 | PANEL SET,FRONT HOOD |
| 2 | 57410-57L00-000 | HINGE,FR HOOD,R |
| 3 | 57420-57L00-000 | HINGE,FR HOOD,L |
| 4 | 01550-0612A-000 | Bolt |
| 6 | 01551-0820A-000 | Bolt |
| 7 | 58110-57L00-000 | BRACE,LAMP SUPPORT,R |
| 8 | 58120-57L00-000 | BRACE,LAMP SUPPORT,L |
| 9 | 58230-57L00-000 | MEMBER,HOOD LOCK |
| 10 | 58250-57L00-000 | MEMBER,LAMP SUPPORT,R |
| 11 | 58260-57L00-000 | MEMBER,LAMP SUPPORT,L |
| 12 | 58252-58J00-000 | BRACKET,FR FENDER FR |
| 13 | 58270-57L00-000 | MEMBER,FR BUMPER |
| 18 | 08316-1008A-000 | NUT - Nut, idle gear shaft |
| 19 | 71100-57L00-000 | MEMBER,RDTR SPRT |
| 20 | 71131-57L00-000 | BRACKET,RDTR,R |
| 21 | 71132-57L00-000 | BRACKET,RDTR,L |
| 22 | 01550-1016A-000 | Bolt - Plug, oil gallery |
| 23 | 01550-1240A-000 | Bolt |
| 24 | 72310-57L00-000 | STAY,FRONT HOOD |
| 25 | 72330-57L00-5PK | GARNISH ASSY,COWL TOP,R |
| 26 | 72332-57L00-5PK | GARNISH,COWL TOP SIDE,R |
| 27 | 72340-57L00-5PK | GARNISH ASSY,COWL TOP,L |
| 28 | 72333-57L00-000 | SEAL,HOOD RR |
| 29 | 72341-75H00-000 | SEAL,HOOD RR |
| 30 | 72342-57L00-5PK | GARNISH,COWL TOP SIDE,L |
| 31 | 72355-57L00-000 | COVER,COWL DRAIN |
| 32 | 72360-57L00-000 | COVER,FR FENDER FR,R |
| 33 | 09409-05308-5PK | CLIP(BLACK) |
| 34 | 72370-57L00-000 | COVER,FR FENDER FR,L |
| 36 | 09409-08327-000 | CLIP |
| 37 | 72365-57L00-000 | CUSHION,COWL SIDE |
| 38 | 72372-82000-000 | CUSHION,BACK DR SIDE |
| 39 | 72387-57L00-000 | SHROUD,RADIATOR LOWER |
| 41 | 72410-57L00-000 | PANEL,COWL FRONT |
| 43 | 02162-0616B-000 | SCREW - Bolt, adjust |
| 44 | 72421-57L00-000 | COVER,HEAD LAMP,R |
| 45 | 72422-57L00-000 | COVER,HEAD LAMP,L |
| 47 | 09209-14001-000 | LINKAGE |
| 48 | 09321-10023-000 | CUSHION |
| 49 | 09403-07333-000 | CLAMP |
| 53 | 08316-1006A-000 | NUT |
| 54 | 72440-57L00-000 | Silencer,front hood |
| 54 | 72440-57L01-000 | SILENCER,FRONT HOOD |
| 55 | 09409-07340-000 | CLIP |
| 56 | 75241-57L00-000 | SHEET,COWL UPPER PANEL |
| 57 | 82110-57L20-000 | LATCH,HOOD |
| 58 | 82160-57L00-000 | CABLE,HOOD LATCH RELEASE |
| 58 | 82160-57L01-000 | CABLE,HOOD LATCH RELEASE |
| 59 | 09403-04401-000 | CLAMP |
| 60 | 02162-0616A-000 | SCREW |
| OEM | Part name | Category |
|---|---|---|
| 01550-0612A-000 | Bolt | front hood (2009-06-01~) |
| 01550-1016A-000 | Bolt - Plug, oil gallery | front hood (2009-06-01~) |
| 01550-1240A-000 | Bolt | front hood (2009-06-01~) |
| 01551-0820A-000 | Bolt | front hood (2009-06-01~) |
| 02162-0616A-000 | SCREW | front hood (2009-06-01~) |
| 02162-0616B-000 | SCREW - Bolt, adjust | front hood (2009-06-01~) |
| 08316-1006A-000 | NUT | front hood (2009-06-01~) |
| 08316-1008A-000 | NUT - Nut, idle gear shaft | front hood (2009-06-01~) |
| 09209-14001-000 | LINKAGE | front hood (2009-06-01~) |
| 09321-10023-000 | CUSHION | front hood (2009-06-01~) |
| 09403-04401-000 | CLAMP | front hood (2009-06-01~) |
| 09403-07333-000 | CLAMP | front hood (2009-06-01~) |
| 09409-05308-5PK | CLIP(BLACK) | front hood (2009-06-01~) |
| 09409-07340-000 | CLIP | front hood (2009-06-01~) |
| 09409-08327-000 | CLIP | front hood (2009-06-01~) |
| 57300-57810-000 | PANEL SET,FRONT HOOD | front hood (2009-06-01~) |
| 57410-57L00-000 | HINGE,FR HOOD,R | front hood (2009-06-01~) |
| 57420-57L00-000 | HINGE,FR HOOD,L | front hood (2009-06-01~) |
| 58110-57L00-000 | BRACE,LAMP SUPPORT,R | front hood (2009-06-01~) |
| 58120-57L00-000 | BRACE,LAMP SUPPORT,L | front hood (2009-06-01~) |
| 58230-57L00-000 | MEMBER,HOOD LOCK | front hood (2009-06-01~) |
| 58250-57L00-000 | MEMBER,LAMP SUPPORT,R | front hood (2009-06-01~) |
| 58252-58J00-000 | BRACKET,FR FENDER FR | front hood (2009-06-01~) |
| 58260-57L00-000 | MEMBER,LAMP SUPPORT,L | front hood (2009-06-01~) |
| 58270-57L00-000 | MEMBER,FR BUMPER | front hood (2009-06-01~) |
| 71100-57L00-000 | MEMBER,RDTR SPRT | front hood (2009-06-01~) |
| 71131-57L00-000 | BRACKET,RDTR,R | front hood (2009-06-01~) |
| 71132-57L00-000 | BRACKET,RDTR,L | front hood (2009-06-01~) |
| 72310-57L00-000 | STAY,FRONT HOOD | front hood (2009-06-01~) |
| 72330-57L00-5PK | GARNISH ASSY,COWL TOP,R | front hood (2009-06-01~) |
| 72332-57L00-5PK | GARNISH,COWL TOP SIDE,R | front hood (2009-06-01~) |
| 72333-57L00-000 | SEAL,HOOD RR | front hood (2009-06-01~) |
| 72340-57L00-5PK | GARNISH ASSY,COWL TOP,L | front hood (2009-06-01~) |
| 72341-75H00-000 | SEAL,HOOD RR | front hood (2009-06-01~) |
| 72342-57L00-5PK | GARNISH,COWL TOP SIDE,L | front hood (2009-06-01~) |
| 72355-57L00-000 | COVER,COWL DRAIN | front hood (2009-06-01~) |
| 72360-57L00-000 | COVER,FR FENDER FR,R | front hood (2009-06-01~) |
| 72365-57L00-000 | CUSHION,COWL SIDE | front hood (2009-06-01~) |
| 72370-57L00-000 | COVER,FR FENDER FR,L | front hood (2009-06-01~) |
| 72372-82000-000 | CUSHION,BACK DR SIDE | front hood (2009-06-01~) |
| 72387-57L00-000 | SHROUD,RADIATOR LOWER | front hood (2009-06-01~) |
| 72410-57L00-000 | PANEL,COWL FRONT | front hood (2009-06-01~) |
| 72421-57L00-000 | COVER,HEAD LAMP,R | front hood (2009-06-01~) |
| 72422-57L00-000 | COVER,HEAD LAMP,L | front hood (2009-06-01~) |
| 72440-57L00-000 | Silencer,front hood | front hood (2009-06-01~) |
| 72440-57L01-000 | SILENCER,FRONT HOOD | front hood (2009-06-01~) |
| 75241-57L00-000 | SHEET,COWL UPPER PANEL | front hood (2009-06-01~) |
| 82110-57L20-000 | LATCH,HOOD | front hood (2009-06-01~) |
| 82160-57L00-000 | CABLE,HOOD LATCH RELEASE | front hood (2009-06-01~) |
| 82160-57L01-000 | CABLE,HOOD LATCH RELEASE | front hood (2009-06-01~) |
