| 02162-0612A-000 |
SCREW - Bolt, bracket |

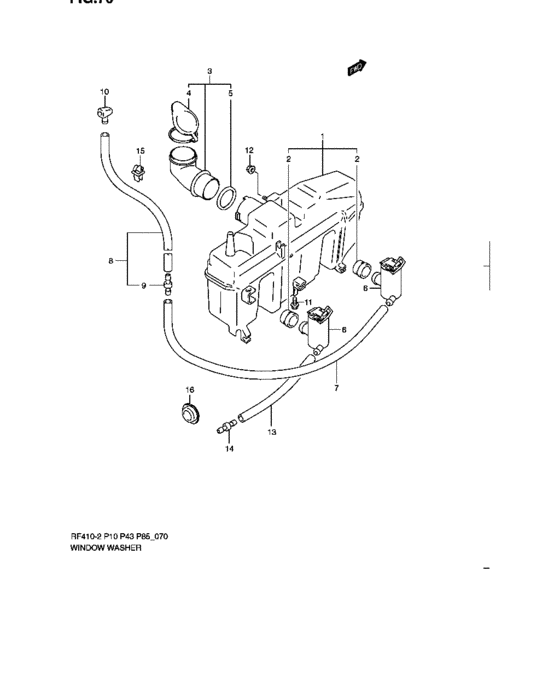

Window washer (WINDOW WASHER) |
| 08316-1006A-000 |
NUT |
Window washer (WINDOW WASHER) |
| 09250-M1601-500 |
Cap, washer hose hole |
Window washer (WINDOW WASHER) |
| 09403-07330-000 |
CLAMP |
Window washer (WINDOW WASHER) |
| 38402-M79F0-000 |
Pipe assy, washer inlet |
Window washer (WINDOW WASHER) |
| 38410-M6616-000 |
Pump assy, washer |
Window washer (WINDOW WASHER) |
| 38450-M76G0-000 |
Tank, washer |
Window washer (WINDOW WASHER) |
| 38450-M76G1-000 |
Tank, washer |
Window washer (WINDOW WASHER) |
| 38452-M79F0-000 |
Cap, washer tank |
Window washer (WINDOW WASHER) |
| 38453-M7500-000 |
Grommet |
Window washer (WINDOW WASHER) |
| 38454-M79F0-000 |
O ring, washer inlet |
Window washer (WINDOW WASHER) |
| 38480-76G00-000 |
NOZZLE,WASHER |
Window washer (WINDOW WASHER) |
| 38491-61A00-000 |
HOSE,WASHER L:1300 - Hose, washer (l:1300->80) |
Window washer (WINDOW WASHER) |
| 38496-56B00-000 |
CONNECTOR |
Window washer (WINDOW WASHER) |
| 38832-M76G0-100 |
Hose, washer |
Window washer (WINDOW WASHER) |
| 38833-79501-000 |
VALVE,WASHER HOSE |
Window washer (WINDOW WASHER) |
