RF410

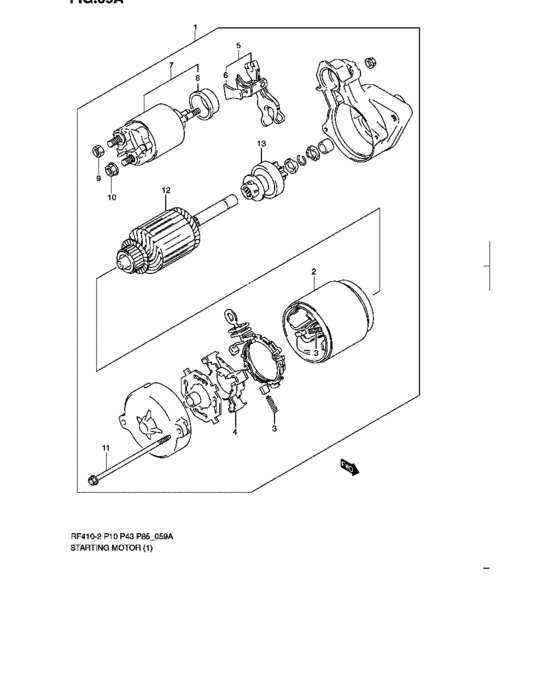

Starting motor (RF410) 18
| # | OEM | Part name |
|---|---|---|
| 1 | 31100-79F00-000 | Motor assy, starting |
| 2 | 31110-79F01-000 | Yoke assy, starter |
| 3 | 31135-51A10-000 | SPRING,BRUSH |
| 4 | 31175-51A10-000 | INSULATOR |
| 5 | 31191-85020-000 | LEVER ASSY |
| 6 | 31264-51A10-000 | SEAL,STARTER |
| 7 | 31220-52A20-000 | SWITCH ASSY,MAGNETIC |
| 7 | 31220-51A10-000 | SWITCH ASSY |
| 8 | 31221-51A10-000 | カバー,スイッチ |
| 9 | 31255-78210-000 | ナット |
| 9 | 08316-1006A-000 | NUT |
| 9 | 08316-1006B-000 | NUT |
| 10 | 31266-78221-000 | ナット |
| 10 | 08316-1008A-000 | NUT - Nut, idle gear shaft |
| 10 | 08316-1008B-000 | NUT |
| 11 | 31281-51A10-000 | Bolt |
| 12 | 31311-80110-000 | ARMATURE |
| 13 | 31320-70F00-000 | Clutch assy |
| OEM | Part name | Category |
|---|---|---|
| 08316-1006A-000 | NUT | Starting motor (RF410) |
| 08316-1006B-000 | NUT | Starting motor (RF410) |
| 08316-1008A-000 | NUT - Nut, idle gear shaft | Starting motor (RF410) |
| 08316-1008B-000 | NUT | Starting motor (RF410) |
| 31100-79F00-000 | Motor assy, starting | Starting motor (RF410) |
| 31110-79F01-000 | Yoke assy, starter | Starting motor (RF410) |
| 31135-51A10-000 | SPRING,BRUSH | Starting motor (RF410) |
| 31175-51A10-000 | INSULATOR | Starting motor (RF410) |
| 31191-85020-000 | LEVER ASSY | Starting motor (RF410) |
| 31220-51A10-000 | SWITCH ASSY | Starting motor (RF410) |
| 31220-52A20-000 | SWITCH ASSY,MAGNETIC | Starting motor (RF410) |
| 31221-51A10-000 | カバー,スイッチ | Starting motor (RF410) |
| 31255-78210-000 | ナット | Starting motor (RF410) |
| 31264-51A10-000 | SEAL,STARTER | Starting motor (RF410) |
| 31266-78221-000 | ナット | Starting motor (RF410) |
| 31281-51A10-000 | Bolt | Starting motor (RF410) |
| 31311-80110-000 | ARMATURE | Starting motor (RF410) |
| 31320-70F00-000 | Clutch assy | Starting motor (RF410) |
