RF410

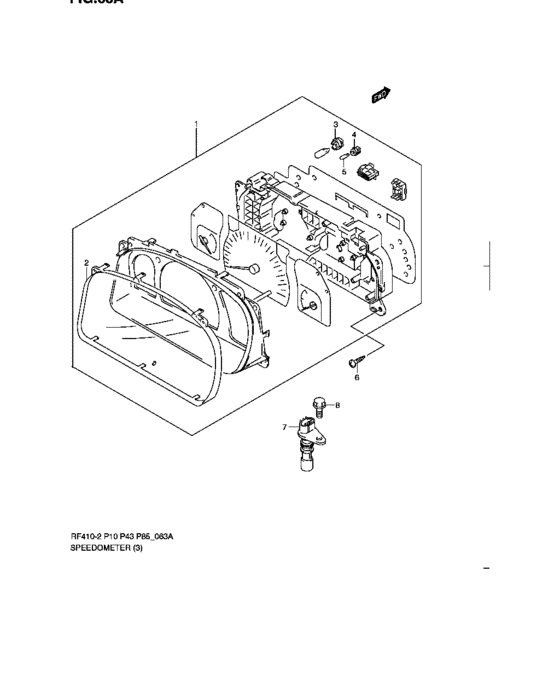

Speedometer 11
| # | OEM | Part name |
|---|---|---|
| 1 | 34101-M79F3-000 | Speedometer assy - Pricol |
| 1 | 34101-M79F4-000 | Speedometer assy - Jns |
| 2 | 34111-M79F0-000 | Glass, meter window - Pricol |
| 2 | 34111-M79F6-000 | Glass, meter window - Jns |
| 3 | 34160-M71F2-000 | Lamp holder - Pricol |
| 3 | 34160-M79F6-000 | Lamp holder - Jns |
| 4 | 34170-M79F6-000 | Lamp holder - Jns |
| 5 | 09471-M1205-500 | Bulb - 14v,1.4w,t5 |
| 6 | 03541-M0520-A00 | Screw |
| 7 | 34960-76G00-000 | SENSOR ASSY,SPEED |
| 8 | 01550-0616A-000 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 01550-0616A-000 | Bolt | Speedometer |
| 03541-M0520-A00 | Screw | Speedometer |
| 09471-M1205-500 | Bulb - 14v,1.4w,t5 | Speedometer |
| 34101-M79F3-000 | Speedometer assy - Pricol | Speedometer |
| 34101-M79F4-000 | Speedometer assy - Jns | Speedometer |
| 34111-M79F0-000 | Glass, meter window - Pricol | Speedometer |
| 34111-M79F6-000 | Glass, meter window - Jns | Speedometer |
| 34160-M71F2-000 | Lamp holder - Pricol | Speedometer |
| 34160-M79F6-000 | Lamp holder - Jns | Speedometer |
| 34170-M79F6-000 | Lamp holder - Jns | Speedometer |
| 34960-76G00-000 | SENSOR ASSY,SPEED | Speedometer |
