Search › Model › RF410
RF410

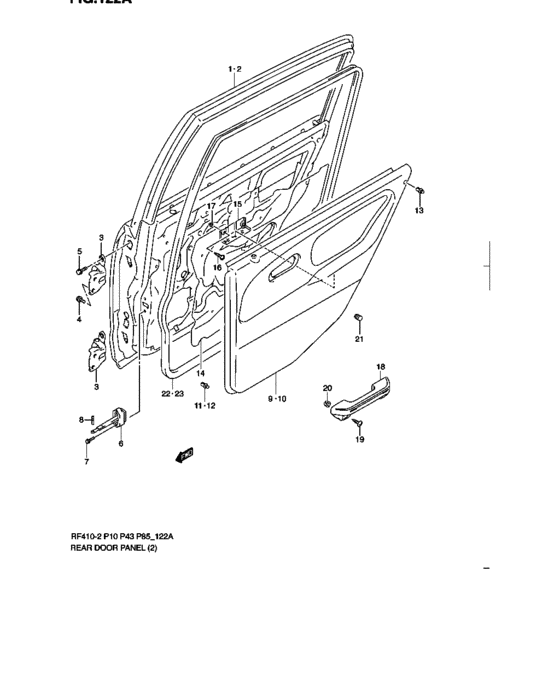

Rear door panel 17
| # | OEM | Part name |
|---|---|---|
| 1 | 68003-M79G0-000 | Panel assy, rear door rh |
| 2 | 68004-M79G0-000 | Panel assy, rear door lh |
| 3 | 69410-M77G0-000 | Hinge, rear door |
| 4 | 01550-M0820-A00 | Bolt, compressor clamp |
| 6 | 81830-M53E5-000 | Stop, door open |
| 7 | 01550-M0620-A00 | Bolt |
| 8 | 81831-70B00-000 | PIN,DOOR OPEN STOPPER BODY |
| 11 | 83799-M79GA-000 | Clip |
| 12 | 09409-M0832-000 | Clip |
| 14 | 83913-M79GA-000 | Cover, door sealing |
| 15 | 83775-M79GA-000 | Bracket, door trim |
| 16 | 03241-M0612-A00 | Screw |
| 17 | 09148-M0600-700 | Nut, license plate |
| 19 | 03241-M0620-A00 | Screw |
| 21 | 82711-M56B0-000 | Stopper, door |
| 22 | 84661-M77G0-000 | Weatherstrip, door opening rh |
| 23 | 84671-M77G0-000 | Weatherstrip, door opening lh |
| OEM | Part name | Category |
|---|---|---|
| 01550-M0620-A00 | Bolt | Rear door panel |
| 01550-M0820-A00 | Bolt, compressor clamp | Rear door panel |
| 03241-M0612-A00 | Screw | Rear door panel |
| 03241-M0620-A00 | Screw | Rear door panel |
| 09148-M0600-700 | Nut, license plate | Rear door panel |
| 09409-M0832-000 | Clip | Rear door panel |
| 68003-M79G0-000 | Panel assy, rear door rh | Rear door panel |
| 68004-M79G0-000 | Panel assy, rear door lh | Rear door panel |
| 69410-M77G0-000 | Hinge, rear door | Rear door panel |
| 81830-M53E5-000 | Stop, door open | Rear door panel |
| 81831-70B00-000 | PIN,DOOR OPEN STOPPER BODY | Rear door panel |
| 82711-M56B0-000 | Stopper, door | Rear door panel |
| 83775-M79GA-000 | Bracket, door trim | Rear door panel |
| 83799-M79GA-000 | Clip | Rear door panel |
| 83913-M79GA-000 | Cover, door sealing | Rear door panel |
| 84661-M77G0-000 | Weatherstrip, door opening rh | Rear door panel |
| 84671-M77G0-000 | Weatherstrip, door opening lh | Rear door panel |
