Search › Model › RF410
RF410

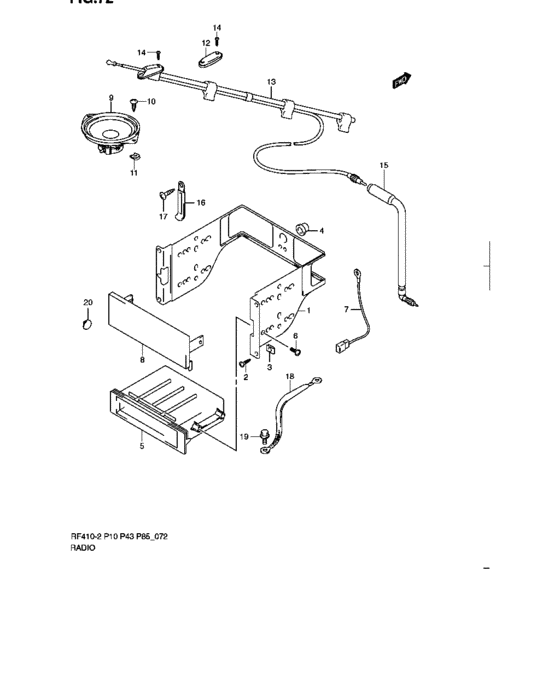

Radio (RADIO) 20
| # | OEM | Part name |
|---|---|---|
| 1 | 39321-M65D0-000 | Bracket, tuner |
| 2 | 03241-M0516-300 | Screw |
| 3 | 09148-05045-000 | NUT |
| 4 | 34955-M60E0-000 | Bush |
| 5 | 39182-M70E2-100 | Pocket, tuner |
| 6 | 03241-M0512-300 | Screw |
| 7 | 39192-M76G1-000 | Wire, tuner ground no.2 |
| 8 | 39161-M74G0-000 | Cover, radio hole |
| 9 | 39102-70B50-000 | Speaker assy, front |
| 9 | 39102-60F00-000 | SPEAKER ASSY |
| 10 | 03541-0512A-000 | SCREW |
| 12 | 39262-M76G0-000 | Cover, antenna hole |
| 13 | 39250-M70F6-000 | Antenna assy |
| 13 | 39250-M70FA-100 | Antenna assy |
| 14 | 09125-04003-000 | Screw |
| 15 | 39271-M75F0-000 | Feeder, antenna |
| 16 | 09404-M0643-100 | Clamp |
| 17 | 03541-M0512-A00 | Screw |
| 18 | 39312-M8202-000 | Wire, noise suppressor |
| 19 | 09115-06005-000 | BOLT(6X16) |
| OEM | Part name | Category |
|---|---|---|
| 03241-M0512-300 | Screw | Radio (RADIO) |
| 03241-M0516-300 | Screw | Radio (RADIO) |
| 03541-0512A-000 | SCREW | Radio (RADIO) |
| 03541-M0512-A00 | Screw | Radio (RADIO) |
| 09115-06005-000 | BOLT(6X16) | Radio (RADIO) |
| 09125-04003-000 | Screw | Radio (RADIO) |
| 09148-05045-000 | NUT | Radio (RADIO) |
| 09404-M0643-100 | Clamp | Radio (RADIO) |
| 34955-M60E0-000 | Bush | Radio (RADIO) |
| 39102-60F00-000 | SPEAKER ASSY | Radio (RADIO) |
| 39102-70B50-000 | Speaker assy, front | Radio (RADIO) |
| 39161-M74G0-000 | Cover, radio hole | Radio (RADIO) |
| 39182-M70E2-100 | Pocket, tuner | Radio (RADIO) |
| 39192-M76G1-000 | Wire, tuner ground no.2 | Radio (RADIO) |
| 39250-M70F6-000 | Antenna assy | Radio (RADIO) |
| 39250-M70FA-100 | Antenna assy | Radio (RADIO) |
| 39262-M76G0-000 | Cover, antenna hole | Radio (RADIO) |
| 39271-M75F0-000 | Feeder, antenna | Radio (RADIO) |
| 39312-M8202-000 | Wire, noise suppressor | Radio (RADIO) |
| 39321-M65D0-000 | Bracket, tuner | Radio (RADIO) |
