| 01550-M0816-A00 |
Bolt |

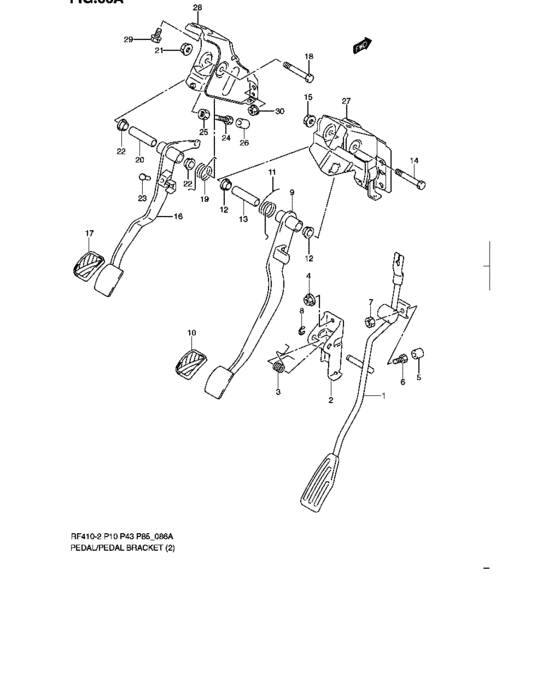

Pedal/pedal bracket (MT:) |
| 08310-M0006-A00 |
Nut |
Pedal/pedal bracket (MT:) |
| 08316-M1010-A00 |
Nut |
Pedal/pedal bracket (MT:) |
| 08332-M1107-A00 |
E ring |
Pedal/pedal bracket (MT:) |
| 09100-M0615-000 |
Bolt - 6x31 |
Pedal/pedal bracket (MT:) |
| 09159-06076-000 |
NUT |
Pedal/pedal bracket (MT:) |
| 09159-08135-000 |
NUT |
Pedal/pedal bracket (MT:) |
| 09251-M0500-700 |
Cap |
Pedal/pedal bracket (MT:) |
| 09307-13005-000 |
BUSH - Bushing |
Pedal/pedal bracket (MT:) |
| 09307-M1300-500 |
Bushing |
Pedal/pedal bracket (MT:) |
| 09321-M0602-600 |
Cushion |
Pedal/pedal bracket (MT:) |
| 49410-M76G1-000 |
Pedal, accelerator |
Pedal/pedal bracket (MT:) |
| 49491-M76F0-000 |
Spring |
Pedal/pedal bracket (MT:) |
| 49510-80G50-000 |
BRACKET,ACCELERATOR PEDAL |
Pedal/pedal bracket (MT:) |
| 49610-M84G0-000 |
Pedal, brake |
Pedal/pedal bracket (MT:) |
| 49691-54C00-000 |
SPRING,BRAKE PEDAL |
Pedal/pedal bracket (MT:) |
| 49710-M76G2-000 |
Bracket, brake pedal |
Pedal/pedal bracket (MT:) |
| 49720-M84G0-000 |
Bracket, clutch pedal |
Pedal/pedal bracket (MT:) |
| 49751-58J00-000 |
PAD,PEDAL |
Pedal/pedal bracket (MT:) |
| 49751-58J20-000 |
PAD,PEDAL |
Pedal/pedal bracket (MT:) |
| 49810-M76G0-000 |
Pedal, clutch |
Pedal/pedal bracket (MT:) |
| 49871-M80F0-000 |
Spacer, pedal shaft |
Pedal/pedal bracket (MT:) |
| 49881-M75J0-000 |
Bolt, clutch pedal shaft |
Pedal/pedal bracket (MT:) |
| 49891-M50E0-000 |
Spring, clutch pedal |
Pedal/pedal bracket (MT:) |
