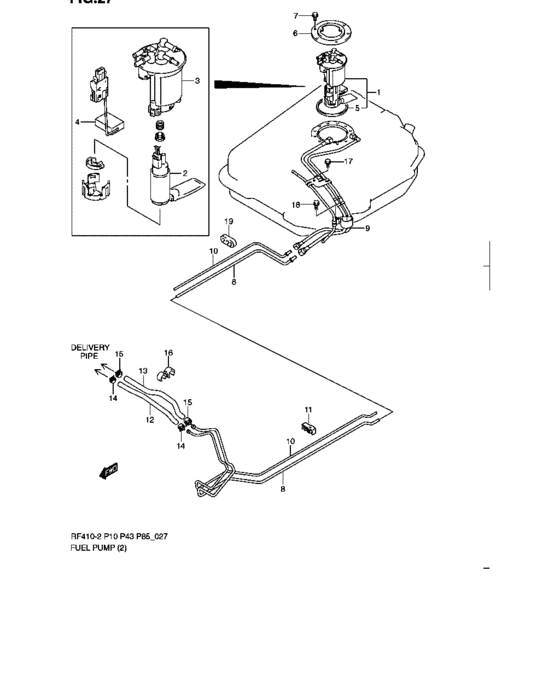

Fuel Pump (RF410)
17
| # | OEM | Part name |
|---|
| 1 |
15100-M79GA-200 |
Pump assy, fuel |
| 2 |
15110-M79GA-100 |
Pump, fuel |
| 3 |
15310-M79G0-100 |
Filter, fuel |
| 4 |
34810-M79F0-000 |
Gauge, fuel level |
| 5 |
15111-50G01-000 |
GASKET,FUEL PUMP |
| 6 |
15121-M50G0-000 |
Plate |
| 7 |
01550-0610A-000 |
Bolt |
| 8 |
15811-M79GA-000 |
Pipe, fuel |
| 9 |
15820-79GA1-000 |
PIPE,TANK SIDE |
| 10 |
15861-M79GA-000 |
Pipe, fuel return |
| 11 |
15893-M76GA-000 |
Clamp, fuel pipe |
| 14 |
09401-10409-000 |
CLIP |
| 15 |
09401-13419-000 |
CLIP |
| 16 |
09408-M0012-100 |
Clamp |
| 17 |
01550-0612A-000 |
Bolt |
| 18 |
01560-0616A-000 |
Bolt |
| 19 |
15438-M76G0-000 |
Cushion, fuel pipe |
| OEM |
Part name |
Category |
| 01550-0610A-000 |
Bolt |
Fuel Pump (RF410) |
| 01550-0612A-000 |
Bolt |
Fuel Pump (RF410) |
| 01560-0616A-000 |
Bolt |
Fuel Pump (RF410) |
| 09401-10409-000 |
CLIP |
Fuel Pump (RF410) |
| 09401-13419-000 |
CLIP |
Fuel Pump (RF410) |
| 09408-M0012-100 |
Clamp |
Fuel Pump (RF410) |
| 15100-M79GA-200 |
Pump assy, fuel |
Fuel Pump (RF410) |
| 15110-M79GA-100 |
Pump, fuel |
Fuel Pump (RF410) |
| 15111-50G01-000 |
GASKET,FUEL PUMP |
Fuel Pump (RF410) |
| 15121-M50G0-000 |
Plate |
Fuel Pump (RF410) |
| 15310-M79G0-100 |
Filter, fuel |
Fuel Pump (RF410) |
| 15438-M76G0-000 |
Cushion, fuel pipe |
Fuel Pump (RF410) |
| 15811-M79GA-000 |
Pipe, fuel |
Fuel Pump (RF410) |
| 15820-79GA1-000 |
PIPE,TANK SIDE |
Fuel Pump (RF410) |
| 15861-M79GA-000 |
Pipe, fuel return |
Fuel Pump (RF410) |
| 15893-M76GA-000 |
Clamp, fuel pipe |
Fuel Pump (RF410) |
| 34810-M79F0-000 |
Gauge, fuel level |
Fuel Pump (RF410) |
