Search › Model › RF410
RF410

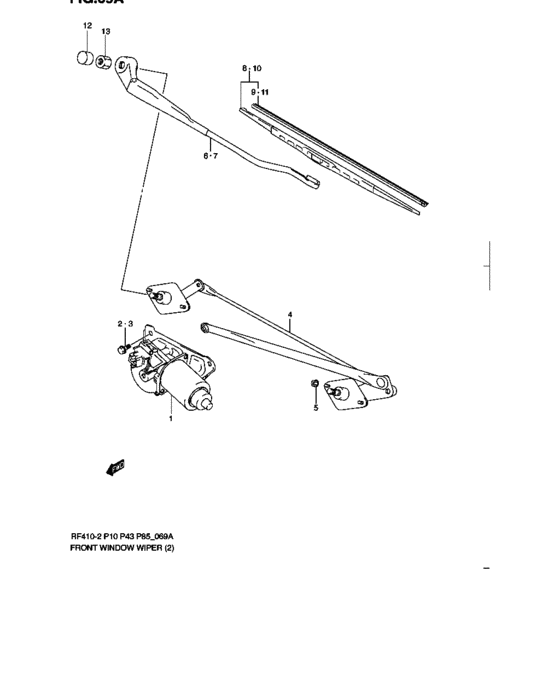

Front window wiper 13
| # | OEM | Part name |
|---|---|---|
| 1 | 38101-M76G0-000 | Motor/bracket assy, wiper |
| 2 | 09115-M0600-500 | Bolt, ground - 6x16 |
| 3 | 01580-M0612-A00 | Bolt - 6x12 |
| 4 | 38102-M76G0-000 | Link assy, wiper |
| 5 | 09159-06077-000 | NUT |
| 6 | 38310-M76G0-000 | Arm assy, wiper rh |
| 7 | 38330-M76G0-000 | Arm assy, wiper lh |
| 8 | 38340-M81A5-000 | Blade assy, wiper rh |
| 9 | 38346-M81A5-000 | Blade, rh |
| 10 | 38340-M75H0-000 | Blade assy, wiper lh |
| 11 | 38346-M75H0-000 | Blade, lh |
| 12 | 38315-M60B1-000 | Cap |
| 13 | 08310-M0008-A00 | Nut |
| OEM | Part name | Category |
|---|---|---|
| 01580-M0612-A00 | Bolt - 6x12 | Front window wiper |
| 08310-M0008-A00 | Nut | Front window wiper |
| 09115-M0600-500 | Bolt, ground - 6x16 | Front window wiper |
| 09159-06077-000 | NUT | Front window wiper |
| 38101-M76G0-000 | Motor/bracket assy, wiper | Front window wiper |
| 38102-M76G0-000 | Link assy, wiper | Front window wiper |
| 38310-M76G0-000 | Arm assy, wiper rh | Front window wiper |
| 38315-M60B1-000 | Cap | Front window wiper |
| 38330-M76G0-000 | Arm assy, wiper lh | Front window wiper |
| 38340-M75H0-000 | Blade assy, wiper lh | Front window wiper |
| 38340-M81A5-000 | Blade assy, wiper rh | Front window wiper |
| 38346-M75H0-000 | Blade, lh | Front window wiper |
| 38346-M81A5-000 | Blade, rh | Front window wiper |
