Search › Model › RF410
RF410

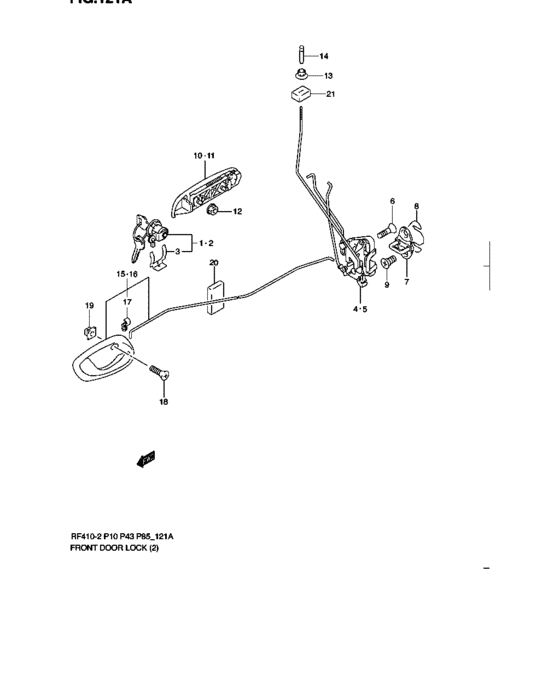

Front door lock 16
| # | OEM | Part name |
|---|---|---|
| 1 | 82270-M7981-000 | Cylinder, front door lock rh |
| 2 | 82280-M7981-000 | Cylinder, front door lock lh |
| 3 | 82291-M81A0-000 | Retainer, cylinder |
| 4 | 82201-M79G7-000 | Latch assy, front door rh |
| 5 | 82202-M79G7-000 | Latch assy, front door lh |
| 6 | 09137-06025-000 | SCREW(6X16) |
| 7 | 82610-M70F0-000 | Striker, door latch |
| 8 | 78199-M7800-000 | Spacer |
| 9 | 09137-08004-000 | SCREW(8X18) |
| 9 | 09137-08011-000 | SCREW(8X18) |
| 12 | 08316-M1006-A00 | Nut |
| 17 | 83116-M60A0-000 | Snap, door inside handle |
| 18 | 03521-M0516-B00 | Screw |
| 19 | 83119-M60B0-000 | Nut, inside handle |
| 20 | 77591-M7500-000 | Pad, door inside handle |
| 21 | 83211-M76G0-000 | Pad |
| OEM | Part name | Category |
|---|---|---|
| 03521-M0516-B00 | Screw | Front door lock |
| 08316-M1006-A00 | Nut | Front door lock |
| 09137-06025-000 | SCREW(6X16) | Front door lock |
| 09137-08004-000 | SCREW(8X18) | Front door lock |
| 09137-08011-000 | SCREW(8X18) | Front door lock |
| 77591-M7500-000 | Pad, door inside handle | Front door lock |
| 78199-M7800-000 | Spacer | Front door lock |
| 82201-M79G7-000 | Latch assy, front door rh | Front door lock |
| 82202-M79G7-000 | Latch assy, front door lh | Front door lock |
| 82270-M7981-000 | Cylinder, front door lock rh | Front door lock |
| 82280-M7981-000 | Cylinder, front door lock lh | Front door lock |
| 82291-M81A0-000 | Retainer, cylinder | Front door lock |
| 82610-M70F0-000 | Striker, door latch | Front door lock |
| 83116-M60A0-000 | Snap, door inside handle | Front door lock |
| 83119-M60B0-000 | Nut, inside handle | Front door lock |
| 83211-M76G0-000 | Pad | Front door lock |
