Search › Model › RF410

RF410

Suzuki ALTO-A-STAR-CELERIO · 2,229 parts · 177 categories

2,229 items

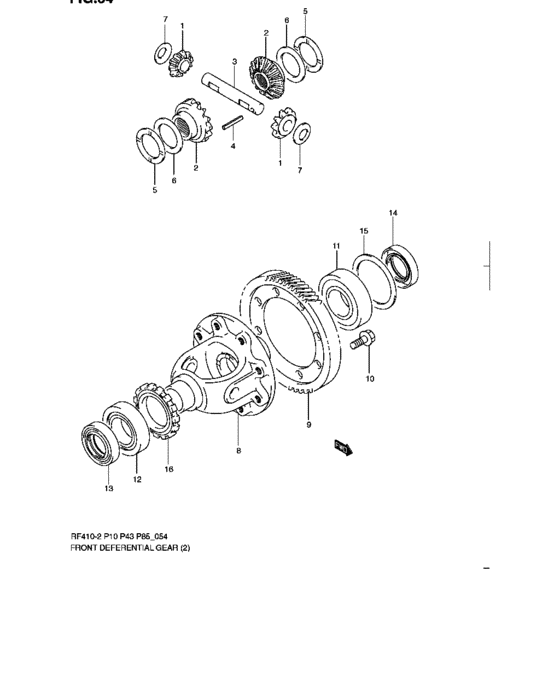

Front diff gear (AT) 27

#	OEM	Part name
1	27331-78FJ1-000	PINION,DIFFERENTIAL
2	27341-82001-000	Gear,differential
2	27341-76G12-000	GEAR,DIFF
3	27351-62B00-000	SHAFT,DIFF SIDE PINION
4	09205-05007-000	PIN,SPRING(5X36)
5	27361-62B00-000	WASHER,DIFF SIDE NO.2
6	09160-35002-000	WASHER(35X46X1)
6	09160-35003-000	WASHER(35X46X1.1)
6	09160-35004-000	WASHER(35X46X1.2)
6	09160-35006-000	WASHER(35X46X0.9)
6	09160-35008-000	WASHER(35X46X0.95) - Washer (35x46x0.95)
6	09160-35009-000	WASHER(35X46X1.05)
6	09160-35010-000	WASHER(35X46X1.15)
7	09164-15003-000	WASHER
8	27411-76G10-000	CASE,DIFF
9	27511-78G30-000	GEAR,FINAL
10	09103-10189-000	BOLT(10X23) - Bolt, starter one way clutch
11	09262-35058-000	BEARING(35X72X17)
12	09262-35061-000	BEARING(35X62X14)
13	27431-73H10-000	SEAL,OIL
14	27431-80F00-000	Seal, diff side oil lh
14	27431-73H30-000	SEAL,OIL
15	27441-56E00-040	SHIM,DIFF SIDE
15	27441-56E00-050	SHIM,DIFF SIDE
15	27441-56E00-060	SHIM,DIFF SIDE
15	27441-56E00-070	SHIM,DIFF SIDE
16	26121-76G10-000	RING,EXCITER T:8 ID:45

OEM	Part name	Category
09103-10189-000	BOLT(10X23) - Bolt, starter one way clutch	Front diff gear (AT)
09160-35002-000	WASHER(35X46X1)	Front diff gear (AT)
09160-35003-000	WASHER(35X46X1.1)	Front diff gear (AT)
09160-35004-000	WASHER(35X46X1.2)	Front diff gear (AT)
09160-35006-000	WASHER(35X46X0.9)	Front diff gear (AT)
09160-35008-000	WASHER(35X46X0.95) - Washer (35x46x0.95)	Front diff gear (AT)
09160-35009-000	WASHER(35X46X1.05)	Front diff gear (AT)
09160-35010-000	WASHER(35X46X1.15)	Front diff gear (AT)
09164-15003-000	WASHER	Front diff gear (AT)
09205-05007-000	PIN,SPRING(5X36)	Front diff gear (AT)
09262-35058-000	BEARING(35X72X17)	Front diff gear (AT)
09262-35061-000	BEARING(35X62X14)	Front diff gear (AT)
26121-76G10-000	RING,EXCITER T:8 ID:45	Front diff gear (AT)
27331-78FJ1-000	PINION,DIFFERENTIAL	Front diff gear (AT)
27341-76G12-000	GEAR,DIFF	Front diff gear (AT)
27341-82001-000	Gear,differential	Front diff gear (AT)
27351-62B00-000	SHAFT,DIFF SIDE PINION	Front diff gear (AT)
27361-62B00-000	WASHER,DIFF SIDE NO.2	Front diff gear (AT)
27411-76G10-000	CASE,DIFF	Front diff gear (AT)
27431-73H10-000	SEAL,OIL	Front diff gear (AT)
27431-73H30-000	SEAL,OIL	Front diff gear (AT)
27431-80F00-000	Seal, diff side oil lh	Front diff gear (AT)
27441-56E00-040	SHIM,DIFF SIDE	Front diff gear (AT)
27441-56E00-050	SHIM,DIFF SIDE	Front diff gear (AT)
27441-56E00-060	SHIM,DIFF SIDE	Front diff gear (AT)
27441-56E00-070	SHIM,DIFF SIDE	Front diff gear (AT)
27511-78G30-000	GEAR,FINAL	Front diff gear (AT)
