Search › Model › RF410
RF410

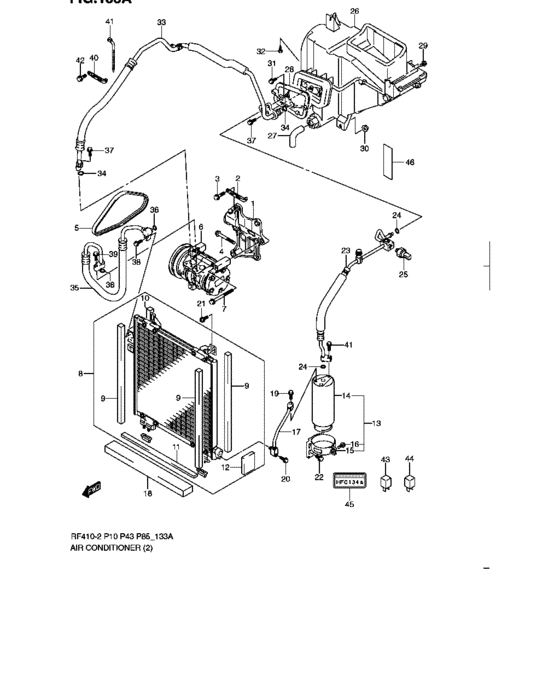

Air conditioner 41
| # | OEM | Part name |
|---|---|---|
| 1 | 95110-M79F0-000 | Bracket, compressor |
| 2 | 09404-M0841-800 | Clamp, compressor harness |
| 3 | 01550-M0830-A00 | Bolt, compressor bracket |
| 4 | 01550-M0860-A00 | Bolt, compressor bracket |
| 5 | 95141-M79F0-000 | V belt - L:750 |
| 6 | 95200-M79G0-000 | Compressor assy |
| 7 | 01550-M0875-A00 | Bolt |
| 8 | 95310-M79F0-100 | Condenser assy |
| 9 | 95815-M79F0-000 | Packing, condenser |
| 10 | 95816-M79F0-000 | Packing |
| 11 | 95817-M79F0-000 | Packing |
| 12 | 02112-M0525-A00 | Screw |
| 13 | 95339-M79F0-000 | Dryer set, receiver |
| 14 | 95330-M71B1-000 | Receiver |
| 15 | 95350-M79F0-000 | Holder, receiver |
| 16 | 02162-M0612-B00 | Screw |
| 17 | 95731-M79F0-000 | Pipe, condenser outlet |
| 18 | 95811-M79F0-000 | Packing |
| 19 | 01550-M0625-A00 | Bolt, discharge hose |
| 20 | 01550-M0630-A00 | Bolt, hose compressor |
| 21 | 01550-M0616-A00 | Bolt, expansion cover |
| 23 | 95732-M79G0-100 | Hose, receiver outlet |
| 24 | 95891-M50G0-000 | O ring |
| 25 | 95526-M50G0-000 | Switch, dual pressure |
| 26 | 95400-M79F0-100 | Cooling unit |
| 27 | 95481-M79F0-000 | Hose, drain |
| 28 | 95831-M79F0-000 | Cover, expansion |
| 29 | 09116-06167-000 | BOLT(6X20) - Bolt (6x20) |
| 30 | 09159-06081-000 | NUT |
| 32 | 03541-M0516-A00 | Screw, heater |
| 33 | 95710-M79G1-000 | Hose, suction |
| 34 | 95896-M50G0-000 | O ring - D:2.4,id:13.4 |
| 35 | 95720-M79G0-100 | Hose, discharge |
| 36 | 95895-M50G0-000 | O ring - D:2.4,id:10.8 |
| 37 | 01550-M0620-A00 | Bolt |
| 41 | 09407-M1440-300 | Clamp |
| 42 | 01550-M0820-A00 | Bolt, compressor clamp |
| 43 | 38860-M76F0-100 | Relay, air con |
| 44 | 38860-M79F0-000 | Relay, main |
| 45 | 95951-M72F0-000 | Plate, caution |
| 46 | 36930-M8201-000 | Packing |
| OEM | Part name | Category |
|---|---|---|
| 01550-M0616-A00 | Bolt, expansion cover | Air conditioner |
| 01550-M0620-A00 | Bolt | Air conditioner |
| 01550-M0625-A00 | Bolt, discharge hose | Air conditioner |
| 01550-M0630-A00 | Bolt, hose compressor | Air conditioner |
| 01550-M0820-A00 | Bolt, compressor clamp | Air conditioner |
| 01550-M0830-A00 | Bolt, compressor bracket | Air conditioner |
| 01550-M0860-A00 | Bolt, compressor bracket | Air conditioner |
| 01550-M0875-A00 | Bolt | Air conditioner |
| 02112-M0525-A00 | Screw | Air conditioner |
| 02162-M0612-B00 | Screw | Air conditioner |
| 03541-M0516-A00 | Screw, heater | Air conditioner |
| 09116-06167-000 | BOLT(6X20) - Bolt (6x20) | Air conditioner |
| 09159-06081-000 | NUT | Air conditioner |
| 09404-M0841-800 | Clamp, compressor harness | Air conditioner |
| 09407-M1440-300 | Clamp | Air conditioner |
| 36930-M8201-000 | Packing | Air conditioner |
| 38860-M76F0-100 | Relay, air con | Air conditioner |
| 38860-M79F0-000 | Relay, main | Air conditioner |
| 95110-M79F0-000 | Bracket, compressor | Air conditioner |
| 95141-M79F0-000 | V belt - L:750 | Air conditioner |
| 95200-M79G0-000 | Compressor assy | Air conditioner |
| 95310-M79F0-100 | Condenser assy | Air conditioner |
| 95330-M71B1-000 | Receiver | Air conditioner |
| 95339-M79F0-000 | Dryer set, receiver | Air conditioner |
| 95350-M79F0-000 | Holder, receiver | Air conditioner |
| 95400-M79F0-100 | Cooling unit | Air conditioner |
| 95481-M79F0-000 | Hose, drain | Air conditioner |
| 95526-M50G0-000 | Switch, dual pressure | Air conditioner |
| 95710-M79G1-000 | Hose, suction | Air conditioner |
| 95720-M79G0-100 | Hose, discharge | Air conditioner |
| 95731-M79F0-000 | Pipe, condenser outlet | Air conditioner |
| 95732-M79G0-100 | Hose, receiver outlet | Air conditioner |
| 95811-M79F0-000 | Packing | Air conditioner |
| 95815-M79F0-000 | Packing, condenser | Air conditioner |
| 95816-M79F0-000 | Packing | Air conditioner |
| 95817-M79F0-000 | Packing | Air conditioner |
| 95831-M79F0-000 | Cover, expansion | Air conditioner |
| 95891-M50G0-000 | O ring | Air conditioner |
| 95895-M50G0-000 | O ring - D:2.4,id:10.8 | Air conditioner |
| 95896-M50G0-000 | O ring - D:2.4,id:13.4 | Air conditioner |
| 95951-M72F0-000 | Plate, caution | Air conditioner |
