RF308

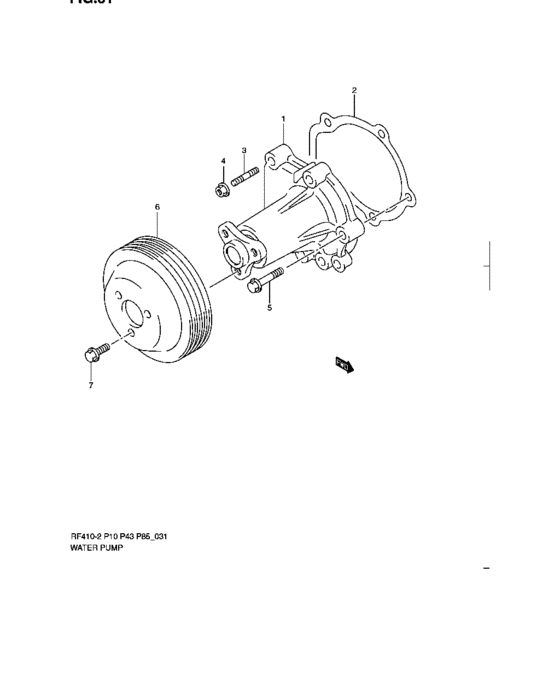

Water pump (WATER PUMP) 7
| # | OEM | Part name |
|---|---|---|
| 1 | 17400-M79F0-000 | Pump Assy, Water |
| 2 | 17431-M7300-100 | Gasket |
| 3 | 01411-0625A-000 | BOLT,STUD |
| 4 | 08316-1006A-000 | NUT |
| 5 | 01550-0630A-000 | Bolt |
| 6 | 17511-M79F0-000 | Pulley, water pump |
| 7 | 01550-0610A-000 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 01411-0625A-000 | BOLT,STUD | Water pump (WATER PUMP) |
| 01550-0610A-000 | Bolt | Water pump (WATER PUMP) |
| 01550-0630A-000 | Bolt | Water pump (WATER PUMP) |
| 08316-1006A-000 | NUT | Water pump (WATER PUMP) |
| 17400-M79F0-000 | Pump Assy, Water | Water pump (WATER PUMP) |
| 17431-M7300-100 | Gasket | Water pump (WATER PUMP) |
| 17511-M79F0-000 | Pulley, water pump | Water pump (WATER PUMP) |
