Search › Model › RF308
RF308

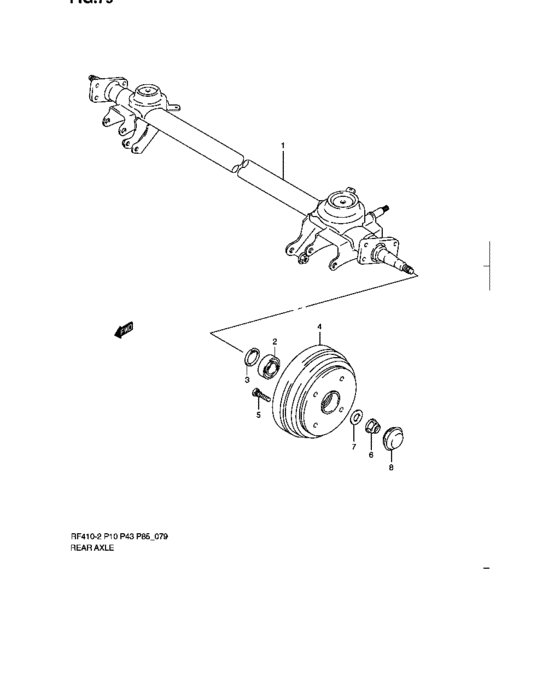

Rear axle (REAR AXLE) 11
| # | OEM | Part name |
|---|---|---|
| 1 | 46510-M79F0-000 | Axle, rear |
| 1 | 46510-M79F3-000 | Axle, rear |
| 2 | 46860-76G03-000 | Bearing,rear wheel |
| 2 | 46860-76G04-000 | BEARING,RR WHEEL |
| 3 | 08331-4152A-000 | Circlip, cntr, l |
| 3 | 08331-41529-000 | CIRCLIP |
| 4 | 43511-A76G0-100 | Drum, brake |
| 5 | 09119-M1200-900 | Bolt |
| 6 | 09159-M1800-800 | Nut |
| 7 | 09160-M1801-700 | Washer |
| 8 | 43241-M7900-200 | Cap, spindle |
| OEM | Part name | Category |
|---|---|---|
| 08331-41529-000 | CIRCLIP | Rear axle (REAR AXLE) |
| 08331-4152A-000 | Circlip, cntr, l | Rear axle (REAR AXLE) |
| 09119-M1200-900 | Bolt | Rear axle (REAR AXLE) |
| 09159-M1800-800 | Nut | Rear axle (REAR AXLE) |
| 09160-M1801-700 | Washer | Rear axle (REAR AXLE) |
| 43241-M7900-200 | Cap, spindle | Rear axle (REAR AXLE) |
| 43511-A76G0-100 | Drum, brake | Rear axle (REAR AXLE) |
| 46510-M79F0-000 | Axle, rear | Rear axle (REAR AXLE) |
| 46510-M79F3-000 | Axle, rear | Rear axle (REAR AXLE) |
| 46860-76G03-000 | Bearing,rear wheel | Rear axle (REAR AXLE) |
| 46860-76G04-000 | BEARING,RR WHEEL | Rear axle (REAR AXLE) |
