RF308

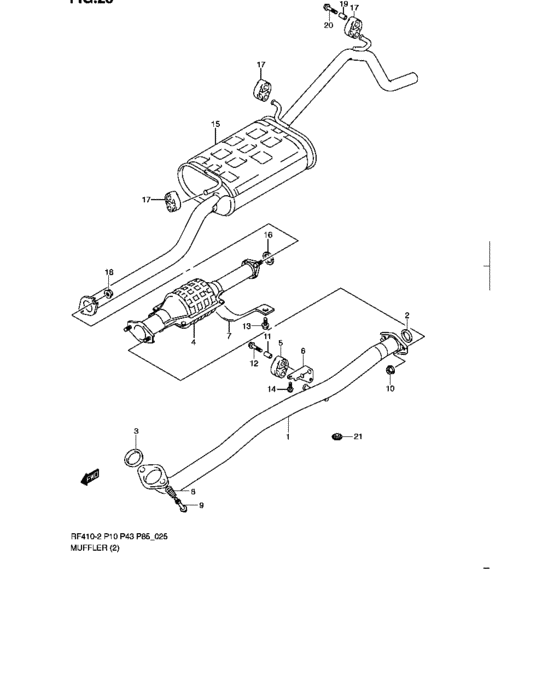

Muffler (RF410) 17
| # | OEM | Part name |
|---|---|---|
| 1 | 14190-M79GA-000 | Pipe, exhaust |
| 2 | 14182-M79F1-000 | Gasket |
| 3 | 14183-76A00-000 | RING,SEAL EXH PIPE |
| 4 | 14250-79GB0-000 | CASE,CATALYST |
| 5 | 14281-M60G0-100 | Mounting, muff |
| 6 | 14284-M76G0-000 | Bracket, exh pipe |
| 7 | 14286-M79GA-000 | Stopper, exh pipe |
| 8 | 14492-65G00-000 | SPRING,EXH PIPE |
| 9 | 09119-10041-000 | BOLT(10X65) |
| 10 | 09159-10049-000 | Nut |
| 10 | 09159-10102-000 | NUT |
| 11 | 09180-M0805-700 | Spacer - 8.2x12.5x23.5 |
| 12 | 01550-0835A-000 | Bolt |
| 13 | 01551-1016A-000 | Bolt |
| 14 | 02162-0612A-000 | SCREW - Bolt, bracket |
| 15 | 14300-M79GA-000 | Muffler |
| 21 | 09250-M2300-200 | Cap, oxygen sensor hole |
| OEM | Part name | Category |
|---|---|---|
| 01550-0835A-000 | Bolt | Muffler (RF410) |
| 01551-1016A-000 | Bolt | Muffler (RF410) |
| 02162-0612A-000 | SCREW - Bolt, bracket | Muffler (RF410) |
| 09119-10041-000 | BOLT(10X65) | Muffler (RF410) |
| 09159-10049-000 | Nut | Muffler (RF410) |
| 09159-10102-000 | NUT | Muffler (RF410) |
| 09180-M0805-700 | Spacer - 8.2x12.5x23.5 | Muffler (RF410) |
| 09250-M2300-200 | Cap, oxygen sensor hole | Muffler (RF410) |
| 14182-M79F1-000 | Gasket | Muffler (RF410) |
| 14183-76A00-000 | RING,SEAL EXH PIPE | Muffler (RF410) |
| 14190-M79GA-000 | Pipe, exhaust | Muffler (RF410) |
| 14250-79GB0-000 | CASE,CATALYST | Muffler (RF410) |
| 14281-M60G0-100 | Mounting, muff | Muffler (RF410) |
| 14284-M76G0-000 | Bracket, exh pipe | Muffler (RF410) |
| 14286-M79GA-000 | Stopper, exh pipe | Muffler (RF410) |
| 14300-M79GA-000 | Muffler | Muffler (RF410) |
| 14492-65G00-000 | SPRING,EXH PIPE | Muffler (RF410) |
