RF308

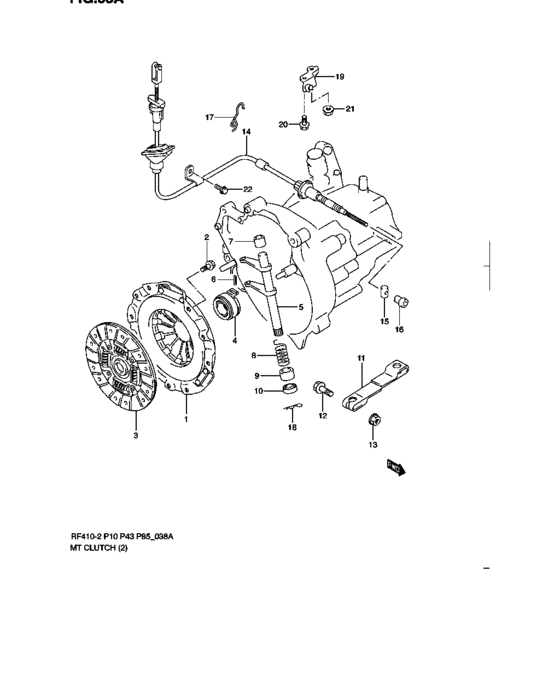

Mt clutch 21
| # | OEM | Part name |
|---|---|---|
| 1 | 22100-M79G4-000 | Cover assy, clutch |
| 2 | 09117-M0809-600 | Bolt - 8x16 |
| 3 | 22400-M79G4-000 | Disc, clutch |
| 4 | 09269-M2800-400 | Bearing - 28x58x22 |
| 5 | 23260-M73B0-100 | Shaft, clutch release |
| 6 | 09205-M0301-900 | Spring pin |
| 7 | 09300-M1401-600 | Bush - 14x18x20 |
| 8 | 23269-M73B0-000 | Spring, release shaft return |
| 9 | 09300-M1401-700 | Bush - 14x22x15 |
| 10 | 09284-M1400-300 | Seal, oil - 14x22x6 |
| 11 | 23266-M79F0-000 | Arm assy, clutch release |
| 12 | 01550-M0835-A00 | Bolt |
| 13 | 08316-M1008-A00 | Nut |
| 14 | 23710-75H00-000 | CABLE ASSY,CLUTCH |
| 15 | 09209-M1301-800 | Pin |
| 16 | 09150-M0601-000 | Nut |
| 17 | 23915-M73B0-200 | Clamp, clutch cable |
| 18 | 04111-M2020-600 | Clip |
| 19 | 23910-M79F0-000 | Bracket, clutch cable |
| 20 | 01550-M0820-A00 | Bolt, compressor clamp |
| 22 | 01550-M0612-A00 | Screw |
| OEM | Part name | Category |
|---|---|---|
| 01550-M0612-A00 | Screw | Mt clutch |
| 01550-M0820-A00 | Bolt, compressor clamp | Mt clutch |
| 01550-M0835-A00 | Bolt | Mt clutch |
| 04111-M2020-600 | Clip | Mt clutch |
| 08316-M1008-A00 | Nut | Mt clutch |
| 09117-M0809-600 | Bolt - 8x16 | Mt clutch |
| 09150-M0601-000 | Nut | Mt clutch |
| 09205-M0301-900 | Spring pin | Mt clutch |
| 09209-M1301-800 | Pin | Mt clutch |
| 09269-M2800-400 | Bearing - 28x58x22 | Mt clutch |
| 09284-M1400-300 | Seal, oil - 14x22x6 | Mt clutch |
| 09300-M1401-600 | Bush - 14x18x20 | Mt clutch |
| 09300-M1401-700 | Bush - 14x22x15 | Mt clutch |
| 22100-M79G4-000 | Cover assy, clutch | Mt clutch |
| 22400-M79G4-000 | Disc, clutch | Mt clutch |
| 23260-M73B0-100 | Shaft, clutch release | Mt clutch |
| 23266-M79F0-000 | Arm assy, clutch release | Mt clutch |
| 23269-M73B0-000 | Spring, release shaft return | Mt clutch |
| 23710-75H00-000 | CABLE ASSY,CLUTCH | Mt clutch |
| 23910-M79F0-000 | Bracket, clutch cable | Mt clutch |
| 23915-M73B0-200 | Clamp, clutch cable | Mt clutch |
