RF308

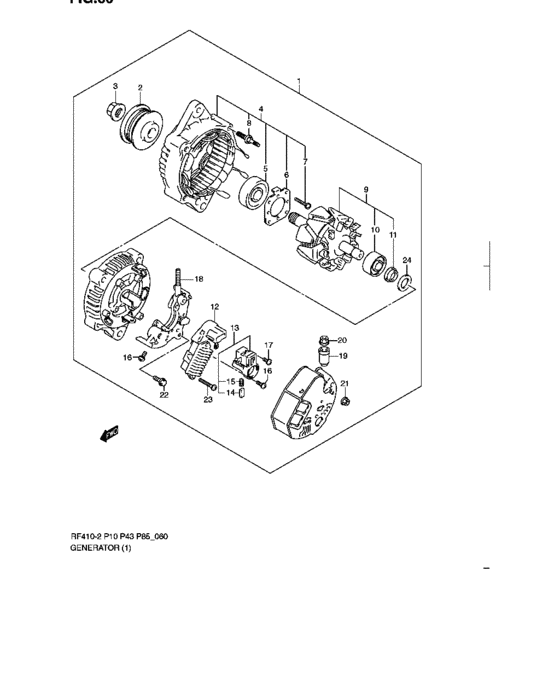

Generator (RF410) 25
| # | OEM | Part name |
|---|---|---|
| 1 | 31400-M79G0-000 | Generator assy |
| 2 | 31171-M60G1-000 | Pulley |
| 3 | 31775-M8651-000 | Nut |
| 4 | 31580-M60G1-200 | Frame assy, drive end |
| 5 | 31582-M60G1-300 | Bearing |
| 6 | 31585-M8211-100 | Retainer, bearing |
| 7 | 02112-0416A-000 | SCREW |
| 8 | 31587-M8211-000 | Bolt |
| 9 | 31710-M60G1-200 | Rotor assy |
| 10 | 31612-M60G1-300 | Bearing |
| 11 | 31613-M8261-000 | Cover, bearing |
| 12 | 32500-M80G1-000 | Regulator assy |
| 13 | 31656-M60G1-000 | Holder assy, brush |
| 14 | 31631-M8261-000 | Brush |
| 15 | 31635-M8261-000 | Spring, brush |
| 16 | 02112-0406B-000 | SCREW |
| 17 | 31517-M75F0-000 | Screw |
| 18 | 31621-M75F0-000 | Rectifier |
| 19 | 31514-M8261-000 | Insulator, terminal |
| 20 | 08316-1006A-000 | NUT |
| 21 | 08316-1005A-000 | NUT |
| 22 | 31599-M75F0-000 | Bolt |
| 23 | 02112-74253-000 | SCREW |
| 23 | 32642-80G10-000 | SCREW |
| 24 | 31615-M60G1-000 | Washer |
| OEM | Part name | Category |
|---|---|---|
| 02112-0406B-000 | SCREW | Generator (RF410) |
| 02112-0416A-000 | SCREW | Generator (RF410) |
| 02112-74253-000 | SCREW | Generator (RF410) |
| 08316-1005A-000 | NUT | Generator (RF410) |
| 08316-1006A-000 | NUT | Generator (RF410) |
| 31171-M60G1-000 | Pulley | Generator (RF410) |
| 31400-M79G0-000 | Generator assy | Generator (RF410) |
| 31514-M8261-000 | Insulator, terminal | Generator (RF410) |
| 31517-M75F0-000 | Screw | Generator (RF410) |
| 31580-M60G1-200 | Frame assy, drive end | Generator (RF410) |
| 31582-M60G1-300 | Bearing | Generator (RF410) |
| 31585-M8211-100 | Retainer, bearing | Generator (RF410) |
| 31587-M8211-000 | Bolt | Generator (RF410) |
| 31599-M75F0-000 | Bolt | Generator (RF410) |
| 31612-M60G1-300 | Bearing | Generator (RF410) |
| 31613-M8261-000 | Cover, bearing | Generator (RF410) |
| 31615-M60G1-000 | Washer | Generator (RF410) |
| 31621-M75F0-000 | Rectifier | Generator (RF410) |
| 31631-M8261-000 | Brush | Generator (RF410) |
| 31635-M8261-000 | Spring, brush | Generator (RF410) |
| 31656-M60G1-000 | Holder assy, brush | Generator (RF410) |
| 31710-M60G1-200 | Rotor assy | Generator (RF410) |
| 31775-M8651-000 | Nut | Generator (RF410) |
| 32500-M80G1-000 | Regulator assy | Generator (RF410) |
| 32642-80G10-000 | SCREW | Generator (RF410) |
