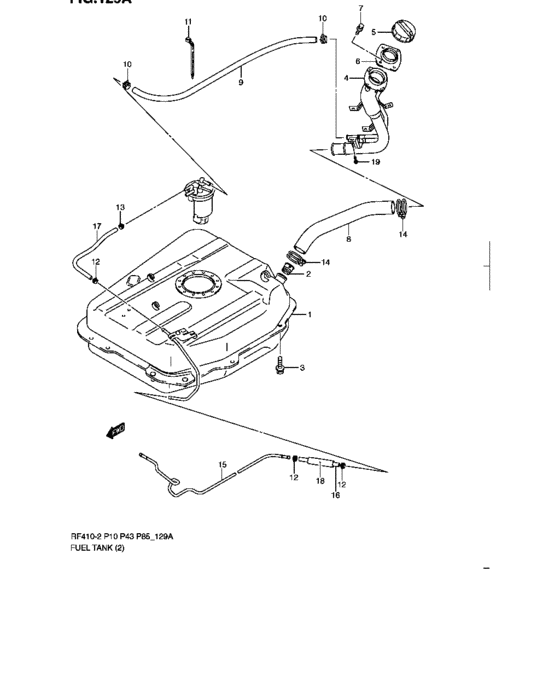

Fuel tank
20
| # | OEM | Part name |
|---|
| 1 |
89101-M79G2-100 |
Tank assy, fuel |
| 2 |
89270-M75F0-000 |
Valve, fuel tank inlet |
| 3 |
09118-M0816-100 |
Bolt - 8x25 |
| 4 |
89201-M79G0-100 |
Neck, fuel filler |
| 5 |
89260-50J00-000 |
CAP ASSY,FUEL FILLER |
| 6 |
89285-M75F0-000 |
Packing, fuel filler |
| 7 |
09116-05014-000 |
BOLT(5X20) |
| 8 |
89241-75F20-000 |
HOSE,FUEL TANK FILLER |
| 9 |
89292-79G00-000 |
HOSE,FUEL TANK BREATHER |
| 10 |
09401-M1640-700 |
Clip |
| 11 |
09407-M1940-100 |
Clamp |
| 12 |
09401-M1141-500 |
Clip |
| 13 |
09401-M1240-500 |
Clip, evap hose to unit |
| 14 |
09400-45311-000 |
CLAMP |
| 15 |
89483-M79F1-000 |
Pipe, fuel evaporator |
| 16 |
09355-54128-600 |
Hose,5.4x12.2x600 |
| 16 |
09355-56128-600 |
HOSE(5.6X12.4X600) |
| 17 |
89486-79G00-000 |
HOSE,UNIT TO PIPE |
| 18 |
89489-M79G0-000 |
Protector, evap hose |
| 19 |
09118-06106-000 |
BOLT(6X16) |
| OEM |
Part name |
Category |
| 09116-05014-000 |
BOLT(5X20) |
Fuel tank |
| 09118-06106-000 |
BOLT(6X16) |
Fuel tank |
| 09118-M0816-100 |
Bolt - 8x25 |
Fuel tank |
| 09355-54128-600 |
Hose,5.4x12.2x600 |
Fuel tank |
| 09355-56128-600 |
HOSE(5.6X12.4X600) |
Fuel tank |
| 09400-45311-000 |
CLAMP |
Fuel tank |
| 09401-M1141-500 |
Clip |
Fuel tank |
| 09401-M1240-500 |
Clip, evap hose to unit |
Fuel tank |
| 09401-M1640-700 |
Clip |
Fuel tank |
| 09407-M1940-100 |
Clamp |
Fuel tank |
| 89101-M79G2-100 |
Tank assy, fuel |
Fuel tank |
| 89201-M79G0-100 |
Neck, fuel filler |
Fuel tank |
| 89241-75F20-000 |
HOSE,FUEL TANK FILLER |
Fuel tank |
| 89260-50J00-000 |
CAP ASSY,FUEL FILLER |
Fuel tank |
| 89270-M75F0-000 |
Valve, fuel tank inlet |
Fuel tank |
| 89285-M75F0-000 |
Packing, fuel filler |
Fuel tank |
| 89292-79G00-000 |
HOSE,FUEL TANK BREATHER |
Fuel tank |
| 89483-M79F1-000 |
Pipe, fuel evaporator |
Fuel tank |
| 89486-79G00-000 |
HOSE,UNIT TO PIPE |
Fuel tank |
| 89489-M79G0-000 |
Protector, evap hose |
Fuel tank |
