Search › Model › RF308
RF308

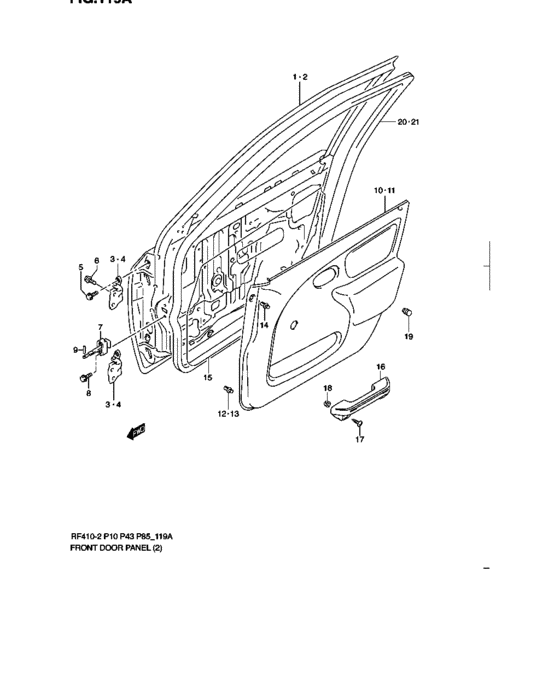

Front door panel 16
| # | OEM | Part name |
|---|---|---|
| 1 | 68001-M79G0-000 | Panel assy, front door rh |
| 2 | 68002-M79G0-000 | Panel assy, front door lh |
| 3 | 69310-M60G0-100 | Hinge, front door no.1 |
| 4 | 69320-M60G0-100 | Hinge, front door no.2 |
| 5 | 01550-M0820-A00 | Bolt, compressor clamp |
| 7 | 81810-M65D0-000 | Stop, door open |
| 8 | 01550-M0620-A00 | Bolt |
| 9 | 81831-70B00-000 | PIN,DOOR OPEN STOPPER BODY |
| 12 | 83799-M79GA-000 | Clip |
| 13 | 09409-M0832-000 | Clip |
| 15 | 83911-M79GA-000 | Cover, dr sealing |
| 17 | 03241-M0620-A00 | Screw |
| 18 | 09148-M0600-700 | Nut, license plate |
| 19 | 82711-M56B0-000 | Stopper, door |
| 20 | 84641-M77G0-000 | Weatherstrip, door opening rh |
| 21 | 84651-M77G0-000 | Weatherstrip, door opening lh |
| OEM | Part name | Category |
|---|---|---|
| 01550-M0620-A00 | Bolt | Front door panel |
| 01550-M0820-A00 | Bolt, compressor clamp | Front door panel |
| 03241-M0620-A00 | Screw | Front door panel |
| 09148-M0600-700 | Nut, license plate | Front door panel |
| 09409-M0832-000 | Clip | Front door panel |
| 68001-M79G0-000 | Panel assy, front door rh | Front door panel |
| 68002-M79G0-000 | Panel assy, front door lh | Front door panel |
| 69310-M60G0-100 | Hinge, front door no.1 | Front door panel |
| 69320-M60G0-100 | Hinge, front door no.2 | Front door panel |
| 81810-M65D0-000 | Stop, door open | Front door panel |
| 81831-70B00-000 | PIN,DOOR OPEN STOPPER BODY | Front door panel |
| 82711-M56B0-000 | Stopper, door | Front door panel |
| 83799-M79GA-000 | Clip | Front door panel |
| 83911-M79GA-000 | Cover, dr sealing | Front door panel |
| 84641-M77G0-000 | Weatherstrip, door opening rh | Front door panel |
| 84651-M77G0-000 | Weatherstrip, door opening lh | Front door panel |
